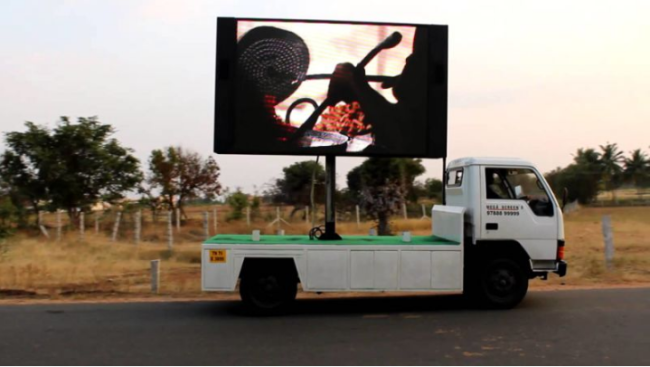

Noiseless Slim Outdoor Full Color Led Display Hd / Lifting Square Led Van Screens Wall
Noiseless Slim Outdoor Full Color Led Display Hd / Lifting Square Led Van Screens Wall
Why Choose Us
1. Competitive Price
We are middle-sized Chinese local factory, maybe you can see that from our so Chinese name of "SCX", unlike the internationalized name of foreign trade company. Besides, we control our cost very well and don't have huge management cost like top companies, so that we can give the real benefits to our customers.
2. Close Relationships with Raw Material Providers
For our bosses have been in the key positions at the top led display factory since 2009, we have very close and strategic relationship with the raw material providers, which support the stable quality of our products.
3. Quality Control
From raw materials to finished product, from design to produce, we control all steps, which are the guarantee of the quality and reliability.
Features:
1) Relatively low cost (ex-factory price)
2) Novel design, suitable for outdoor live performance
3) High brightness, high clarity of display image.
4) No flicker, no color block.
7) Quick and easy to install, 5 seconds/cabinet.
8) Up to 50 units in a row.
9) Quality Advantage: From material to finished product, from design to production, we control all the steps, which is the guarantee of quality and reliability.
Specifications :
| outdoor DIP P20 | |||||
| Resolution/mm | 20 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 2500/m² | ||||
| Module resolution | 16x8 | ||||
| Module size/mm | 320x160mm | ||||
| View distance | 14-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >7500cd/㎡ | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | static full color | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
Trade Terms:
1).Payment: T/T ,ususally 40% prepayment before production, 60% balance to be paid before delivering,it also change according to total quantity
2).Production lead time less 20 sqm: 8-15days, more than 50 sqm:30days
3).Sample can be deliveried within 3days
4).Shipping port: Shenzhen, Mainland China
5).Discounts are offered based on order quantities
6).MOQ:1 sqm/1pcs
