High Resolution P3 Full Color Advertising Led Screens Fixed Anti Corrosion Iron Cabinet
High Resolution P3 Full Color Advertising Led Screens Fixed Anti Corrosion Iron Cabinet indoor led advertising screen
Pixel Pitch | 3mm | Input Voltage | 5V |
Pixel Constitution | 1R1G1B | PCB Power | ≤50W |
Dimension | 192mm×192mm | Pixel Density | 111111/㎡ |
Actual Life | ≥100000 Hours | MTBF | ≥1000Hours |

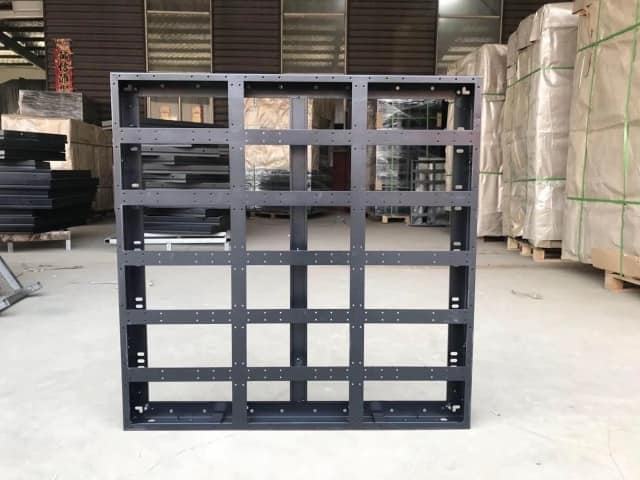

Cabinet Dimension | 576mm×576mm×130mm | Cabinet Material | Iron or Aluminum |
Cabinet Resolution | 192*192=36864 | Cabinet Area | 0.331776㎡ |
Max Power Consumption | 700W | Average Power Consumption | 270W |
Cabinet Weight | 30KG | Defense Rate | IP65 |
Brightness | ≥1000CD/㎡ | Brightness Homogeneity | ＞0.95 |
Viewing Angle-Horizontal | 140° | Viewing Angle-Vertical | 120° |
Horizontal Flatness | ＜1mm/㎡ | Vertical Flatness | ＜1mm/㎡ |
Max Power Consumption | ≤420W/㎡ | Average Power Consumption | ≤140W/㎡ |
Methods for Quality Assurance
a. Aging
1. 100% fully test Condition: 72 hours with 256 gray level
b. Vibration Testing
Condition: 3-5 min up and down in 5mm range

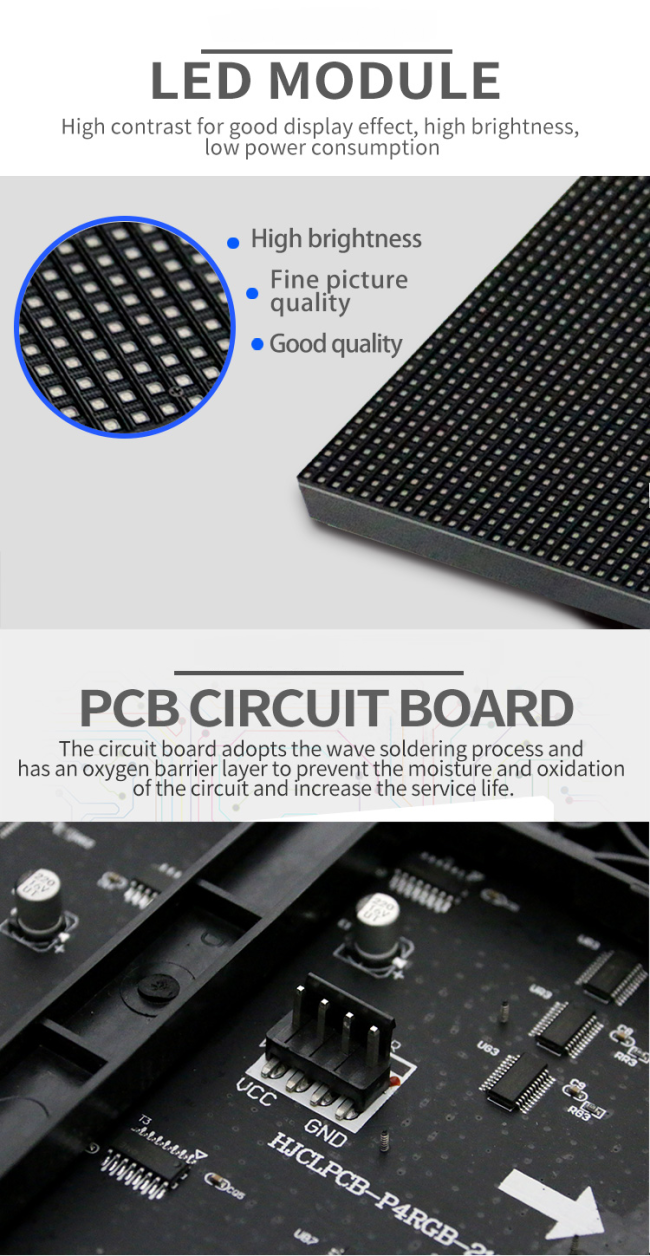

The epistar Led chip. with SMD and DIP Technology .
We adopt the epistar led chip from Taiwan,DIP and SMD led display module will be available

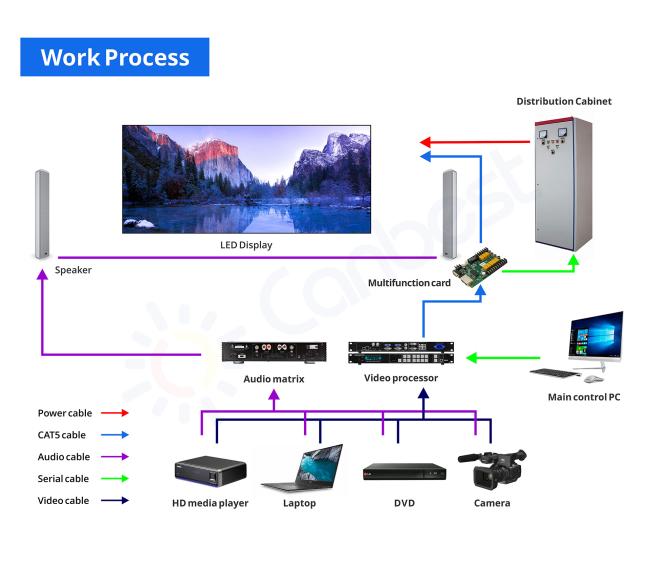

The wire or wireless controll system are available .( 3g and wifi controll will be welcome)
The steer consturction is very stable for led display,and you can purchase from your local market .

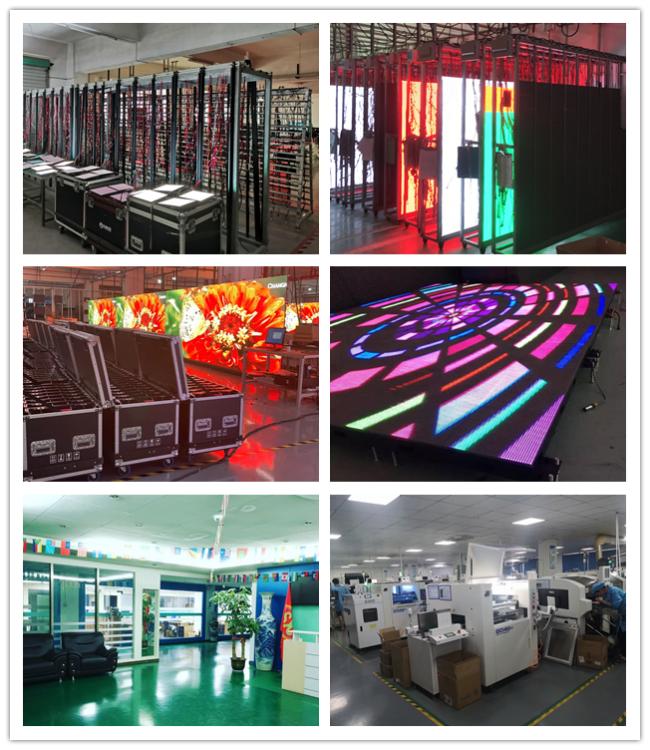

Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.
♦ FAQ
What kind of payment terms you can accept ?
We can accept T/T and Western Union.
What about your Led Display quality ?
Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of
our products continuity.
What is your delivery time ?
Within 7-35 days according to your area and quantity.
Is your LED display competitive ?
Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure
our led display’s competitiveness.
