Rental/Die Casting Aluminum Full Color Outdoor Advertising LED Display P1.667 LSN System IP34 Waterproof
Full Color P1.667Rental LED Display 200*150mm Module LSN System Epistar Chip
Specifications :
| Indoor P1.667 LED Display | |||||
| Resolution/mm | 1.667 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 360000/square meter | ||||
| Module resolution | 120x90 | ||||
| Module size/mm | 200x150 | ||||
| View distance | 14-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >1200cd/square meter | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/30 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
1.Except this model, are there any other models?
yes, For indoor led screen we have p2 p2.5 p3 p3.91 p4 p4.81 p5 p6 p10
For outdoor led screen we have p3.91 p4 p4.81 p5 p6 p8 p10
2.Are you factory? and your warranty?
We are a company with our own factory,and we have been in this field for more than 10 years;the warranty for 2 years and lifetime maintenance.
3.What's the function of your led screen?
It supports videos, flash, WAV/MIDI, PPT, images and so on
4.What's your delivery time?
Wthin 10-15 days after receiving deposit
5.What's your package and shipping way?
Goods are packed with wooden case or flight case; delivered by air or sea

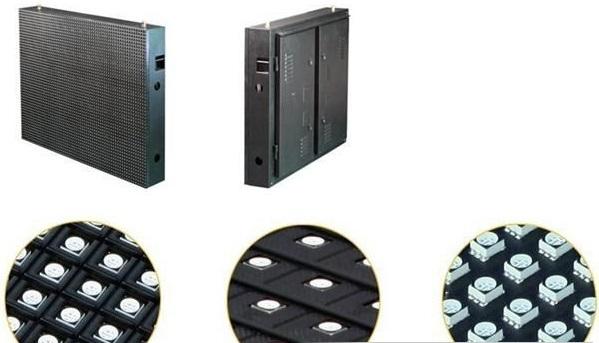

Product Details
1.High Resolution and Brightness
2.Low Power Consumption
3.Light Weight and Easy Move
Why choose us?
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.

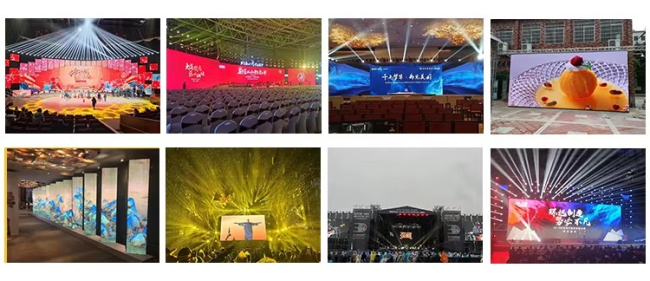

Applications:
1)Airport Full Color Indoor LED Dispalys
2)Train Station Indoor Full Color LED Displays
3)Entertainment Bar Indoor Full Color LED Screen
4)Statium Indoor Full Color LED Display
5)Museum Full Color Indoor LED Display
6)Car Exhibition LED Display
7)Conference Room Indoor Full Color LED Video Display
8)Shopping Mall Indoor Full Color LED Display
Welcome to inquire us and visit our website!!!
