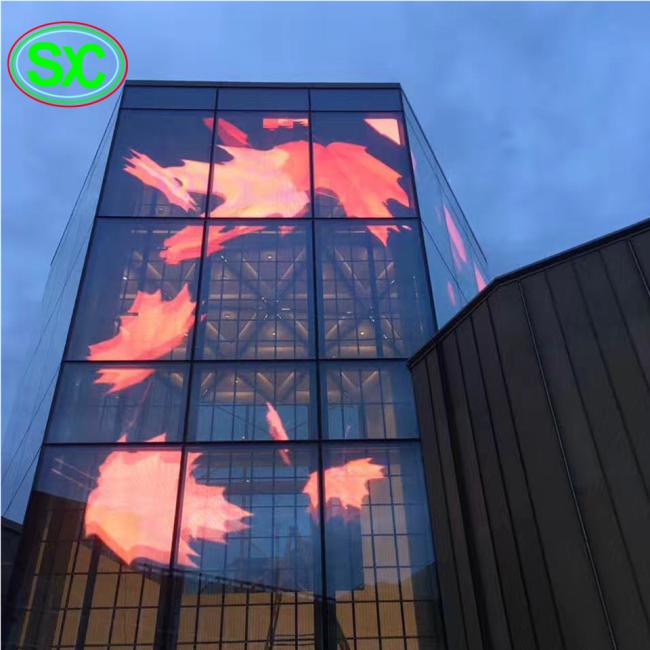

High Transparent LED Screen P10.41 Full Color For Shopping Mall Glass Facade

p10.41 full color high transparent LED Screen for Shopping mall glass facade

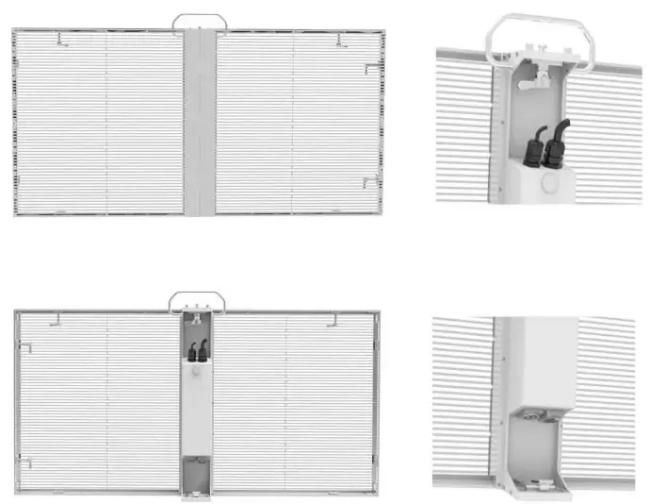

Advance of Die-casting transparent led screen

1) LED: well-known international brand, with wide viewing angle, high brightness, little attenuation, good heat dissipation, and vivid colors.

2) Driving display: famous brands such as, Taiwan MBI, chenkse Chenkse, avoidable the defective phenomena, such as dark bright, virtual light and so on.

3) Power supply: industrial-strength brand. The power t maximum power reserve of 20% the space, the range of voltage fluctuation is less 5%, high stability.

4) Connector: Aerial grade brands ensure the stable transmission of power and signal.

5) PCB Board: adopt 4-layer design.

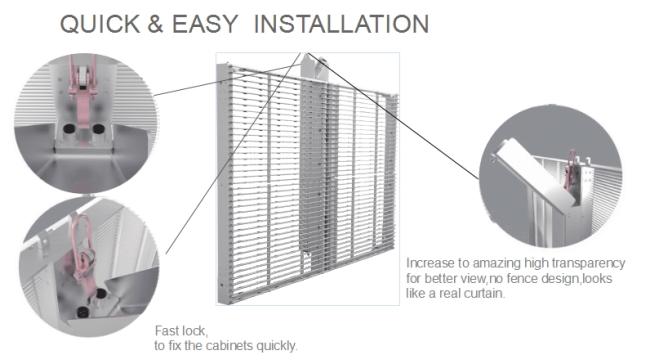

6) Easy installation:100 pieces of cabinets' installation can be finished in one hour by one person. The replacement of any cabinet can be done within 50 seconds.

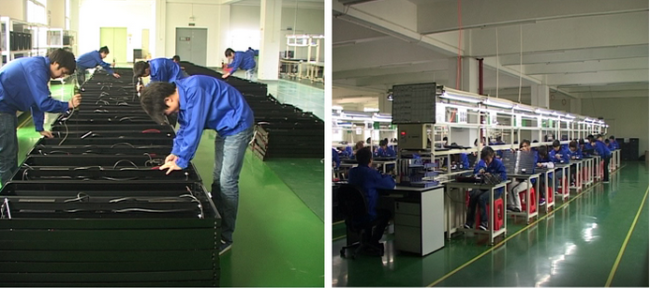

Shenzhen Shichuangxinke Electronics co., Ltd. is a best global supplier of LED display total solution, which is specializing in the R&A, production and market of LED display and LED lighting products. We are equipped with full series of automatic production line, including advanced manufacturing equipment and perfect testing device, which guarantee a monthly capacity of 800 square meters LED display.
Our R&A team possesses 14% of total staff and most of the developing engineers with more than10 years

experience in LED industry. Their market-oriented innovation keeps our leading position in this industry.

Quality is our company philosophy. We Insists to offer high quality and best service for our client, Our products has been approved by CCC,CE,FCC,Rohs and etc.Moreover, our products are exported to oversea markets around European countries and middle east area, such as the USA, Dubai, Russia, Sweden, Turkey, Poland,France, Israel, Lebanon, Spain and so on.

LED Module	Pixel Pitch			10.41mm

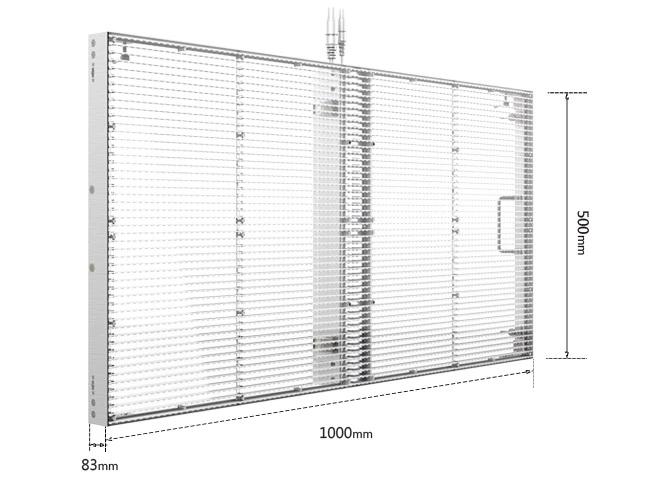

LED Cabinet	Cabinet Size			500mmX1000mm*80mm
	Cabinet Resolution			48pixels *96pixels
	Cabinets Material			Die casting Aluminum Cabinet
LED Display	Pixel Density			9216 pixels/sq.m
	Drive IC			MBI5124
	Power Supply			Series connection
	Brightness			>4200cd/sqm
	Display Color			16.7million
	Viewing Angle			110°(Horizontal),50°(Vertical)
	Best Viewing Distance			5m~100m
	Max Power Consumption			530w/sqm
	Average Power Consumption			212 w/sq.m
	Refresh Rate			16bit ≥2880; 14bit ≥4800; 10bit ≥9600
	Input Voltage			AC220V/50H or AC110V/60H
	Output Voltage			DC5V 60A/80A
	Grey Scale Levels			16bit
	Installation Way			Hanging / Stacking / Permanent Installation
	Drive IC			Taiwan MBI/Domestic High refresh rate IC(Optional)
	Life-span			100,000 hours
	Protection Level			IP30
	Failure percentage of leds			less than 0.0003
	Working Temperature			-10～40°C
	Drive Mode			1/4 scan constant current
	Working Humidity			10%~90%
	LED Encapsulation			Self-development Side view LED lamp
	Eliminate Ghost Line			Yes
	Working Voltage			DC5V
	weight			<6.2kg
	Control method			Synchronization & Asynchronization
Control System	Control System			Mooncell/ Nova/ Linsn(Optional)
	Software			LED Studio
	Input Signal			DVI/HDMI/DP
	PC Operating system			Microsoft Windows 7, 98, 2000, XP and Vist





led screen feature



1.Wide application field & short ROI time:

commercial advertising LED display screen, Stadium perimeter LED display screen, Mobile trailer LED display screen for mobile media,floor tile screen ect.

shopping mall LED display screen for logo showing, bank&stock exchange LED display screen for rates showing, train & bus station LED display screen

air port LED display screen, telecommunication LED display screen system for information showing and instruction .



2. High Contrast ratio: 4000:1
Which is a very high level to ensure a vivid image of our LED display screen system.

3. First-class LED chip:
Supplied by Nichia of Japan & other high strictly selected LED chip to ensure the long lifetime and high brightness of our LED display screen system



4. Clear vivid image quality:
Even in direct full-on sunlight to ensure you attract more audience to get short ROI of your LED display screen's

investment.



Methods for Quality Assurance



a. Aging testing :100% fully test Condition: 72 hours with 256 gray level

b. Vibration Testing:Condition: 3-5 min up and down in 5mm range





Payment and delivery



1) T/T, 30% deposit, 70% before shippment.
2) 100% Western Union in advance.







♦ Why choose us:



Continues Quality

With more than 10 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.



Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.



Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.



Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.







♦ FAQ



What kind of payment terms you can accept ?

We can accept T/T and Western Union.



What about your Led Display quality ?

Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of

our products continuity.



What is your delivery time ?

Within 7-35 days according to your area and quantity.



Is your LED display competitive ?

Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure

our led display’s competitiveness.
