Die Cast Aluminum Rental Waterproof P3.91 LED Billboard 1/16 Scan Mode IP43 Suitable For Advertising Posters
P3.91 Full Color LED Billboards 1/16 Scan Mode IP43 for Advertising Poster
Quick details:
*Light Weight
*Good Heat Dissipation
*Low Power Consumption

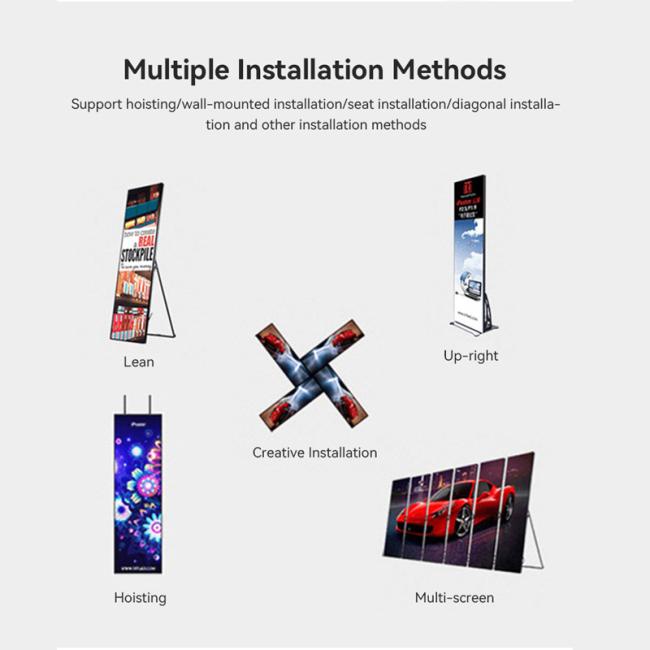

*Convenient Installation
*Easy Move
Info about us:
SCXK has been focusing on the LED field since 2005. We are a leading manufacturer and supplier of full-color indoor and outdoor LED displays, rental LED displays and LED module technology solutions in Shenzhen, Guangdong, China.
We have a professional team and a range of equipment. Our products are exported overseas every year and are popular in many countries. They can also be found in many domestic applications, such as stations, airports, churches, shopping malls, commercial centers, concerts, etc.
From stadiums to TV stations, conferences and events, SCXK Electronics provides a variety of eye-catching and energy-saving LED screen solutions for the global industrial, commercial and government markets.
| P3.91 Full Color LED Billboards | |||||
| Resolution/mm | 3.91 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 65410/square meter | ||||
| Module resolution | 64x64mm | ||||
| Module size/mm | 250x250mm | ||||
| View distance | 4-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | 1800cd/square meter | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | alternating driving current | ||||
| Scanning mode | 1/16 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Asynchronous,3G,4G,Wifi | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Aging hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Waterproof | IP43 | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
____________________________________FAQ____________________________________
Q1: What should I do if the screen has problems?
A1: We will provide some spare parts with the goods (details as above), including LED, power supply, module, wire, etc., which are enough for you to replace within two years.
Q2: What is your warranty period?
A2: We provide a two-year warranty for our products. This means two years of factory labor and parts are free, but customers need to pay the round-trip shipping cost of damaged parts.
Q3: What fields can LED screens be applied to?
A3: LED screens can be seen everywhere in life. Mall advertisements, bank queuing systems, taxi top signs, stage background displays, etc.
Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
