Small Pitch indoor Advertising LED Screens 2.5mm Pixels HD 1500 cd/sqm Brightness
Small Pitch indoor Advertising LED Screens 2.5mm Pixels HD 1500 cd/sqm Brightness
Features:
1. First-class LED chip: Epistar from Taiwan.
2. With pure golden wire connection in LED.
3. Grand A row material for module frame and mask.
4. 4 layers PCB and copper plating thickness > 18mil.
5. Ag alloy solder paster to ensure good soldering on PCB.
6. Stainless steel screws when assembly.
7. Long-term Brightness capacity throughout product lifetime.
8. 3 years warranty.
Specification:
Module
| Pixel pitch | 2.5mm |
| Pixel configuration | 1R1G1B |
| LED type | 3-in-1 SMD 2121 |
| Module size | 160x160mm |
| Module weight | 0.4kg |
| Module resolution | 64x64dots |
| Module quantity per cabinet | 9pcs |

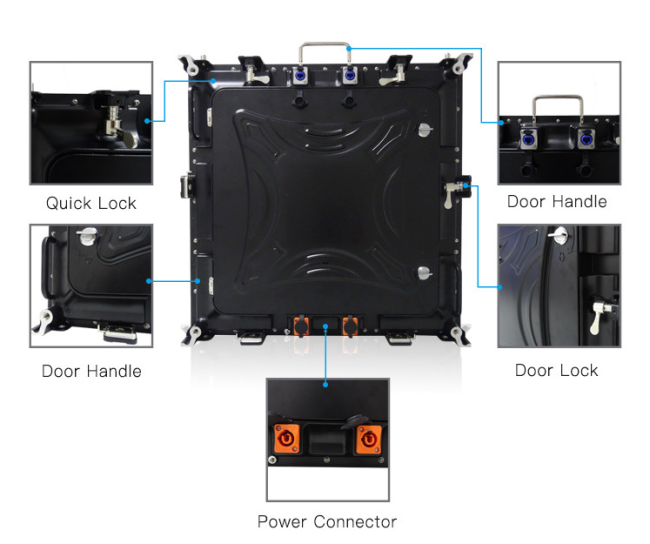

Cabinet Parameter:
| Cabinet size | 480x480mm |
| Cabinet material | iron or aluminum cabinet |
| Cabinet weight | 6.6kg |
| Cabinet resolution | 192x192 dots |
| Ingress protection | Front/Rear IP65/IP54 |
Whole Screen Parameter
| Pixel density | 160000 dots/m² |
| Brightness | >1200 cd/m² |
| Viewing angle | H≥120° V≥60° |
| Min.viewing distance | 2.5m |
| Max.power consumption | 800W/m² |
| Avg.power consumption | 280 W/m² |
| Working voltage | 110~220VAC±15% |
| Interface | HUB75 |
| Colors | 16.7millon colors |
| Gray level | 14-16bits |
| Frame frequency | ≥60frames/s |
| Refresh rate | ≥480Hz |
| MTBF | ≥10000 hours |
| Lifespan | ≥50000 hours |
| Protective function | Over-heat/Over-load /Power-down /Power-leakage |
| Operating temperature | -10℃ ~ +40℃ |
| Operating humidity | 10-80% no condensation |
| Storage temperature | -20℃ ~ +60℃ |

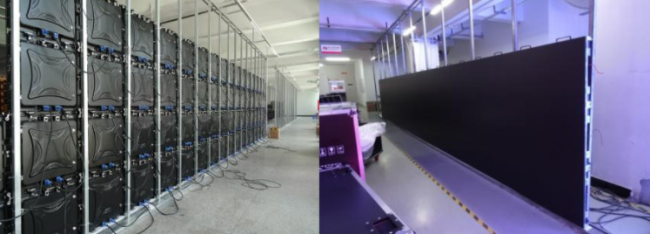

Installation case
Company profile
Certificate
Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
Our service
Warranty
1.We guaratee all our display, modules, spare parts for TWO years.
2.We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.
3.After warranty, we also can offer you the parts for replacement at our bottom price.
4.After sales, if you have any problem about our product, you can inform us by E-mail, we will reply you at once
when we get it and offer you a good solution to solve the problem.
5.We also could solve problems for you antil it recovers well by remote control!
Delivery time
1.Delivery time, Accompalish manufacturing within 25 days after receiving the deposit.
2.Before Delivery, we will test the display , and keep it light up for 72 hours, and check all the parts of the display to confirm it is OK for delivery.
Installation
1.We can assist the training and technical support for the customer in the factory, if the customer require so.
2.We could send our engineer to guide the installation to you. But the relavant cost should be paid by your esteemed company.
3.Our technicians will offer CAD Drawing to show how to install the LED Display rightly and fast, of course, if you need
