SMD 2727 P6 High Brightness Outdoor Full Color LED Billboard IP65 Waterproof
Price:
negotiation
MOQ:
3 sqm
Delivery Time:
7-10 working days after receive your payment
Brand:
SCXK
Product Description
SMD 2727 P6 Outdoor Full Color Advertising LED Billboards 3 Years Warranty
Product Specifications
| Attribute | Value |
|---|---|
| Pixels | 6mm |
| Tube Chip Color | Full color |
| Waterproof | IP65 |
| Cabinet | Steel or Aluminum For Options |
| Viewing Angle | H:100° V:50° |
| Optimal Viewing Distance | ≥4m |
| Voltage | DC5V |
| Driving Mode | 1/8scan |
Product Description
High Brightness Outdoor LED Display with Superior Quality
Designed for outdoor installations, the P6 SMD Outdoor LED Screen delivers exceptional brightness and high-definition visuals, making it ideal for various applications including stages, banks, highways, promotions, stations, and stadiums.

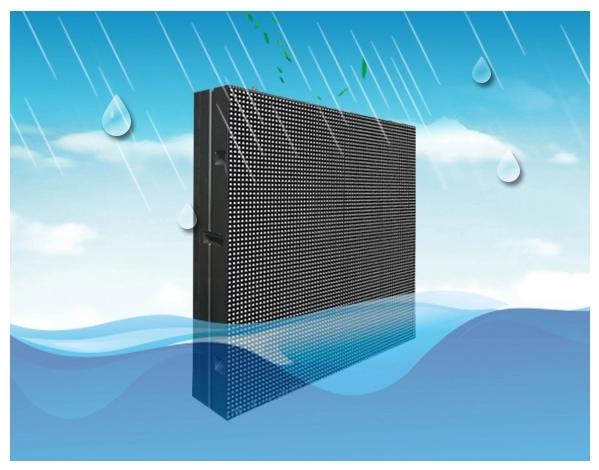

IP65 Waterproof Protection and Modular Design
The SMD Outdoor LED Screen features a special waterproof design that effectively protects against water and dust. With an IP65 rating, it ensures reliable performance in all weather conditions.
Technical Parameters
| Items | P6 Indoor SMD 3-in-1 Full Color LED Display |
|---|---|
| Pitch Size | 6mm |
| Module Size | 192mm × 192mm |
| Module Pixel (Dots) | 32 × 32 |
| Pixel Configuration | 1Red, 1Green, 1Blue |
| LED Chip | Epistar |
| Color Scale | 65536degree/16777216colors |
| Pixel Density | 62500pixels/square meter |
| View Angle (H/V) | 120/120degree |
| Brightness | ≥1200cd/sqm |
| Brightness Adjustment | 64 level automatic or manual |
| View Distance | 2-200m |
| Power Consumption | 200-1100W/sqm |
| Net Weight | 45kg/square meter |
| Operating Temperature | -25°C to +60°C |
| Operating Humidity | 10%-95%RH |
| Life Time | ≥100,000hours |
| Out of Control Dot | ≤3/10,000 |
| Whole Display Flatness | ≤1mm Juncture |
| Exchange Frame Speed | >150frames per second |
| Refresh Frame Frequency | 700Hz |
| Control Distance | 120m (without repeater), single mode fiber: 20km, multi mode fiber: 500m |
| Power | 110V/220V±15% 50~60Hz |
| Operating System | Windows98/Me/2000/Xp/window 7 |
| Drive Mode | Constant current driving, 1/8 scan |
| Display Mode | VGA640X480--VGA1600X1024 |
| Maintenance Way | Rear access |
| Accepting Signal | PAL/NTSC/SECAM, S-Video; VGA; RGB; Composite Video; SDI |
Packaging and Shipping
Packed in anti-static bags, bubble bags, foam box and carton to ensure safety during transportation. Customized single box packaging available upon request.
Delivery within 30 working days after payment confirmation. Shipping options include airway, freight, or as per customer requirements.
Company Showcase

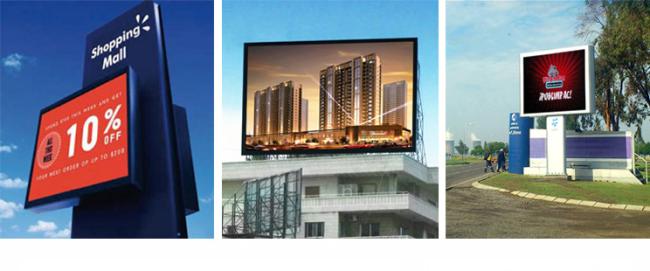

Application Case
Certifications
Quality Assurance
100% brand new products with rigorous quality control.
Payment Options
Bank transfer, Western Union, L/C, and other payment methods available.
After-Sales Service
24/7 customer support available for any inquiries or technical assistance.
