Outdoor Full Color LED Display P8 Advertising LED Screen with Nationstar SMD Chip and IP65 Waterproof Rating for Outdoor
SCX LED Led Display P8 Outdoor Led Video Wall P8 Advertising Billboard High Brightness Outdoor led screen
steel frame fixed installation 10000nits super bright Nationstar SMD full color P8 outdoor advertising led sign display
Features:
1.raw materials
We use taiwan famous led chip brand Epistar andSilan.we guarantee the the raw materials are of good quality.
2.waterproof and high brightness
Can totally prevent from water and dust with grade IP 65,asl with brightness more than 9000cd/m2,even
against strong sunshine it still can provide the high brightness display effect.
3.perfect visual effect
The display effecrt is clear,vivid and good color consistency make it possible to be an excellent led display screen.
4.most cost-effective
There is no middleman and trading company here,we are pro led display manufacturer for more than 10 years,we sure our products are of good quality with a reasonable price.
5.wide range of application
P8 outdoor full color led display can meet the general requirements,It can be widely used in gym,plaza,shopping mall,bank,canteen,station and airport,it would be your ideal advertising LED board.
♦ Technical specification
| outdoor SMD P8 | ||||||||||||||
| Resolution/mm | 8 | |||||||||||||
| Pixel configuration | 1R1G1B | |||||||||||||
| Pixel density/pixels/m² | 15625/m² | |||||||||||||
| Module resolution | 32x16 | |||||||||||||
| Module size/mm | 256x128 | |||||||||||||
| View distance | 7-500m | |||||||||||||
| Single point brightness adjust | Can be added | |||||||||||||
| Single point color adjust | Can be added | |||||||||||||
| White balance brightness | >8000cd/㎡ | |||||||||||||
| Color temperature | 6500K-9500K | |||||||||||||
| Horizontal view angle | 120(degrees) | |||||||||||||
| Vertical view angle | 60(degrees) | |||||||||||||
| Signal Process bit | 10 or 16bit | |||||||||||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | |||||||||||||
| Driving mode | Constant driving current | |||||||||||||
| Scanning mode | (1/4) | |||||||||||||
| Frame rate | 60Hz | |||||||||||||
| Refresh frequency | >4200Hz | |||||||||||||
| Control mode | Computer synchronous | |||||||||||||
| Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
| Out of control point | <1/10000 | |||||||||||||
| Working hours | ≥72hours | |||||||||||||
| Mean Time Between Failure | >5000hours | |||||||||||||
| Life time | 100000hours | |||||||||||||
| Life-all-white(brightness halving) | 50000hours | |||||||||||||
| Environment temperature range | Operating temperature range: -20-45℃ | |||||||||||||
| Maximum power:/㎡ | <950W | |||||||||||||
| Average power:/㎡ | <350W | |||||||||||||
| Self-check technology |
LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
| Remote monitoring |
Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
| Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
| Luminous point width between centres | Deviation<3% | |||||||||||||
| Brightness uniformity | <10% | |||||||||||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
| Contrast | (1000:1) | |||||||||||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
| Humidity(working) | working:10-95% | |||||||||||||
| Humidity(storing) | storing:10-95% | |||||||||||||

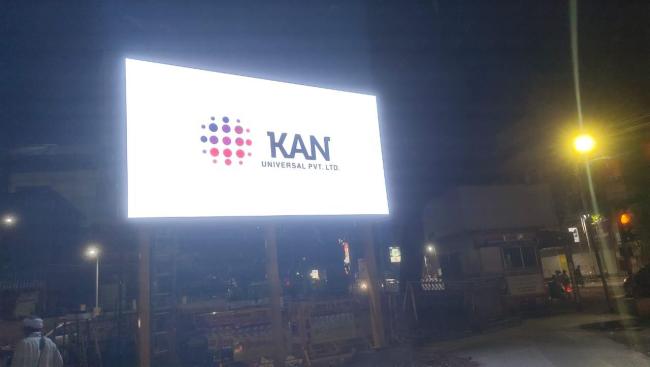

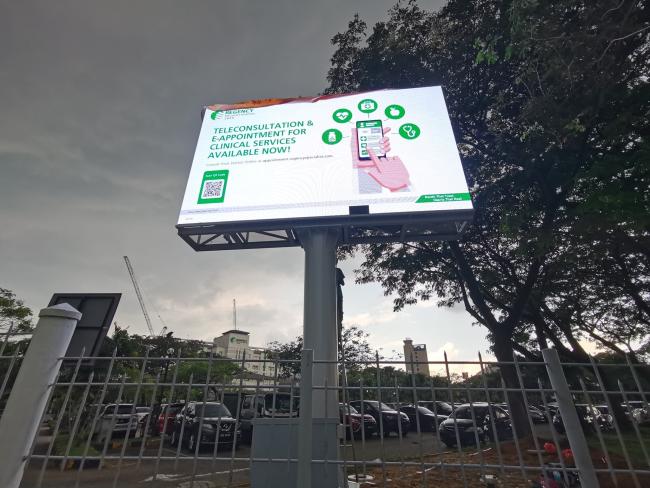

Our case
♦ Production process
1) Incoming Inspection→2)SMD→3)Plug-in
→4) Wave Soldering→5)After Welding→6)Testing
→7) Semi Finished Aging→8)Module Assembly
→9) Gluing→10)Finished Aging→11)Detection Finishing Warehousing
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Applications
--- Outdoor and indoor advertising, digital billboards, advertising companies
--- Sports halls, fields, playgrounds,school church
--- Airports, bus stations and railway passenger terminals.
--- Facades of shopping malls, department stores, banks and car dealerships.
--- Architecture and social projects, information systems in cities.
--- Show-business, concerts, festivals, motor shows and other public events.
WorkShop
FAQ
Other devices
1.Steel structure
Customers purchase material in local place and do installation,if customer need we offer extra and we need to check , we provide steel structure design drawings for free.
2.Power eletricity box
The specifications of the power eletricity box depend on the power of the screen and the number of cabinets.
3. Main power cable and network cable
The number of cables connected to the power eletricity box depends on the number of cabinets
Network cable connect to computer or video processor.
4.Cooling system and sound
Air conditioner can be installed inside the screen steel structure.Waterproof audio is installed outside the screen steel structure.
5.computer
Screen dedicated compute
