Indoor Full Color LED Display P3.9 Flexible RGB Screen Panel for Advertising and Event Stage Background Digital Signage
SCX LED Indoor P3.91 HD RGB Flex Led Screen 500x500mm Display Panel Advertising Full Color for Church Rental Stage
Description:
1) P3.91 advertising display
2) P3.91 outdoor advertising billboard
3) P3.91 roadside advertisement
4) P3.91 IP65 waterproof LED Display
5) P3.91 Dynamic full color LED Display
6) P3.91 RGB LED screen display
7) P3.91 advertrting display for shopping mall
8) P3.91 stadium sports rental LED display
9) P3.91 football match outside display
10) P3.91 outdoor movie wall
11) P3.91 LED Display to replace TV screen
Application area:
·---Indoor advertising, digital billboards, advertising for big companies
·---Sports halls, fields, playgrounds.
·---Stage background
·---Airports, bus stations and railway passenger terminals.
·---Department stores, banks and car dealerships.
·---Architecture and social projects, information systems in cities.
·---Show-business, concerts, festivals, and other public events.
Specifications :
| Resolution/mm | 3.91 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 65410/m² | ||||
| Module resolution | 64x64 | ||||
| Module size/mm | 250x250MM | ||||
| View distance | 14-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >7500cd/㎡ | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/8 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||

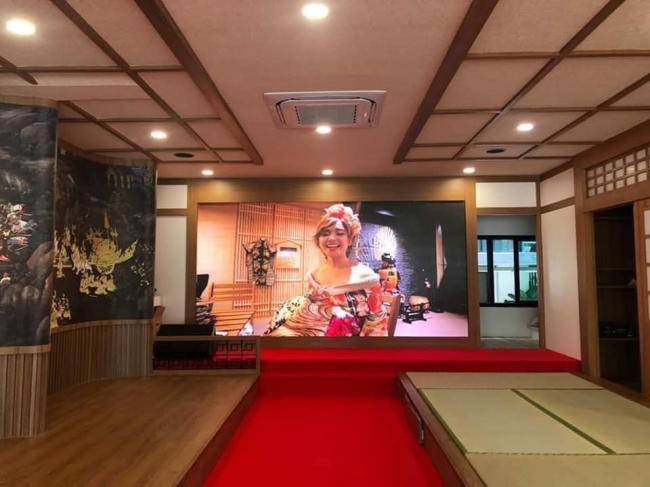

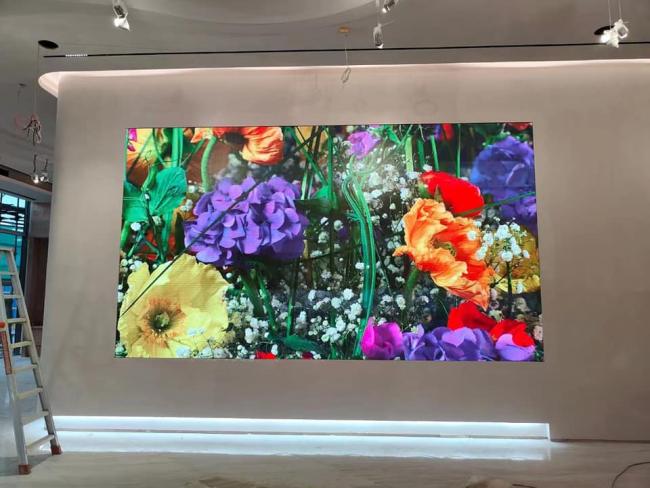

our case
FAQ
2. WHAT IS THE INPUT FORMAT ON THE SENDING UNIT?
It is DV,HDMI,VGA,DP and multiple kinds of input signal.I. It can accept 1024X768, 1280X1024,1080P,2K,4K and 8K
3. WHAT IS THE DATE CONNECTION BETWEEN PANELS?
Each panels has 1 ethercon input and 1 ethercon output making connection between panels very simple.
4. WHAT IS THE PAYMENT TERMS?
30% deposit by TT, 70% balance before shipment.
5. HOW DO YOUR DISPLAY MOUNT?
BoTai has Our design team can help create custom frames and mounting specific to your installation.reated ways to mount all of our products to trussing, but we understand this isn't always the right solution for permanent install.
