256x128mm module magnet front service 3840Hz high refresh high quality Kinglight SMD1515 p2 indoor led screen
SCX LED 256x128mm module magnet front service 3840Hz high refresh high quality Kinglight SMD1515 p2 indoor led screen
256x128mm module magnet front service 3840Hz high refresh high quality Kinglight SMD1515 p2 indoor led screen
1) High refresh rate , high brightness and high contrast which make the screen without any delay and smear phenomenon
under directly sunlight.
2)Energy saving:low electric current,high-bright lamps,equipped with PFC switching power supply that save 30% electricty.
3)The brightness can be adjustable to meet the need of changing environment
4)Wide viewing angle: The horizontal and vertical viewing angles are so wide that it is suitable for wide horizontal
5)Environment protection, antistatic, dust-proof, good heat dissipation, cost-effective .
6)Error detection and monitoring:it can monitorthe inner temperature,voltage,cooling fans etc and error detection automatically.
7) High reliability: using distributed scanning technology and module design technology that make higher reliability and stability.
8) Steady and reliable system:with strong antinterference ability and long service life that can continually work for over 24 hours, and it's easy to operate the system.
9) Favorable effect: using dot to dot calibration technology makes the image clearer and the layering stronger
10) Convenient installation and maintenance of display modules
Specifications :
| Indoor Full Color P2 LED Display | |||||
| Resolution/mm | 2 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 250000/square meter | ||||
| Module resolution | 128x64 | ||||
| Module size/mm | 256x128MM | ||||
| View distance | 14-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >1500cd/square meter | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/32 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||

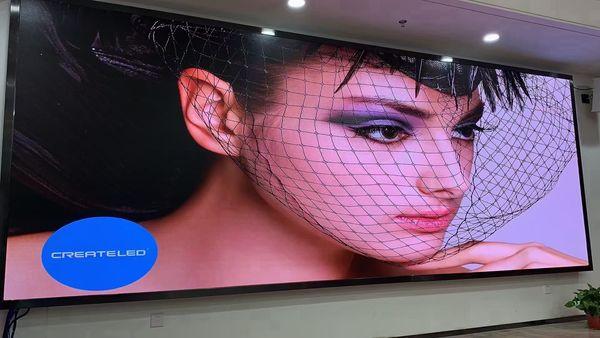

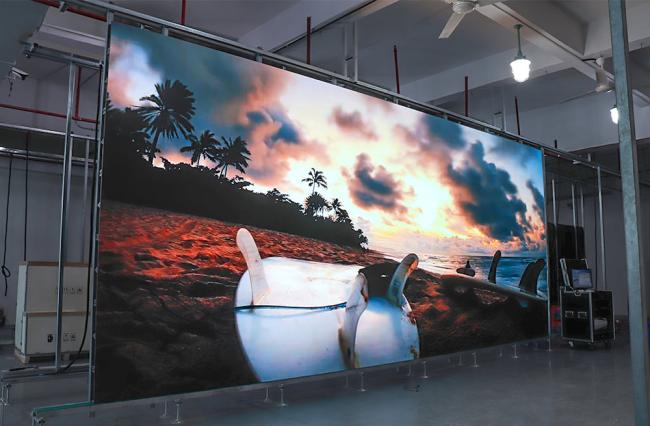

Our case
We can accept T/T and Western Union.
What about your Led Display quality ?
Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of
our products continuity.
What is your delivery time ?
Within 7-35 days according to your area and quantity.
Is your LED display competitive ?
Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure
our led display’s competitiveness.
FAQ:
Q1:Are you a manufacturer or trading company?
A1:We are a Professional OEM/ODM manufacturer which has specialized in led display industry for more than 17 years.
Q2:How does your factory do regarding quality control?
A2:Quality is priority.Brighter people always attach great importance to quality controlling from the very beginning to the very end. We focus on every detail,Our factory has gained ISO9001, ISO14001, CE, RoHS ,FCC authentication.
Q3:What is your MOQ?
A3:Any quantity is acceptable for your order. And the price is negotiable for large quantity.
Q4:When will you make the delivery?
A4:We can make the delivery within 3-5 working days for the led modules and 10-12days for the led finished screen according to the size and quantities of your order.
Q5:What technical supports can you offer?
A5:We provide all kinds of technology trainings for free, including the operation and maintenance training of the LED screens in our factory. we can send an engineer team to the country of the customer to instruct the installation.
Q6:How long is the warranty?
A6:The standard warranty is 1 year. It could be longer upon request.
Q7:Do you provide any free spare parts in each order?
A7:Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED lamp, IC, mask, power supply, receiving card, etc.
