SMD Curved Advertising LED Screens 3.91mm Pixel Pitch 25 Wattled commercial advertising display screen
SCX P2.5 P3 P2.6 P2.97 P3.91 P4 P4.81 P5 P6 SMD Curved LED Advertising Display.Curved LED Advertising Screen.Curved LED
Features
Famous Brands Raw Material Selection
1)LED: well-known international brand,with wide viewing angle ,little attenuation ,good heat dissipation, and vivid colors.
2) Driving IC: famous brands such as, Taiwan MBI, Japanese Toshiba, avoidable the defective
phenomena, such as dark bright, virtual light and so on.
3) Power supply: industrial-strength brand.The power maximum power resere of 20% the space , the range of voltage fluctuation is less 5%, high stability.
4) Connector: Aerial grade brands ensure the stable transmission of power and signal.
5) PCB Board: adopt 4-layer design.

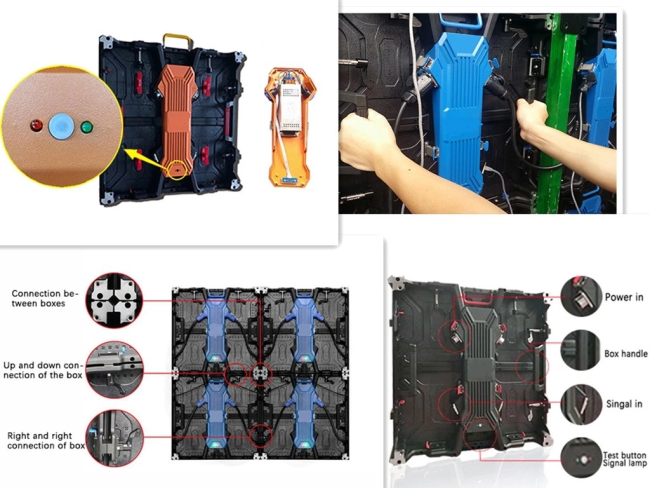

6) Easy installation:100 pieces of cabinets' installation can be finished in one hour by one person.
The replacement of any cabinet can be done within 50 seconds.
Specification

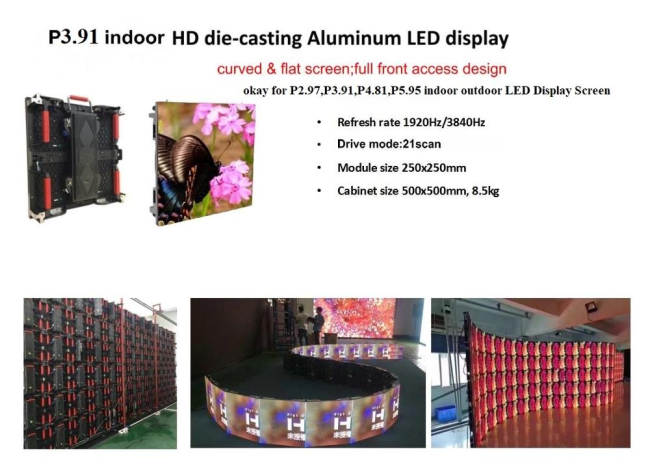

Indoor P3.91 high resolution curve LED video wall/LED screen panel/hd LED display screen for TV studio stram video live show
| Item | Technical Specifications | ||||
| Pixel Pitch | 2.97mm | 3.91mm | 4.81mm | 5.95mm | 6.25mm |
| LED Configuration | SMD1010 (3-IN-1) | SMD1010 (3-IN-1) | SMD1010 (3-IN-1) | SMD1010 ( 3-IN-1) | SMD2121(3-IN-1) |
| Pixel Density | 112896pixels/sqm | 65746pixels/sqm | 43264pixels/sqm | 28224pixels/sqm | 25600pixels/sqm |
| Module Size | 250*250mm | 250*250mm | 250*250mm | 250*250mm | 250*250mm |
| Cabinet Szie | 500mm*500mm/500mm*1000mm | ||||
| Cabinet Resolution | 168*168pixels | 128*128pixels | 104*104pixels | 84*84pixels | 80*80pixels |
| Cabinet Material | Die-casting Aluminum cabinet with curved design LED Display Screen | ||||
| Cabinet Weight | 7Kg curved LED Display panel cabinet | ||||
| Brightness | 2000cd/sqm | 2000cd/sqm | 2000cd/sqm | 2000cd/sqm | 2000cd/sqm |
| Color Temperature | 3500K-9500K | 3500K-9500K | 3500K-9500K | 3500K-9500K | 3500K-9500K |
| Viewing Angle | H:160°/V:160° | ||||
| Ave Power Consumption | 230W/sqm | 230W/sqm | 230W/sqm | 230W/sqm | 230W/sqm |
| Max Power Consumption | 800W/sqm | 800W/sqm | 800W/sqm | 800W/sqm | 800W/sqm |
| Drive Mode | 1/28scan | 1/16scan | 1/13scan | 1/7scan | 1/10scan |
| Best Viewing Distance | ≥2.97m | ≥3.91m | ≥4.81m | ≥5.95m | ≥6.25m |
| Input Voltage | AC220V/50HZ or AC110V/60HZ(±10%) | ||||
| Output Voltage | 5V 40A | ||||
| Refresh Rate | ≥3840Hz | ||||
| Frame Rate | 50/60Hz/sec | ||||
| Protection Level | IP43 | ||||
| Life Span | 100,000hours | ||||
| Malfunction dot rate | <0.0001 | ||||
| Storage Temp/Humidty | —40~+60°C/10-80%RH | ||||
| Operating Temp/Humidty | —25~+50°C/10-90%RH | ||||
| Input Signal | RF,TV.RGB,S-VIDEO,PAL,DVI,HDMI,VGA,SDI,AVI,RGBHV,CVBS,etc | ||||
| Pc Operating System | Microsoft Windows 7.8.10.98.2000.XP and Vista | ||||
Product Details
| Payment terms: |
35% deposit before production, 65% balance before shipping -T/T: -Paypal -Western Union -Escrow |
| Packing: |
-Standard Export Carton with fully Polyfoam or Pearl Wool -Flight case; -Anti-shaking wooden case |
| Shipping: |
LED module: 3 to 5 working days upon receiving deposit payment LED display: 5 to 8 working days upon receiving deposit payment |
| After-Sales-Service: |
-Lifetime with professional engineer support for free. has quality problem |
