P10 Outdoor waterproof led advertising panels 320X160mm led screen full color smd 3535 960mmx960mm cabinet for fixed
P6 P8 P10 Outdoor full color SMD rgb advertising LED Display screen
P10 Outdoor Advertising LED Display Screen
Product Features
1.Outdoor SMD P10 320*160mm LED display modules, including the Date and power cables;
2. IP65 Water-proof and dust-proof rating, stable broadcasting in any weather condition;
3.Strict quality system control, high contrast and color uniformity;
4.Wide view angle (140 degree) with excellent visibility and good performance;
5.The module can work with Nova, Linsn, Colorlight, Xixun control card;
6.Two years warrenty time, ship in 24 hours, free support online;
1, P10 1R1G1B led display, with 10000dots/sqm, which guarantee vivid and clear image effection.
2, Cabinets with Protection grade IP65 front and IP54 rear, suitable for all outdoor working environment.
3, Fast locks at the four sides of the cabinet, easy assemble and be piled up and be hoisted.
4, Backside maintenance. Exterior exposed module screws, easy dismantling.
♦ Product specification
| outdoor SMD P10 | ||||||||||||||
| Resolution/mm | 10 | |||||||||||||
| Pixel configuration | 1R1G1B | |||||||||||||
| Pixel density/pixels/m² | 10000/m² | |||||||||||||
| Module resolution | 32*16 | |||||||||||||
| Module size/mm | 320*160 | |||||||||||||
| View distance | 9-400m | |||||||||||||
| Single point brightness adjust | Can be added | |||||||||||||
| Single point color adjust | Can be added | |||||||||||||
| White balance brightness | >8000cd/㎡ | |||||||||||||
| Color temperature | 6500K-9500K | |||||||||||||
| Horizontal view angle | 120(degrees) | |||||||||||||
| Vertical view angle | 60(degrees) | |||||||||||||
| Signal Process bit | 10 or 16bit | |||||||||||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | |||||||||||||
| Driving mode | Constant driving current | |||||||||||||
| Scanning mode | (1/4) | |||||||||||||
| Frame rate | 60Hz | |||||||||||||
| Refresh frequency | >3500Hz | |||||||||||||
| Control mode | Computer synchronous | |||||||||||||
| Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
| Out of control point | <1/10000 | |||||||||||||
| Working hours | ≥72hours | |||||||||||||
| Mean Time Between Failure | >5000hours | |||||||||||||
| Life time | 100000hours | |||||||||||||
| Life-all-white(brightness halving) | 50000hours | |||||||||||||
| Environment temperature range | Operating temperature range: -20-45℃ | |||||||||||||
| Maximum power:/㎡ | <900W | |||||||||||||
| Average power:/㎡ | <350W | |||||||||||||
| Self-check technology |
LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
| Remote monitoring |
Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
| Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
| Luminous point width between centres | Deviation<3% | |||||||||||||
| Brightness uniformity | <10% | |||||||||||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
| Contrast | (1000:1) | |||||||||||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
| Humidity(working) | working:10-95% | |||||||||||||
| Humidity(storing) | storing:10-95% | |||||||||||||
| Product overviews | |
| Items | Indoor Led display: P1.5 P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P7.62, P10 Outdoor Led display: P4, P4.81, P5, P6, P8, P10, P12, P16,P20,P25,P31.25 Dance floor led display DJ led screen Transparent led display |
| Material | steel,aluminum ,die casting aluminum |
| Certificates | CE, FCC,RoHS, CCC, UL |
| Payment terms |
30% deposit before production, 70% balance before shipping |
| T/T | |
| Western Union | |
| Packing: | Standard Export Carton with fully Polyfoam or Pearl Wool |
| Flight case; | |
| Anti-shaking wooden case | |
| Shipping: | 5 to 7 working days upon receiving deposit payment |
| After-Sales-Service: | Lifetime with professional engineer support for free. |
| Within 5 year, supply spare parts for free if has quality problem ( not by man-made damage) |
|

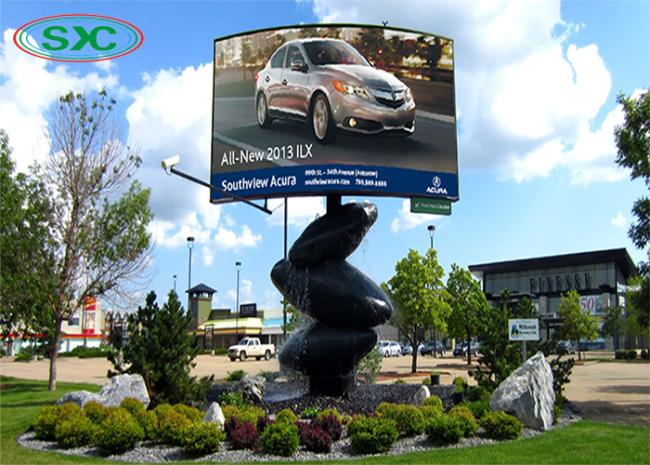

| Using Range | Shopping mall,bank,bus station, train station, center of downtown, airport, school, factory, bus, taxi,and so on. |

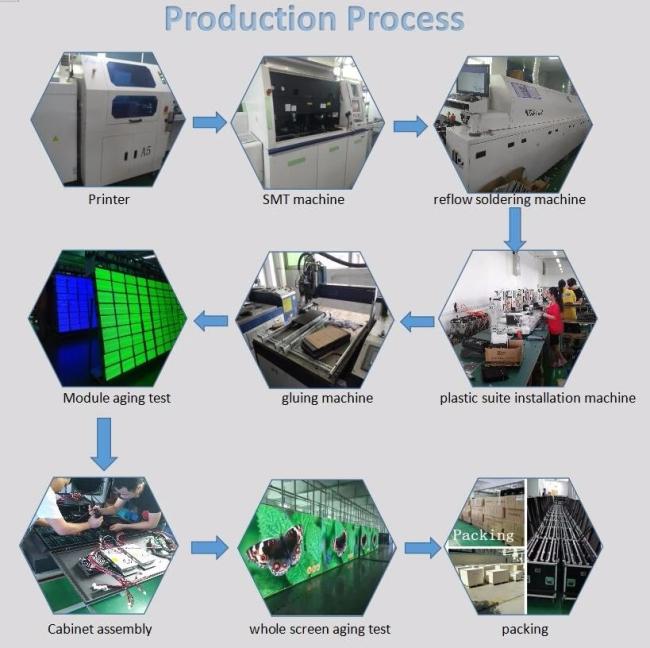

♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing

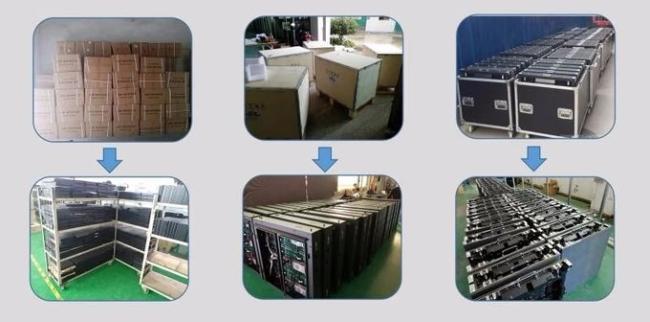

♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Description:
•With sensitive control system, it can adjust screen brightness automatically according to the lighting change of indoor and outdoor, saving energy to reduce your operating costs greatly.
•High refresh rate and high gray make the picture more realistic, which meets the demand of high visual quality of commercial usage.
•The advertising contents can be changed at any time, for different customers and various advertisements.
•you can know the display operation anytime, anywhere.
• it can turn on and turn off the screen by software timing or manually at any time, achieving unattended function.
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Other services, such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
Warranty:
We guarantee all our displays, modules, parts for two full years.
During this time, we will replace or amend all our goods for free if there is something wrong with them. We provide lifetime maintenance and charge only for the raw materials.
We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory. Any associated CAD drawing on how to fix up the display and some other expert suggestion will be provided.

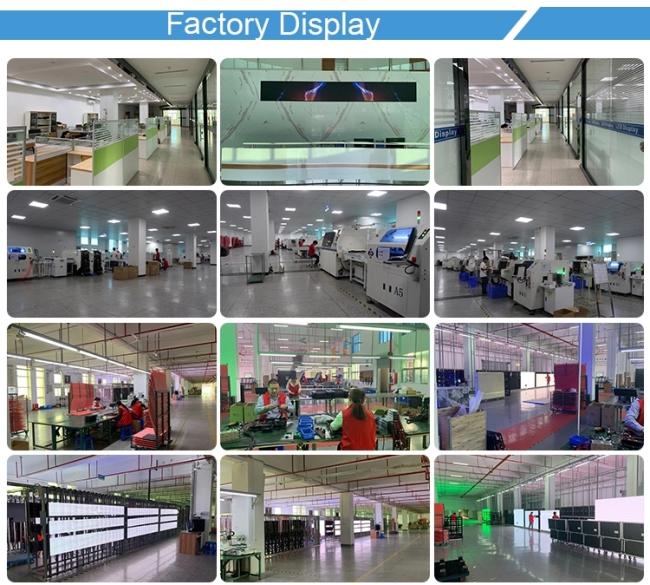

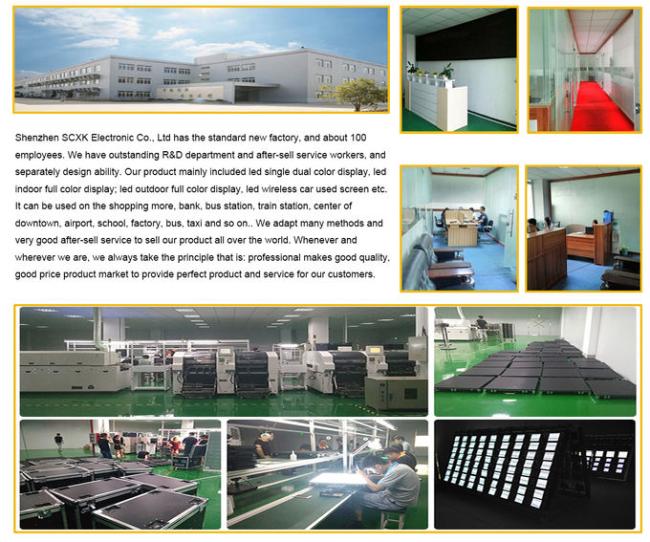

Our company
FAQ:
Q: What does it mean pixel pitch 6mm, 8mm, 10mm etc?
A: It means each two neighboring pixel distance is 6mm, 8mm, 10mm. Different pixel pitch has different resolution, pixel pitch is smaller, led screen resolution is higher.
Q: What information should I provide when send a inquiry?
A: 1, Please tell us will you install the led screen indoor or outdoor? 2, Will if for permanently installation or for events use? 3, How many meters is the viewing distance?
Q: How long is the production time/delivery time?
A: If less than 100 square meters, production time is 7-15 working days.
Q: How about the warranty time?
A: Our products warranty is 2 full years. During thie period, if any of our led screen part not working(except for led module, and damaged not by man-made), we send you new part to replace. We pay half shipping cost.
Q: Can you guide us how to use the led screen?
A: Of course. We will offer you insllation video or manual, software manual. If you still don't know how to use, our engineer can help you by remote control. Besides, we can also send our engineer to your place to guide you how to use.
