Indoor Display Advertisement LED ScreenCOB p2.5 High Refresh Rate HD 160000 Dots Single And Dual Color Without Ghosting
Advertising LED Screens P2.5 Indoor Display High Refresh Rate HD 160000dots
Application of LED display screen:
LED display, also known as LED screen, LED TV wall, LED panel or LED signage, with its unique advantages,
LED display advertising has become a new force in the media industry.
LED display advertising has become a new force in the media industry.
Traditional advertisements can only show pictures, while LED display/led video wall/led screen can perfectly combine text, pictures, video and sound together, and has a high visual impact,
And LED display advertising screen/led video wall/led screen can perfectly combine text, pictures, video and sound together with high resolution, high brightness and full color!
LED display advertising screen can easily attract the attention of pedestrians, and it is easy to remember, which can produce a greater advertising effect.

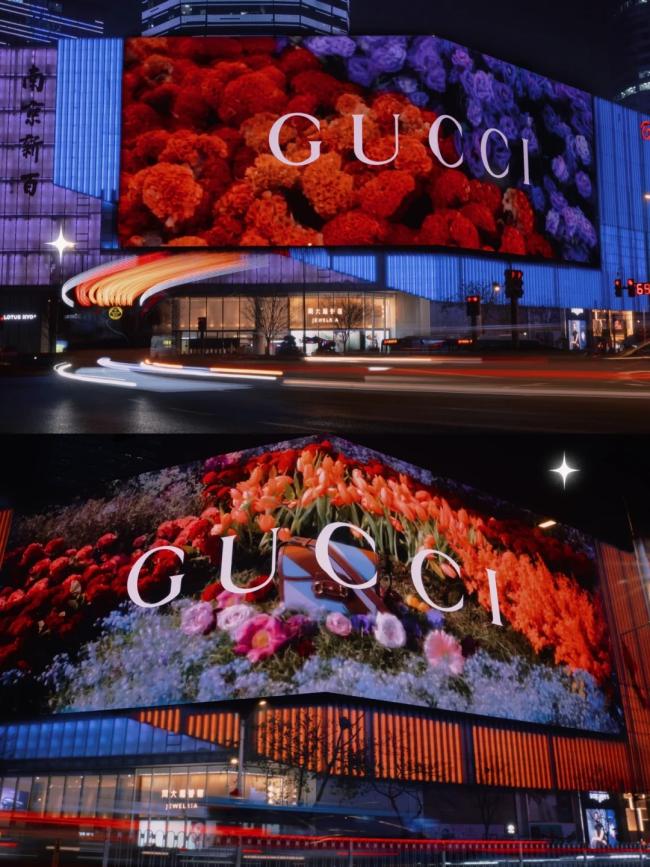

LED display is widely used in media advertising, transportation, security, real estate and stage background and other fields.
Specifications:
| SMD P2.5 | |||||
| Resolution/mm | 2.5 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 160000/square meter | ||||
| Module resolution | 64x64mm | ||||
| Module size/mm | 160x160mm | ||||
| View distance | 2.5-30m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | 1000cd/square meter | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/32 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | 1920Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
Product description:
Best cost performance, Best price for same quality , best quality for same price.
Highly Waterproof and anti-humidity LED Display module.
Unique Design - Easy to Install & Transport Cabinet, Stable and anti-rust.
Skill workers and strictly quality control cover all process and detail.
High refresh rate and color contrast, show great image and video.
Every box and cabinet is well package, for the best safety transportation.
