640x640mm rental panel 3840Hz high refresh Kinglight SMD full color super thin led display screen p2.5 indoor
SCX LED Indoor LED Stage Video Screen P2.5 ,3d wall SMD2121 LED Video Display Wall For Church led screen for church
640x640mm rental panel 3840Hz high refresh Kinglight SMD full color super thin led display screen p2.5 indoor
Product Features:
2. Energy saving:low electric current,high-brigh lamps,equipped with PFC swithing power supply,save 30% electricity.
3. Color correction:support dot-to-dot correction,guarantee the consistence of LED color and brightness,No chromatic aberration for new screens3..
4.. Good LEDs:use DIP346 LEDs,it has excellent performance in antistatic ability and UV protection;Waterproof grade IP65,all weather available.
5. Dual back-up:both power supply and system dual back-up are optional,reliable performance.
6. High refresh rate,high gray level:it can reach 16bit by using PWM driving IC,refresh rate is more than 1000HZ,
the gray level is still high even under the condition of low brightness
Specifications
| Value | P2.5 | P3 | P4 |
| Pixel pitch (mm) | 2.5 | 3 | 4 |
| Pixel configuration | SMD | SMD | SMD |
| Brightness (nits) | 1000 | 1000 | 800 |
| Grey scale ( level ) | 16384 | 16384 | 16384 |
| Pixel Matrix Per Panel | 192 x 192 | 160 x 160 | 120 x 120 |
| Pixel Matrix Per Sq.m | 160000 | 111111 | 62500 |
| Viewing Angle (H/V) | 160 / 160 | 160 / 160 | 160 / 160 |
| Refresh rate (Hz) | ≥1920 | ≥1920 | ≥1920 |
| IP grade ( F / R) | IP40 / IP31 | IP40 / IP31 | IP40 / IP31 |
| Input voltage ( V ) | AC220V±10% | AC220V±10% | AC220V±10% |
| Power Consumption (Max / Avg) | 490 / 170 w/sq.m | 650 / 230 w/sq.m | 500 / 150 w/sq.m |
| Size (L x W x D mm) | 480x480x67 | 480x480x67 | 480x480x67 |
| Panel weight (Kgs) | 5.1 (Die-casting Alu.) | 5.1 (Die-casting Alu.) | 5.1 (Die-casting Alu.) |

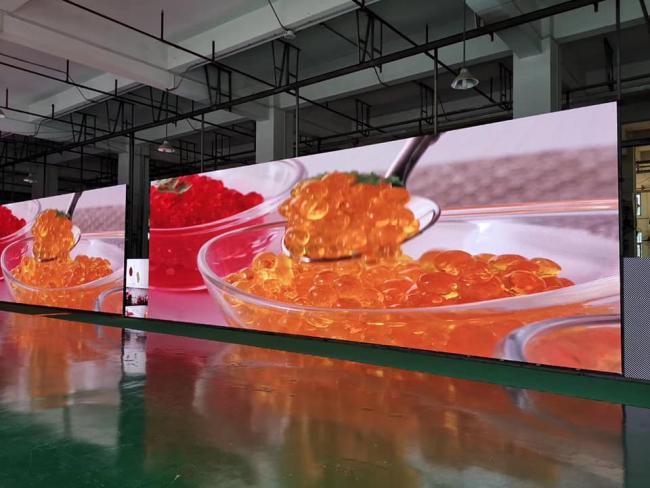

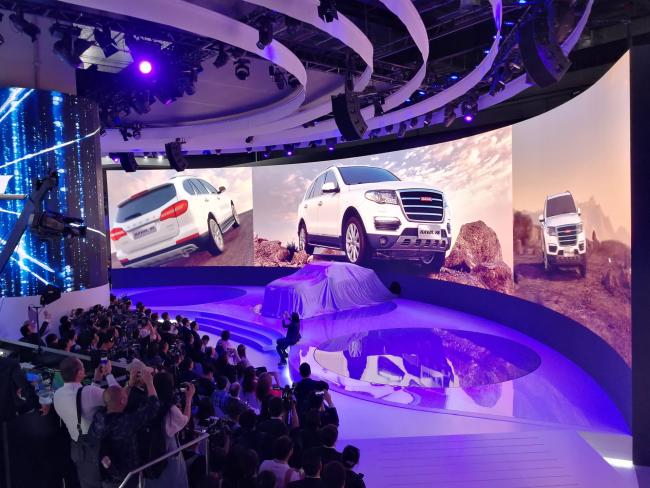

our case
Cabinet Features
Ultra-light---lighter 40% than aluminum die-csting cabinet
Super slim---high-strength,more slim than aluminum in the design,thiner around 30%
Fast cooling---wxcellent heat dissipation perormance to protet the modular circuit
Anti-interference---special anti electromagnetic interference function
High strength---support the weight of 300kg through tension test,more strength than aluminum
Easy installation---installed by quick lock for 20s only
High precision---seamless splicing though CNC machining
High universality---can be processed according to module drawing,used for outdoor and indoor
Easy maintenance---can be maintained form front side
High cost-effective---large-scale production,complete production & supply chain
Our Service
FAQ
Q1: Where is your nearest Sea Port?
A: Our nearest sea port is at shenzhen,guangdong Provice.
Q2: What's the brand of your diode chip?
A: Our led lamps are by Sanan,Kinglight,Silan,Epistar, Nation Star ,Cree etc.
Q3. Can I order a sample for led display screen?
A: Yes, we warmly welcome you to order a sample to test and check quality. You can choose any item what you want.
Q4. How do you ship the goods and how long does it take to arrive?
A: For large quantity,you can choose sea freight.For small order,you can ship by DHL, UPS, FedEx or TNT.Of course,you also can choose it by airline. It usually takes 3-7 days to arrive by express.
Q5. Is it OK to print our logo on led screen product?
A: Yes,we can print your logo according your request.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.002%.
Secondly, during the guarantee period, we will send new parts with new order for small quantity.
If the screen has serious damaged ( e.g. The whole cabinet couldn’t work normally) caused by human, we would mend it with charge based on the cost .
