Rental Screen P10 Outdoor Waterproof Large Display Advertising LED Screen Iron Cabinet IP65
P10 Outdoor Large Display Advertising LED Screens Iron Cabinet IP65 HD Digital
| SMD P10 | |||||
| Resolution/mm | 10 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 10000dots/square meter | ||||
| Module resolution | 32x16mm | ||||
| Module size/mm | 320x160mm | ||||
| View distance | 10-60m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | 5000cd/square meter | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/4 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | 1200Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
Normal questions:
Q1: What's the pixel pitch for choice?
A1: Indoor series: P1.25, P1.56, P1.667, p1.875,p2,p2.5,p2.6,p3,p3.91,p4
Outdoor series: P4.8, P5.9 MG5 outdoor series: P5.9, P6.9, P7.8, P8.9, P10.4
Q2: Where is it used for?

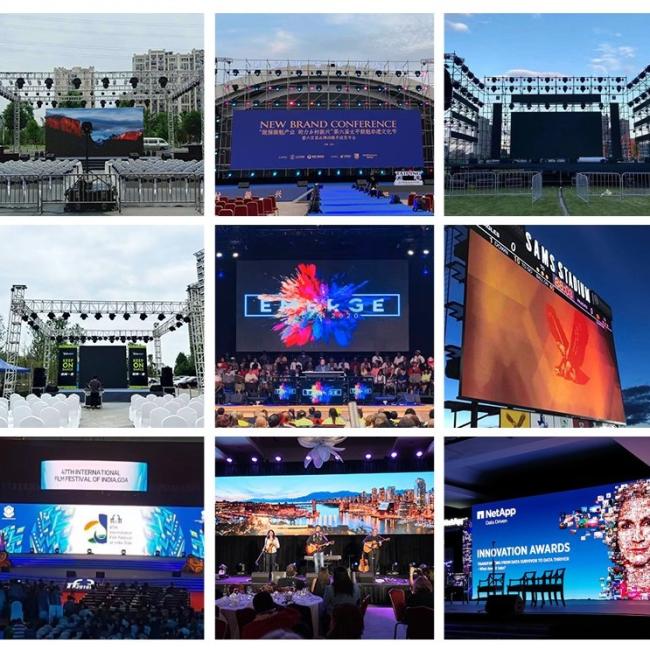

A2: Performance shows, sports activities, advertising, information publishing, celebrating activities, hotel entertainment ect.
One type realize Multi Function for creative stage led screen, advertising led screen, sky backdrop curtain, stadium screen, dance floor and Outdoor screen for indoor use.
Q3: Can it play HD video?
A3: Yes, it can realize HD video function with several different controlling systems,such as Nova, Mooncell,linsn and so on.
Q4: What after service can provide?
A5: One year warranty, 24h online technical support, back-visiting customer for each year
Sending technical personnel to the scene in customers significant activities
Advantage
1. High brightness: Due to the use of high-brightness LED lights, viewers can see the image clearly at a long distance under strong sunlight.
2. Long service life: Using high-quality LED lights as the core material, the screen adopts patented PCB design, which fundamentally guarantees the long life of the product.
Fundamentally guarantees the long life of the product.
3. Stable performance: Special treatment is carried out to combat electromagnetic waves, and the screen adopts distributed scanning and modular design, with stable performance.
Modular design, more reliable and stable work.
4. Delicate image: Non-linear correction technology makes the image delicate and clear, and the video image vivid and lifelike.
5. Excellent flatness: The precision design of the module frame components controls the deviation of adjacent modules within 0.1 mm, with excellent flatness and no mosaic phenomenon.
