P2.5 Aluminum Cabinet Stage full color LED Screens High Definition LED Video ，640x640mm cabinet ，brightness 1200cd
P2.5 aluminum alloy cabinet meeting room indoor high-definition full color LED video display
Quick Detail:
1, High resolution at 160000pixels/㎡;
2, LED Chips: Epistar high brightness;
3, High brightness up to 7000cd/㎡;
4, Power Supply: Meanwell;G-erngy ,chuanglian LED driver
5, Control System: Linsn,Nova etc.
Description:
1, P2.5 SMD LED display is high resolution for indoor LED screens use;
2, Large viewing angle at 140 degree horizontal and vertical;
3, Eletronic digital sign P2.5 is being used more and more, as LED screens trend is high resolution.
4, Clear and vivid advertising image and video;
5, High contrast ratio at 1000:1 to present true and natural color LED screens;
Applications:
Airport Full Color Indoor LED displays advertising
Train station Indoor Full Color LED Displays
Entertainment Bar Indoor Full Color LED Screen
Stadium Indoor Full Color LED Display
Museum Full Color Indoor LED display
Car exhibition LED display
Conference room Indoor Full Color LED Video Display
Shopping Mall Indoor Full Color LED display
Specifications :
| indoor SMD P2.5 | |||||
| Resolution/mm | 2.5 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 160000/m² | ||||
| Module resolution | 64x64 | ||||
| Module size/mm | 160x160mm | ||||
| View distance | 0.5m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >7500cd/㎡ | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/16 | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||

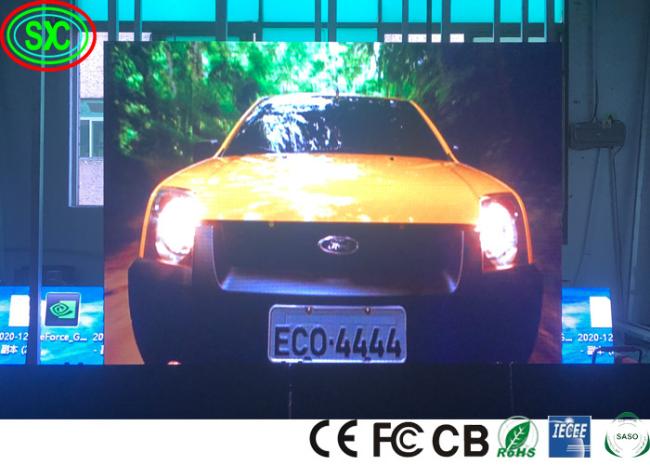

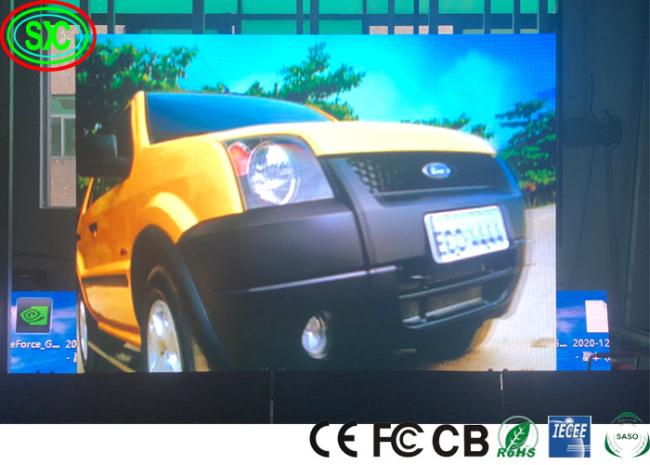

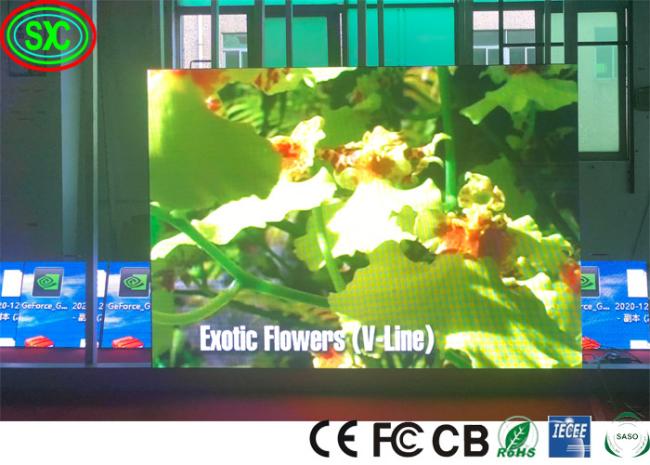

Our case
Competitive advantages:
1, P2.5 indoor full color LED display uniform in brightness and color;
2, Full color P2.5 LED screen is utilizing full black color LED chips;
3, Indoor full color LED video screens contrast ratio up to 1000:1 to react real color of the content;
4, Utilizing Sum driver IC to reach high refresh frequency and high grey grade;
5, Large viewing angle at 140 degree horizontal and vertical;
6, P2.5 LED display is of high resolution for indoor rental events that require high quality presentation and its cost is being lower for large size indoor LED screens use;
♦ Production process
1) Incoming Inspection→2)DIP→3)Plug-in
→4) Wave Soldering→5)After Welding→6)Testing
→7) Semi Finished Aging→8)Module Assembly
→9) Gluing→10)Finished Aging→11)Detection Finishing Warehousing
Detailed Cabinet and Installation
Package
FAQ
Q1. The display will come to me in panel? How to instal them to be one whole led screen?
Yes, but it's very easy. We will provide structure drawing, installation diagram and the data connect diagram. and, we also can arrange engineer to your site if you need.
Q2. Can we make any size we want? And What's the best size of led screen?
Yes, we can design any size according to your size requirement. Normally, advertising ,stage led screen, The best aspect ratio of LED display are W16:H9 or W4:H3
Q3. What's the function of video processor?
And, normally, if led screen connected to computer (DVI Signal) directly, no need video processor, if want play other kind video source, such as HDMI, SDI,VGA signal port. that will need.
