640x640mm panel 3840Hz high refresh ICN2153 Kinglight black SMD2022 P2.5 front service indoor led screen display
640x640mm rental panel 3840Hz high refresh Kinglight SMD full color super thin led display screen p2.5 indoor
Product Features:
2. Energy saving:low electric current,high-brigh lamps,equipped with PFC swithing power supply,save 30% electricity.
3. Color correction:support dot-to-dot correction,guarantee the consistence of LED color and brightness,No chromatic aberration for new screens3..
4.. Good LEDs:use DIP346 LEDs,it has excellent performance in antistatic ability and UV protection;Waterproof grade IP65,all weather available.
5. Dual back-up:both power supply and system dual back-up are optional,reliable performance.
6. High refresh rate,high gray level:it can reach 16bit by using PWM driving IC,refresh rate is more than 1000HZ,
the gray level is still high even under the condition of low brightness
♦ Product specification
| Lamp size | 2121 | |||||
| Resolution/mm | 2.5 | |||||
| Pixel configuration | RGB 3 in 1 | |||||
| Pixel density/pixels/m² | 160000/m² | |||||
| Module resolution | 64x32 | |||||
| Module size/mm | 160x160 | |||||
| View distance | ≥1m | |||||
| Single point brightness adjust | Can be added | |||||
| Single point color adjust | Can be added | |||||
| White balance brightness | >2500cd/㎡ | |||||
| Color temperature | 6500K-9500K | |||||
| Horizontal view angle | 120(degrees) | |||||
| Vertical view angle | 60(degrees) | |||||
| Signal Process bit | 10 or 14 bit | |||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km | |||||
| Driving mode | Constant driving current | |||||
| Scanning mode | 1/32 | |||||
| Frame rate | 60Hz | |||||
| Refresh frequency | >4200Hz | |||||
| Control mode | Computer synchronous | |||||
| Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||
| Out of control point | <1/10000 | |||||
| Working hours | ≥72hours | |||||
| Mean Time Between Failure | >5000hours | |||||
| Life time | 100000hours | |||||
| Life-all-white(brightness halving) | 50000hours | |||||
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ | |||||
| Maximum power:/㎡ | <1100W | |||||
| Average power:/㎡ | <280W | |||||
| Self-check technology |
LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||
| Remote monitoring |
Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||
| Software environment | WindowsNT,Windows1999,WindowsXP | |||||
| Luminous point width between centres | Deviation<3% | |||||
| Brightness uniformity | <10% | |||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||
| Contrast | (1000:1) | |||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||
| Humidity(working) | working:10-95% | |||||
| Humidity(storing) | storing:10-95% | |||||
Product Overviews
| Items | Indoor Led display: P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P7.62, P10 Outdoor Led display: P4, P4.81, P5, P6, P8, P10, P12, P16,P20,P25,P31.25 |
| Material | steel,aluminum ,die casting aluminum |
| Payment terms |
30% deposit before production, 70% balance before shipping |
| T/T | |
| Western Union | |
| Packing: | Standard Export Carton with fully Polyfoam or Pearl Wool |
| Flight case; | |
| Anti-shaking wooden case | |
| Shipping: | 5 to 7 working days upon receiving deposit payment |
| After-Sales-Service: | Lifetime with professional engineer support for free. |
| Within 5 year, supply spare parts for free if has quality problem ( not by man-made damage) |
|
| Using Range | Shopping mall,bank,bus station, train station, center of downtown, airport, school, factory, bus, taxi,and so on. |

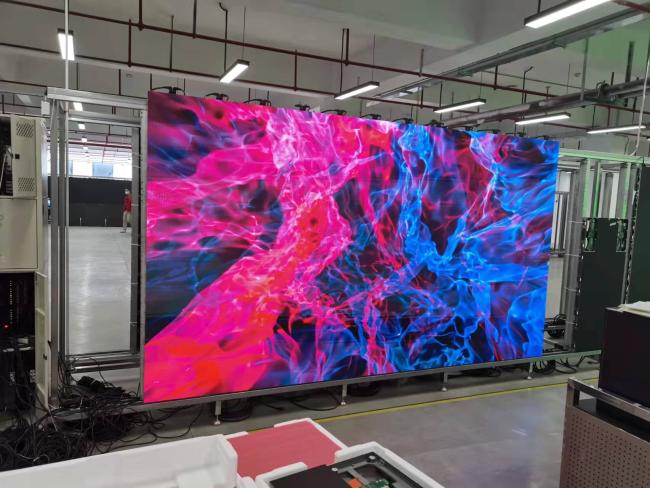

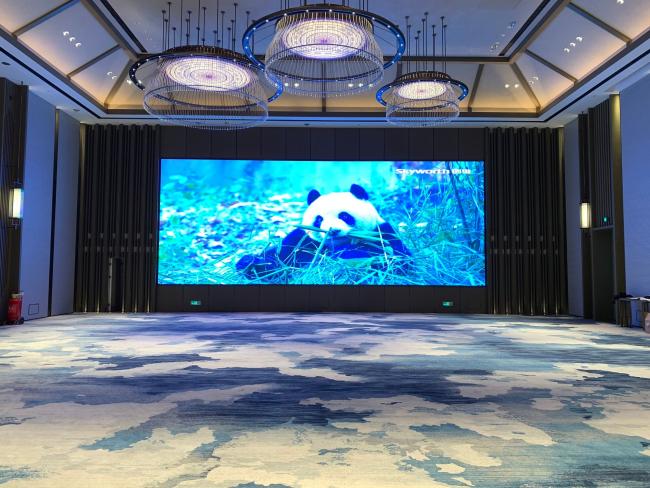

Our case
♦ Features
1. Fast Installation
Standard cabinet size: 640X640MM Cabinet weight is only 6kg/pcs Auto-lock system for fast & easy installation Cost and time saving with LED unique cabinet.
♦ Applications
LED display can be widely used in advertising,multi-media,stadium,stage,rental show,transit directions,etc.
♦ Why choose us:
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.
FAQ
Q1: Are you the manufacturer or trading company? and where is your factory?
A: We are professional manufacturer. You are warmly welcome to visit our factory to learn the technical and maintenance skills and
everything you need in our factory.
Q2:May be we will need some samples, what is the lead time of samples and lead time of order?
A2:We will arrange your sample of the charges within 7 days and arrange your order within 12-15 days after receiving ur salary.
Q3:How could us arrange order?
A:Please send your inquiry to us--click the "send" in below, then let us confirm all details, u can click "start order" in above,
or we send you order link for your payment.
Q4:Which payment method does your company accept?
A:We support T/T or Trade Assurance. For more payment methods, please contact our customer service.
Q5:If have quality problems, how do you solve them?
A:Please provide relevant videos and photos within 1 month of receipt of the shipment. We will verify it at first. If it is really quality problem, we will work with the engineer to assist u in solving the problem. If we can't solve it, we will give you a refund or resend you new one for free, but we will not bear the freight.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
