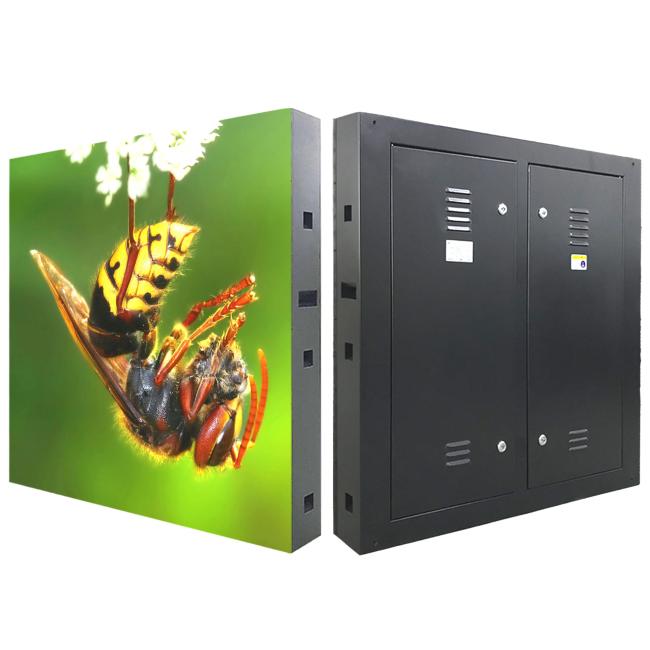

Outdoor digital HD LED waterproof commercial advertising P6 LED screen/led sign/Outdoor led display billboard
Outdoor advertising board high quality led display screen P4 P5 P6 P8 P10 with high brightness
Our Advantages
1. Providing excellent customer service and technical support.
2. We have very strict quality control system for every production procedure.
3. We introduced advanced technology equipment, we can delivery products on time, no matter samples or customized products.
4. We have experienced technology enginners team and sales team to answer and solve all your concerned matters.
5. Our products passed CE, FCC and RoHS certificates.
6. The best price. If you wanna get a completed quotation welcome to contact us. Thank you!
♦ Product specification
| outdoor SMD P6 | ||||||||||||||
| Resolution/mm | 6 | |||||||||||||
| Pixel configuration | 1R1G1B | |||||||||||||
| Pixel density/pixels/m² | 27778/m² | |||||||||||||
| Module resolution | 32x32 | |||||||||||||
| Module size/mm | 192x192 | |||||||||||||
| View distance | 5-400m | |||||||||||||
| Single point brightness adjust | Can be added | |||||||||||||
| Single point color adjust | Can be added | |||||||||||||
| White balance brightness | >8000cd/㎡ | |||||||||||||
| Color temperature | 6500K-9500K | |||||||||||||
| Horizontal view angle | 120(degrees) | |||||||||||||
| Vertical view angle | 60(degrees) | |||||||||||||
| Signal Process bit | 10 or 16bit | |||||||||||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | |||||||||||||
| Driving mode | Constant driving current | |||||||||||||
| Scanning mode | (1/8) | |||||||||||||
| Frame rate | 60Hz | |||||||||||||
| Refresh frequency | >3000Hz | |||||||||||||
| Control mode | Computer synchronous | |||||||||||||
| Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
| Out of control point | <1/10000 | |||||||||||||
| Working hours | ≥72hours | |||||||||||||
| Mean Time Between Failure | >5000hours | |||||||||||||
| Life time | 100000hours | |||||||||||||
| Life-all-white(brightness halving) | 50000hours | |||||||||||||
| Environment temperature range | Operating temperature range: -20-45℃ | |||||||||||||
| Maximum power:/㎡ | <900W | |||||||||||||
| Average power:/㎡ | <300W | |||||||||||||
| Self-check technology |
LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
| Remote monitoring |
Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
| Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
| Luminous point width between centres | Deviation<3% | |||||||||||||
| Brightness uniformity | <10% | |||||||||||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
| Contrast | (1000:1) | |||||||||||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
| Humidity(working) | working:10-95% | |||||||||||||
| Humidity(storing) | storing:10-95% | |||||||||||||

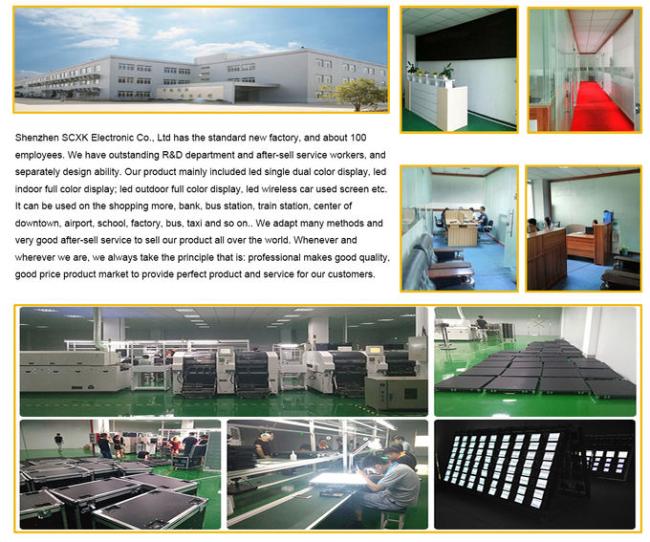

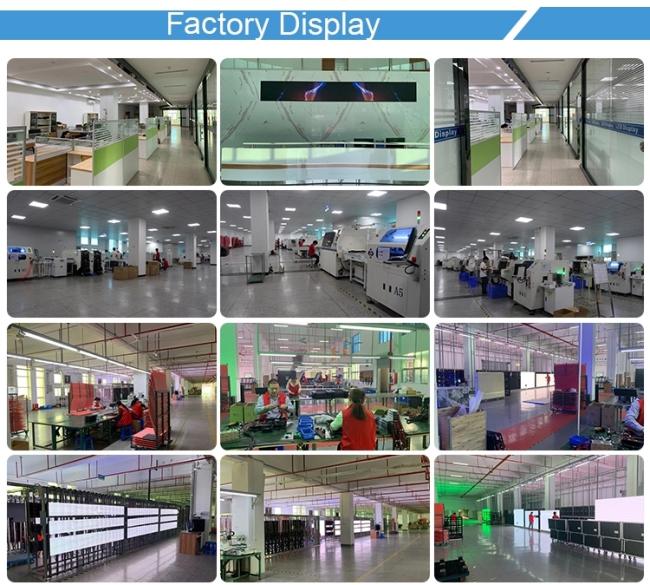

our company
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing

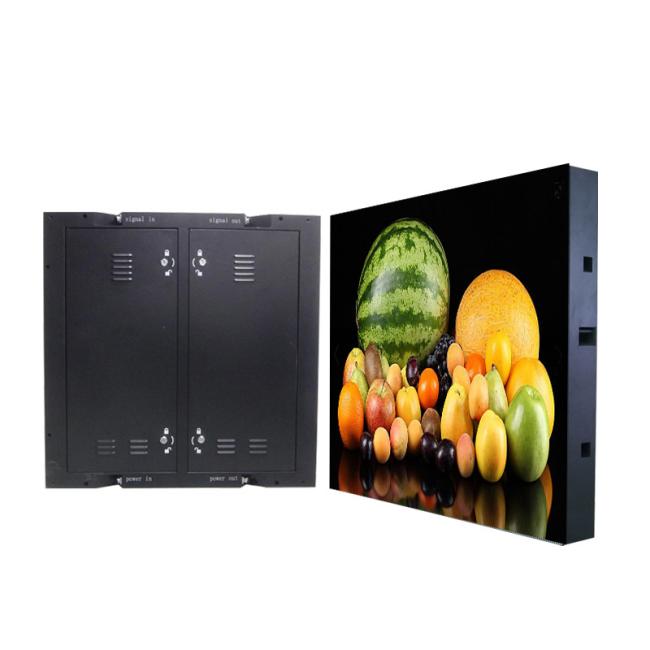

Cabinet
♦ Packaging and shipping
Wooden case or flight case package are available.
1. What about the warranty?
We have two years warranty, spare parts such as led module, control card, power supply are damaged not caused of artificial damaged, then it's free maintenance and ship back new ones for replacement.
2. How about the quality?
Our led products must be aging at least 48 hours before shipping, from purchasing raw materials to ship, each process has strict quality control systems to ensure led display with good quality.
3. Can you offer a technical support?
We provide free training for our customer, teach the client how to set up screens, make configuration of parameters, broadcast the videos through Novastar and colorlight or Linsn control systems, our engineer can directly teach you how to operate. We're innovative high-end led display with over 10 years manufacturing experience, and we believe you can get a professional solution and best service from us. If any question, you are welcome to contact us! We're happy to serve you.
