Indoor p2 Full Color LED Display Offering Steady System with Strong Anti Interference and Long Service Life for Continuous
3840Hz high refresh CS2033 IC Hongsheng SMD1515 front service 512x512mm panel indoor rental led screen p2
1) High refresh rate , high brightness and high contrast which make the screen without any delay and smear phenomenon
under directly sunlight.
2)Energy saving:low electric current,high-bright lamps,equipped with PFC switching power supply that save 30% electricty.
3)The brightness can be adjustable to meet the need of changing environment
4)Wide viewing angle: The horizontal and vertical viewing angles are so wide that it is suitable for wide horizontal
5)Environment protection, antistatic, dust-proof, good heat dissipation, cost-effective .
6)Error detection and monitoring:it can monitorthe inner temperature,voltage,cooling fans etc and error detection automatically.
7) High reliability: using distributed scanning technology and module design technology that make higher reliability and stability.
8) Steady and reliable system:with strong antinterference ability and long service life that can continually work for over 24 hours,
9) Favorable effect: using dot to dot calibration technology makes the image clearer and the layering stronger
10) Convenient installation and maintenance of display modules
♦ Product specification
| indoor SMD P2 | ||||||||||||||
| Lamp size | 2020 | |||||||||||||
| Resolution/mm | 2 | |||||||||||||
| Pixel configuration | RGB 3 in 1 | |||||||||||||
| Pixel density/pixels/m² | 250000/m² | |||||||||||||
| Module resolution | 128x64pixelpixel | |||||||||||||
| Module size/mm | 256x128mm | |||||||||||||
| View distance | ≥0.5m | |||||||||||||
| Single point brightness adjust | Can be added | |||||||||||||
| Single point color adjust | Can be added | |||||||||||||
| White balance brightness | >2500cd/㎡ | |||||||||||||
| Color temperature | 6500K-9500K | |||||||||||||
| Horizontal view angle | 120(degrees) | |||||||||||||
| Vertical view angle | 60(degrees) | |||||||||||||
| Signal Process bit | 10 or 14 bit | |||||||||||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km | |||||||||||||
| Driving mode | Constant driving current | |||||||||||||
| Scanning mode | 1/16 | |||||||||||||
| Frame rate | 60Hz | |||||||||||||
| Refresh frequency | >4200Hz | |||||||||||||
| Control mode | Computer synchronous | |||||||||||||
| Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
| Out of control point | <1/10000 | |||||||||||||
| Working hours | ≥72hours | |||||||||||||
| Mean Time Between Failure | >5000hours | |||||||||||||
| Life time | 100000hours | |||||||||||||
| Life-all-white(brightness halving) | 50000hours | |||||||||||||
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ | |||||||||||||
| Maximum power:/㎡ | <1000W | |||||||||||||
| Average power:/㎡ | <280W | |||||||||||||
| Self-check technology |
LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
| Remote monitoring |
Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
| Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
| Luminous point width between centres | Deviation<3% | |||||||||||||
| Brightness uniformity | <10% | |||||||||||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
| Contrast | (1000:1) | |||||||||||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
| Humidity(working) | working:10-95% | |||||||||||||
| Humidity(storing) | storing:10-95% | |||||||||||||

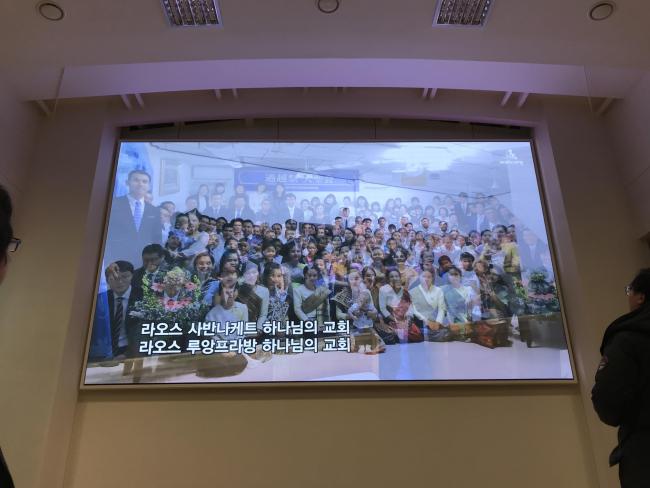

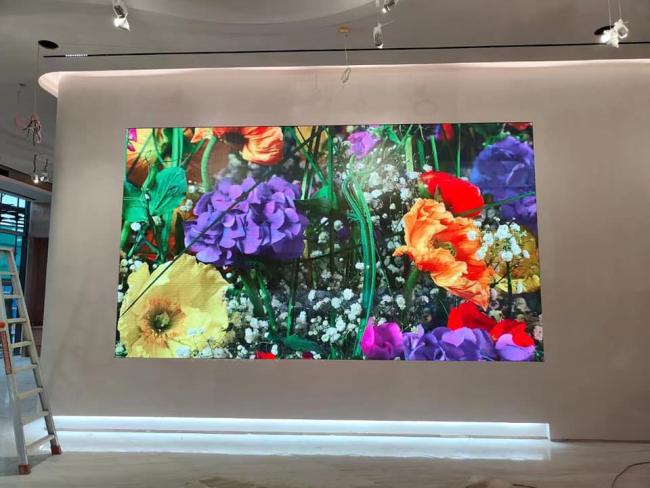

Our case
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Our advantages
Professional Manufacturer of led display
1. OEM service,No MOQ
2. Easy installation,regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5. Wooden case or flight case,you are the boss.
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Methods for Quality Assurance
a. Aging
1) 100% fully test
2) Condition: 72 hours with 256 grey level
b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range
♦ Why choose us:
Continues Quality
With more than 12 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
FAQ
Q1. Can you assign engineer to our site to guide the installation if we require?
A1:Yes. We have qualified and experienced engineers who are ready to service for you.
Q2: Where is it used for?
A2: Indoor & rental use. Widely used for backdrop of staging event, rental business, liveshow, concert, etc.
