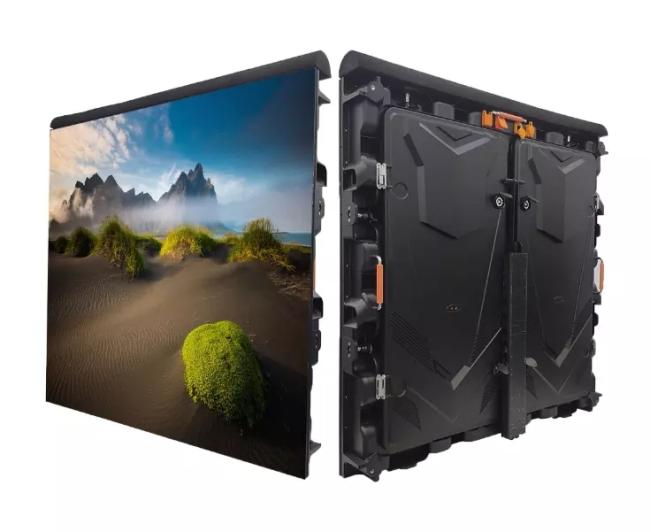

Stadium LED Display960x960mm P8 mm outdoor full color led display soft mask P8 outdoor football stadium perimeter
P8 mm outdoor full color led display soft mask sports stadium perimeter advertising led display
outdoor p8 stadium perimeter led display Advantages
1. Quick installation & maintenance.
outdoor p8 stadium perimeter led display specification
|
outdoor SMD P8 |
||||||||||||||
| Resolution/mm | 8 | |||||||||||||
| Pixel configuration | 1R1G1B | |||||||||||||
| Pixel density/pixels/m² | 15625/m² | |||||||||||||
| Module resolution | 32x16 | |||||||||||||
| Module size/mm | 256x128 | |||||||||||||
| View distance | 7-400m | |||||||||||||
| Single point brightness adjust | Can be added | |||||||||||||
| Single point color adjust | Can be added | |||||||||||||
| White balance brightness | >8000cd/㎡ | |||||||||||||
| Color temperature | 6500K-9500K | |||||||||||||
| Horizontal view angle | 120(degrees) | |||||||||||||
| Vertical view angle | 60(degrees) | |||||||||||||
| Signal Process bit | 10 or 16bit | |||||||||||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | |||||||||||||
| Driving mode | Constant driving current | |||||||||||||
| Scanning mode | (1/4) | |||||||||||||
| Frame rate | 60Hz | |||||||||||||
| Refresh frequency | >3000Hz | |||||||||||||
| Control mode | Computer synchronous | |||||||||||||
| Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
| Out of control point | <1/10000 | |||||||||||||
| Working hours | ≥72hours | |||||||||||||
| Mean Time Between Failure | >5000hours | |||||||||||||
| Life time | 100000hours | |||||||||||||
| Life-all-white(brightness halving) | 50000hours | |||||||||||||
| Environment temperature range | Operating temperature range: -20-45℃ | |||||||||||||
| Maximum power:/㎡ | <950W | |||||||||||||
| Average power:/㎡ | <350W | |||||||||||||
| Self-check technology |
LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
| Remote monitoring |
Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
| Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
| Luminous point width between centres | Deviation<3% | |||||||||||||
| Brightness uniformity | <10% | |||||||||||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
| Contrast | (1000:1) | |||||||||||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
| Humidity(working) | working:10-95% | |||||||||||||
| Humidity(storing) | storing:10-95% | |||||||||||||

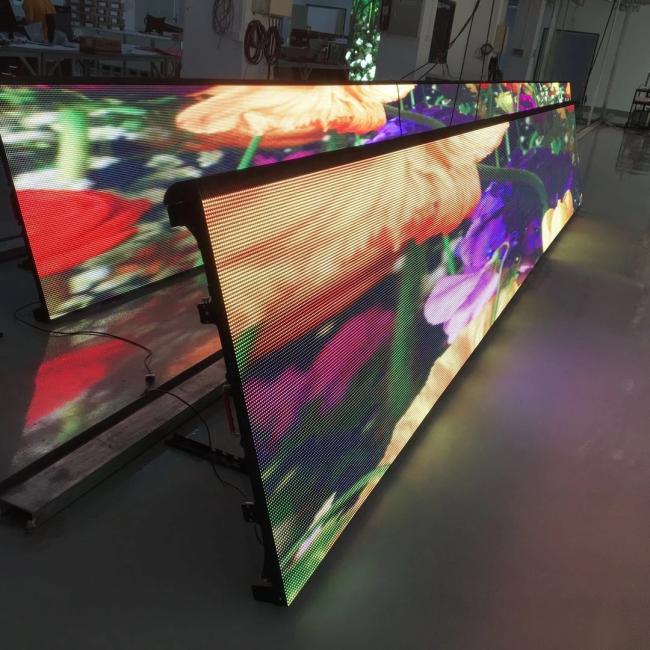

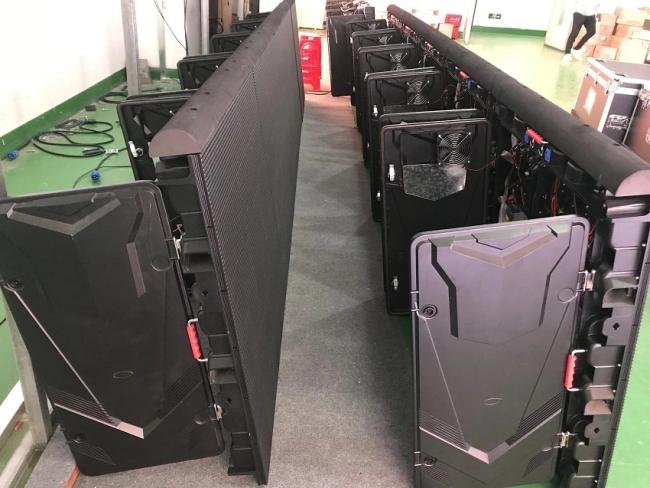

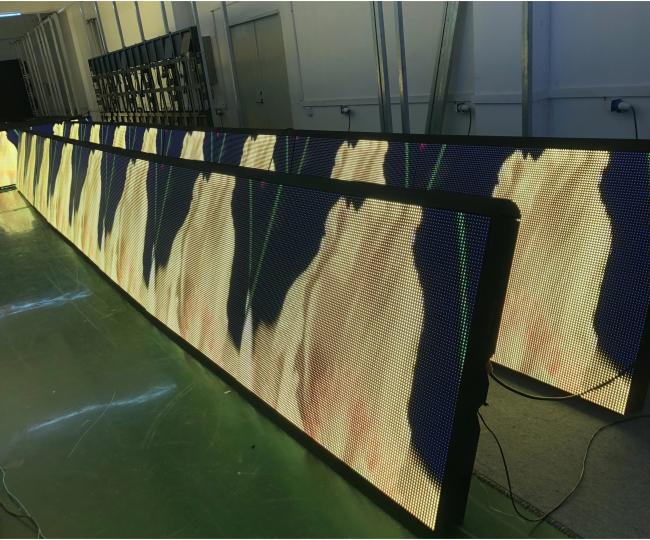

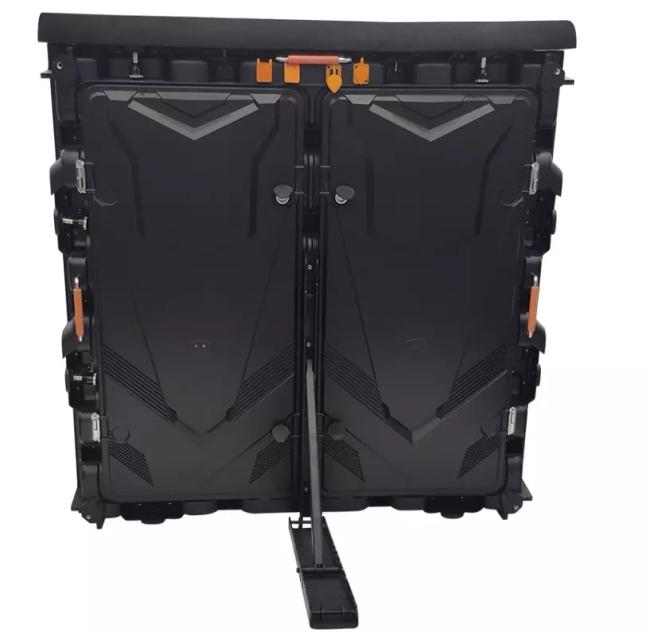

Detail of stadium led display
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing

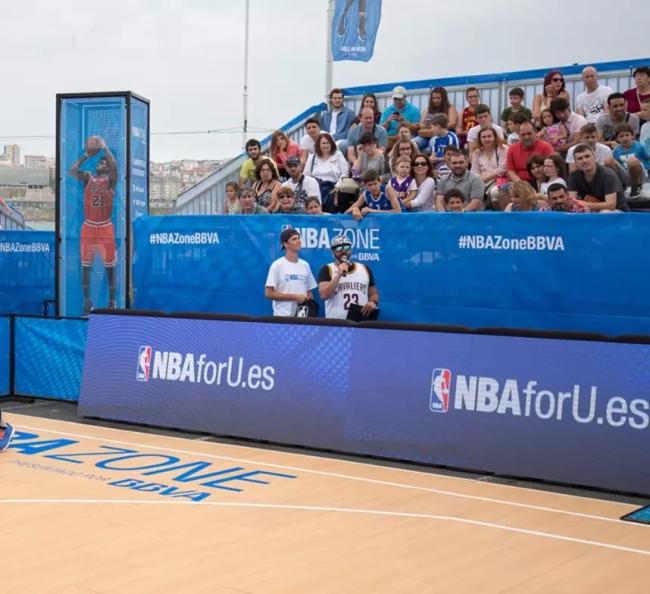

Case
♦ Packaging and shipping
Wooden case or flight case package are available.
FAQ
Q1: What's the warranty of your LED Display Screen ?
A1: We have a 3-year warranty for our led display screen, and 100,000 hours life span of the led lamps.
Q2: What about your pre-sale service and post-sale service?
A2: For pre-sale service: We have a professional sales team and a 12 years technical team who are willing to answer your question 24/12. We can offer a whole complete solution for your project!
For post-sale service: We can instruct you how to use, adjust the screens, and change the boken modules with spare parts.
Also, we can send engineers to your country to solve problems. Mostly, our led display will not have big problems within warranty time!
Q3: Whats your payment term? How long it takes to delivery?
A3: We accept T/T and L/C, For both T/T and L/C, At least 30% deposit in advance, and the rest 70% before delivery.
Our average Production time is 16 days after receiving the deposit.
Q4: What's the control system?
A4: For synchronization control: We use Nova, Linsn Or Colorlight control system.
For asynchronous control: We use Onbon, or Xixun control system.
Q5: How can you ensure the led display product quality?
A5: We have 48 hours aging test and 72 hours whole screen consistency test to ensure the quality.
If any quality failures within warranty time
