Fixed P8 Led Video Display/Led Sign Billboard Big Advertising Outdoor Full Color Led Display
SCX LED HD high brightness P8 outdoor fixed installation LED display screen
Features:
1.High and adjustable LED brightness can meet the demands of the changing requirement of customer in different environments.
2. No mosaic display due to excellent flatness and nice uniformity of light-emitting
3.Wide viewing angle and the horizontal angle can reach 120°m. The images display effect will not Change largely in the range.
4. Virtual pixel display screen can be adopted for outdoor displays to increase the resolution up to four times of real pixel, making the images softer and vivider
5. LED Single-lamp maintenance with low cost.
6. Good heat dissipation capability because of the unique design of vent fan.
7. Environmental-friendly and energy-saving.
| Items | P8 Outdoor full color led display |
| Pitch size | 8mm |
| Module size | 256mm*128mm |
| Panel pixel(dots) | 32*16 |
| LED Lamp | Epistar |
| Pixel configuration | 1R1G1B |
| Cabinet size | 1024mm*1024mm/768mm*768mm |
| Wavelength (dominant) | Red:623nm±1.5nm / Green:525nm±1.5nm / Blue:470nm±1.5nm |
| Color scale | 256-65536grade/16777216colors |
| Pixel density | 15625pixels/square meter |
| View angle(H/V) | 120/60degree |
| Brightness | ≥7000cd/sqm |
| View distance | 2.5-150m |
| Power consumption | 200-1200W/sqm |
| Net weight | 60kg/square meter |
| Operating temperature | —25℃~+60℃ |
| Operating humidity | 10%—95%RH |
| Life time | ≥100,000hours |
| Exchange frame speed | >150frames per second |
| Refresh frame frequency | 2000Hz |
| Control distance | 120m (without relay),single mode fiber: |
| 20000m,multi mode fiber:500m-20km | |
| Power | 110V/220V/380V±15% 50Hz |
| operating system | Windows98/Me/2000/Xp/windows7 |
| Drive mode | constant current driving |
| display mode | VGA640X480—VGA1600X1024 |
| Protections for outdoor display | IP65 |
| Accepting signal | PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI |
P8 Outdoor Led Display Module Parameter:
| Item | Specification Parameter |
| Pixel Pitch,Resolution rate,size | 8mm,40*40,320*320*34mm |
| Pixel color, Pixel LED | 1R1G1B, SMD3535 |
| Working voltage,Module Power | DC5V,78W |
| Driving way | 1/4 |

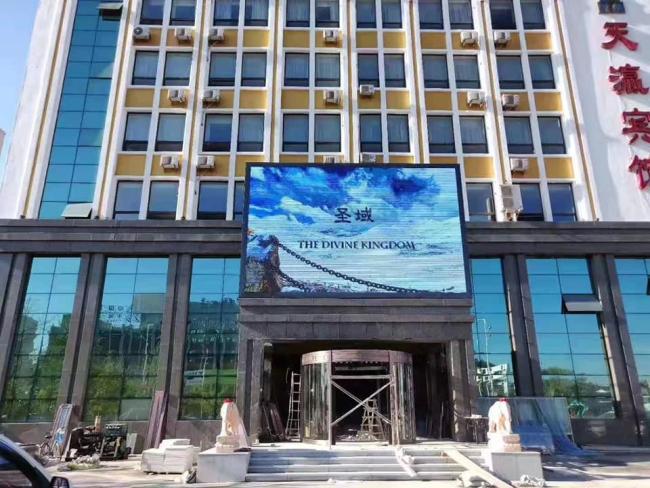

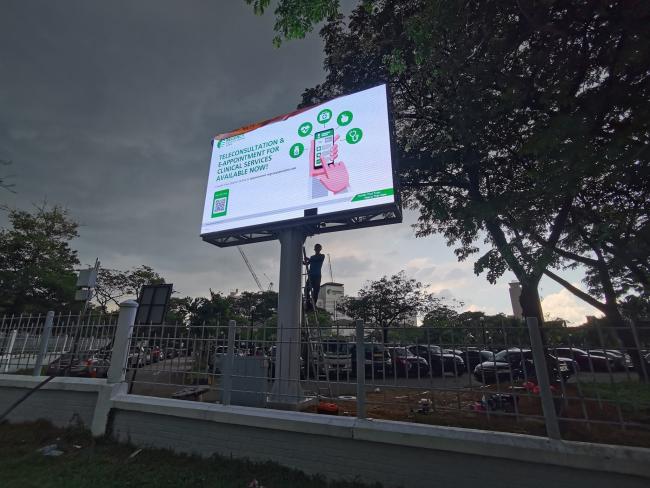

Our case
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
including re-call according to real situation.
