Advertising LED Screens 960x960 P10 P8 Full Color Advertising Billboard Panel Smd Outdoor Flexible Led Display Screen
Production Features
1) Customized cabinet design,support all kinds of control system,LINSN, NOVASTAR,Colorlight, HUIDU,XIXUN,etc.
2) Meanwell power supply, 220~110v
3) Brightness 7500CD/m2,good waterproof cabinet
4) steel cabinet with 960x960mm size or customizable
5) New plastic cover with new mold, smaller module gaps and better screen flatness.
Product Parameters
| Module Parameter | ||||||
| Pixel Pitch | 10mm | |||||
| Pixel Configuration | SMD3535 | |||||
| Density | 10,000 pixels/sqm | |||||
| Module Resolution | 32pixel(L) * 16pixel(H) | |||||
| Module Dimension | 320mm(L) * 160mm(H) * 25mm(D) | |||||
| Driving Mode | Constant current, 1/2 duty | |||||
| Module Mask | Pure black mask---high contrast screen | |||||
| LED Cabinet | ||||||
| Module Quantity in a Cabinet | 3(L) * 6(H) | |||||
| Cabinet Dimension | 960(L)* 960(H)* 150(D)mm | |||||
| Cabinet Resolution | 96(L) * 96(H) | |||||
| Cabinet Material | Steel | |||||
| Cabinet Weight | ≈40KG | |||||
| Electricity Parameter | ||||||
| Optical Ratings | ||||||
| Brightness | ≥7,500 cd/sqm | |||||
| Viewing Angle | 120°(Horizontal); 120°(Vertical) | |||||
| Best Viewing Distance | ≥10m | |||||
| Gray Grade | 14 bits | |||||
| Display Color | 4.4 trillion Colors | |||||
| Brightness Adjustment | 100 grades by software or automatically by sensor | |||||
| Operation Power | AC100-240V 50-60Hz Switchable | |||||
| Max. Power Consumption | 975 W/sqm | |||||
| Avg. Power Consumption | 325 W/sqm | |||||
| Control System | ||||||
| Frame Frequency | ≥60Hz | |||||
| Refresh Frequency | ≥1,920Hz | |||||
| Input Signal | Composite Video, S-video, DVI, HDMI, SDI, HD-SDI | |||||
| Control Distance |
100m(Ethernet cable); 20KM(optical fiber cable) |
|||||
| Support VGA Mode | 800*600, 1024*768, 1280*1024, 1600*1200 | |||||
| Color Temperature | 5000—9300 adjustable | |||||
| Brightness Correction | Pixel by pixel, module by module, cabinet by cabinet | |||||
| Reliability | ||||||
| Working Temperature | -20~+60 ºC | |||||
| Storage Temperature | -30~+70 ºC | |||||
| Working Humidity | 10%~90% RH | |||||
| Lifetime | 100,000 hours | |||||
| MTBF | 5000 hours | |||||
| Continuous Working Time | ≥72 hours | |||||
| Protection Grade | IP65(front), IP54(rear) | |||||
| Out-of-Control Pixel Rate | ≤0.01% | |||||

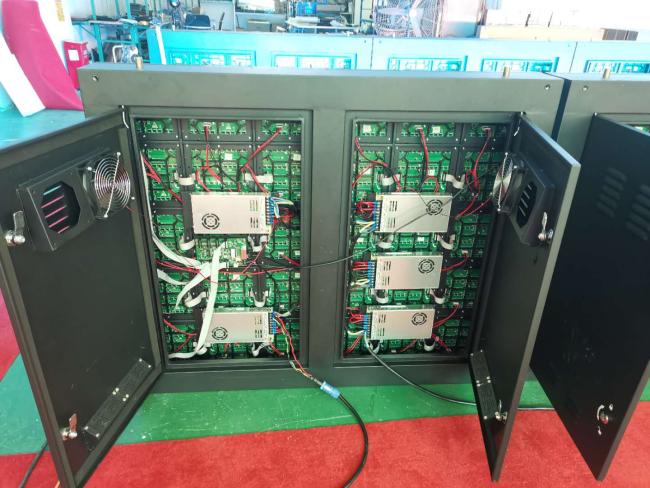

Cabinet Pictures
Packing
FAQ
Q1: Are you the manufacturer or trading company? and where is your factory?
A: we are professional manufacturer devote in producing Led outdoor, Led indoor display, rental display, stadium screen, advertising screen and stage screen etc. You are warmly welcome to visit our factory to learn the technical and maintenance skills and everything you need in our factory.
Q2:May be we will need some samples, what is the lead time of samples and lead time of order?
A2:We will arrange your sample of the charges within 1-2 days and arrange your order within 5-12 days after receiving your salary.
Q3:How could us arrange order?
A:pls send your inquiry to us--click the "send" in below, then let us confirm all details, you can click "start order" in above, or we send you order link for your payment.
Q4:Which payment method does your company accept?
A:We support T/T or Trade Assurance. For more payment methods, please contact our customer service.
Q5:If have quality problems, how do you solve them?
A:Please provide relevant videos and photos within one month of receipt of the shipment. We will verify it at first. If it is really quality problem, we will work with the engineer to assist you in solving the problem. If we cannot solve it, we will give you a refund or resend you new one for free, but we will not bear the freight.
