P2.5 Led Display Controller Card Full Color RGB 2 Years 640*640 Mm 640x640 Mm 160*160mm 160000cd/m2 1/32scan
P2.5 Indoor 100% Front Service LED display for Fixed installation
Outstanding advantages:
1. 100% front service desgin, all parts including power supply and receicing card can be took off from front side, easy to maintenance.
2. Cabinet size: 640mm x 640mm, pefer match indoor 16:9 ratio, ideal product to take place of projector.
3. Fast-installation design, with power connector, aluminum connecting piece, no locks!
4. High precision cabinet, perfect matching between cabinets, ensure perfect flatness of screen.
5. Super light design, diecasting cabinet ONLY 2.5KG per piece! Only 6KG per cabinet with modules and all parts!
6. Black LED lamps, contrast ratio 8000:1.
Application
LED display, also called led screen, led video wall, led panel ,or led sign, with its unique advantages, has gradually replaced the traditional billboards, light boxes, etc. LED display advertising has become a new force in the media industry.
Traditional advertising can only show pictures, But LED display/led video wall/led screen can perfect combine text, pictures, video, and sound with high resolution, high brightness and full colour! LED display Advertising screen can easily attract the attention of pedestrians, and also are easy to remember, which can generate greater advertising effectiveness.
Specifications
| Parameter | Value |
| Pixel Configuration | SMD2020 |
| Pixel pitch (mm) | 2.5 |
| Pixel matrix per panel | 64*64 |
| Pixel density (pixelsm) | 160000 |
| Cabinet Dimensions(L*W) mm | 480*480mm |
| Module Dimensions(L*W) mm | 160*160 |
| Panel material | Aluminum profile&iron&die-casting aluminum |
| Cabinet weight (kg/panel) | 7 |
| Colour grayscale (bit) | 12-16bit |
| Gray scale per colour (level) | 16384 |
| Refresh rate (hz) | 1920 |
| Driving type | 1/16 |
| Signal transmission distance (m) | cats cable:<100m single mode fiber:<10km |
| Brightness (nit) | 1200 |
| Optimal horizontal viewing angle (degree) | 160 |
| Optimal vertical viewing angle (degree | 160 |
| Ac input voltage (v) | Ac100-240v |
| Ac input frequency (hz) | 50/60 |
| Ac input power maximum value (wm) | 625 |
| Ac input power typical value (wm) | 150 |
| Storage temperature (℃) | -40-60 |
| Work temperature (℃) | 0-45 |
| IP rating (front/rear) | IP40/IP21 |
| Storage humidity (rh) | 10%-90% non -condensing |

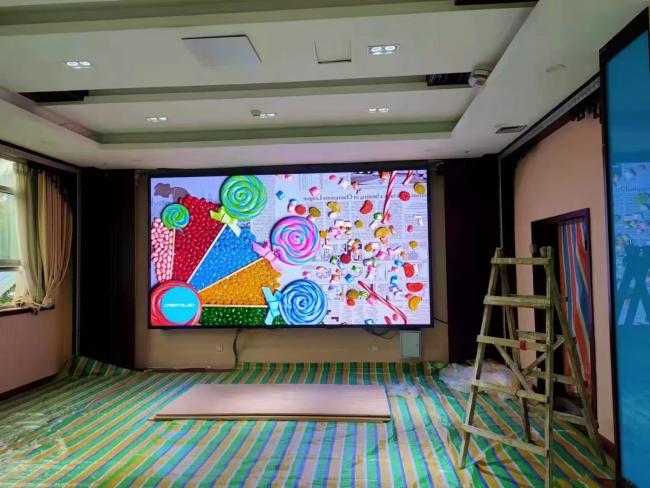

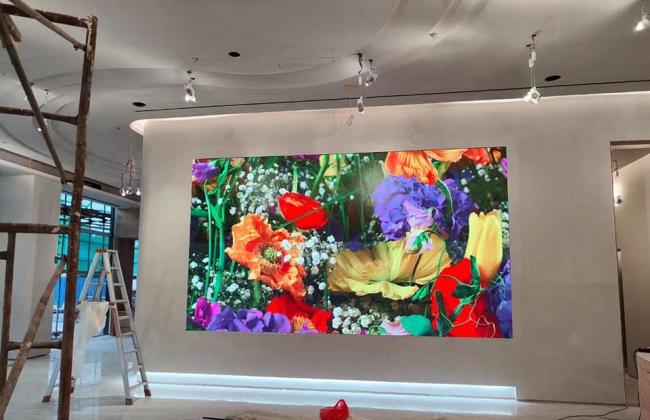

Our case
Our Service
A1: we will accomplish manufacturing within 18-25 days after receiving the deposit(Exclude time of weekend). If you need urgent, please kindly let me know, in guaranteed of quality. we will try our best to make faster.
Q2: What is the minimum order quantity
A2: MOQ is 1 panel,You are warmly welcome to try 1 or 2 panels for sample, but usually clients will order 8 panels for checking quality and compatibility.
Q3: What's the Payment terms?
A3: 30% deposit to start production, and 70% balance to be clear before delivery.
Q4: Where is it used for?
A4: indoor & rental use. Widely used for backdrop of staging event, rental business, liveshow, concert, etc.
Q5: what is the Delivery guarantee?
A5: Guarantee time: 2 years. Within 2 years, if any part failed, we send new parts or repair for free, we will undertake shipping cost from your city to China and from China to your city. After 2 years, we only charge cost price for parts and repairements, and you need to pay shipping cost go and back.
Q6: What's the controlling system?
A6: Control system could be Linsn, Nova-star, Color light...Usually client use Linsn for fixed installation led screens, and Nova-star system for rental screens.
