Indoor p2 Full Color LED Display Featuring High Color Grayscale Levels and Brightness for Clear and Vivid Indoor Visual Presentations
SCX RGB p2 indoor aluminum cabinet screen dot matrix high definition Conference room / company exhibition hall led display
Features:
1.IC: By using high-end PWM chip ICN2053 to guarantee 16 gray-scale levels and refreshing of 3840HZ. Moreover, it can make the video more vivid and smooth.
2.Eliminating-shadow-line IC can completely clear off shadow in situations where current open or close.
3.By using Sn62.8/Pb36.8/Ag0.4 to improve stability of the soldered dots and reduce defects rate.
4.By using special PCB board to keep the uniformity of the module.
Specifications
| Parameter | Value |
| Pixel Configuration | SMD2020 |
| Pixel pitch (mm) | 2 |
| Pixel matrix per panel | 128*64 |
| Pixel density (pixelsm) | 25000 |
| Cabinet Dimensions(L*W) mm | 512*512mm |
| Module Dimensions(L*W) mm | 256*128 |
| Panel material | Aluminum profile&iron&die-casting aluminum |
| Cabinet weight (kg/panel) | 7 |
| Colour grayscale (bit) | 12-16bit |
| Gray scale per colour (level) | 16384 |
| Refresh rate (hz) | 1920 |
| Driving type | 1/16 |
| Signal transmission distance (m) | cats cable:<100m single mode fiber:<10km |
| Brightness (nit) | 1200 |
| Optimal horizontal viewing angle (degree) | 160 |
| Optimal vertical viewing angle (degree | 160 |
| Ac input voltage (v) | Ac100-240v |
| Ac input frequency (hz) | 50/60 |
| Ac input power maximum value (wm) | 625 |
| Ac input power typical value (wm) | 150 |
| Storage temperature (℃) | -40-60 |
| Work temperature (℃) | 0-45 |
| IP rating (front/rear) | IP40/IP21 |
| Storage humidity (rh) | 10%-90% non -condensing |

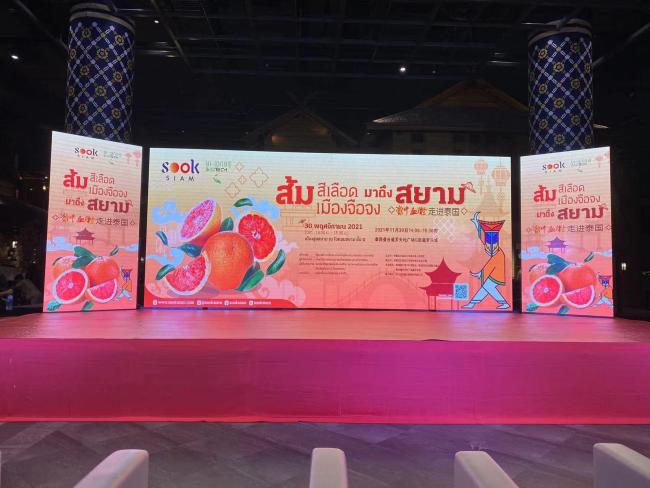

Our case
Our Service
1. Different batch or different company's led module , they can't be used together because the color ,brightness,signal direction of PCB board are different.
(Different batch screw holes position on the housing might be diferent with the picture, pls confirm with us before order).
2.As thest products easy to broken, we suggest you choose express(DHL,Fedex, UPS, TNT) shipping ensure folwless and prefect.
3. All the series modules are 5V power ,make sure your switch power supply suitalbe.
4. We will choose the conveninet shipping method ensure you get products earlier.
