P2.604 P2.976 P3.91 P4.81 outdoor Stage Led Video Wall Rental Led Display Panel outdoor led display screens p3.91
P3.91 Indoor Full Color Led Rental Screen Stage Led Display Made in China
Company Information
Shenzhen ShiChuangXinKe Electronics Co.,Ltd
With its head office in Shenzhen, is a professional manufacturer specialized in the design, production and export of LED products. Our main products are: Small Pixel Led Screen, Glass Led Screen, Dancing Floor Led Screen and General LED Screen etc which are widely used in public places as well as transportation, security, household appliance and advertisement fields.
We have a high-quality and professional research and development team. All the products are in strict accordance with the standard of ISO9001:2000 Quality Management System.
"Good quality, reasonable price, excellent prestige and perfect service" is our philosophy. We hope to establish business relationships with you and become your loyal partner. Let's create a bright future together.
Product Description
| Item | Specification | ||||||||
| LED Parameters |
Luminous Intensity | R:620-630, G:520-535, B:465-475 | |||||||
| Wavelength | R:400-500mcd, G:1800-2200mcd, B:350-450mcd | ||||||||
| Test Condition | R:25℃,20mA, G:25℃,20mA, B:25℃,20mA | ||||||||
| LED Module | Led Type | SMD 3 IN 1 | |||||||
| Pixel Pitch | 3.91 mm | ||||||||
| LED Shape & Size | 2mm SMD 2121 | ||||||||
| Encapsulation Type | 1R1G1B | ||||||||
| Module Dimension | 250mmx250mm | ||||||||
| Module Resolution | 64 × 64 | ||||||||
| Module Weight | 0.20 KG | ||||||||
| Pixel Density | 65410 | ||||||||
| Driving Mode | 1/16 | ||||||||
| Module Power Consumption | 20 W | ||||||||
| LED Cabinet | Cabinet Size | 500mm(W)x 500mm(H) | |||||||
| Cabinet Thickness | 70 mm | ||||||||
| Cabinet Resolution | 128x128 | ||||||||
| Cabinet Material | Die Casting Aluminum Cabinet | ||||||||
| Screen | Use | Rent | |||||||
| Cabinet Weight | 6.5 KG | ||||||||
| Optical parameters | Brightness | ≥1500 cd | |||||||
| Contrast Ratio | ≥3000:1 | ||||||||
| Single-point Brightness Correction | Available | ||||||||
| Single-point Color Correction | Available | ||||||||
| Surface Evenness | GAP< 1mm | ||||||||
| Color Temperature Condition | 3500K～9500K,(can be adjustable) | ||||||||
| Viewing angle | 140°(Horizontal),140°(Vertical) | ||||||||
| Gray Scale | 16 bit | ||||||||
| Minimum Viewing Distance | 3.91 m | ||||||||
| Brightness Adjustment | 0-100% 8 levels | ||||||||
| Power Supply |
Operation Power | AC90-260V 50-60HZ | |||||||
| Max Power Consumption | 700 W /m² | ||||||||
| Average Power Consumption | 350 W /m² | ||||||||
| Control System |
Control Mode | Synchronous Control by Linsn system | |||||||
| Frame Update Frequency | ≥600Hz | ||||||||
| Screen Refresh Frequency | ≥3840Hz | ||||||||
| Gamma Correction | (-0.5—5.0) | ||||||||
| Input Signal Support | Composite,S-Video,Component, VGA,DVI,HDMI,SDI,HD_SDI |
||||||||
| Control Distance | UTP CAT5E:100m;Multi-mode Fiber:500m; Single-mode Fiber:10km |
||||||||
| Video Signal | MPG ／MPEG／MPV／MPA／ AVI／SWF／RM／RA／RMJ／ASF |
||||||||
| Support VGA Mode | 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200, |
||||||||
| Brightness Correction | Dot by Dot,module by module, cabinet by cabinet |
||||||||
| Operating Temp. | - 10° —+55° Celcius degree | ||||||||
| Operating Humidity | 10 - 90 % RH | ||||||||
| Operating Life | 100,000 Hours | ||||||||
| Protection Level | IP34 | ||||||||
| MTBF | 5000 Hours | ||||||||
| Out of Control Pixel Rate | 0.01% | ||||||||

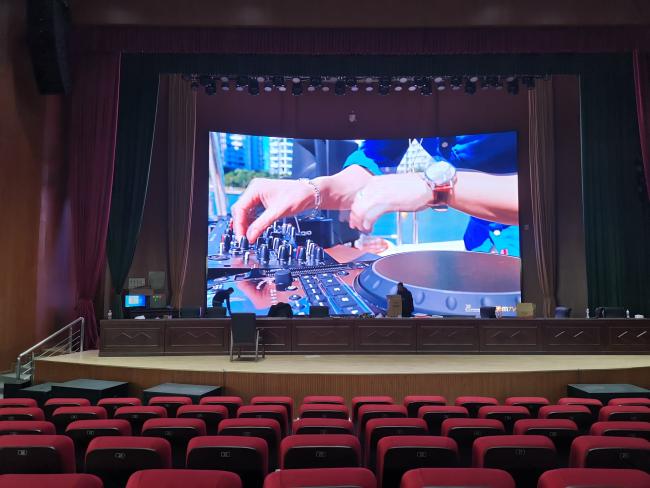

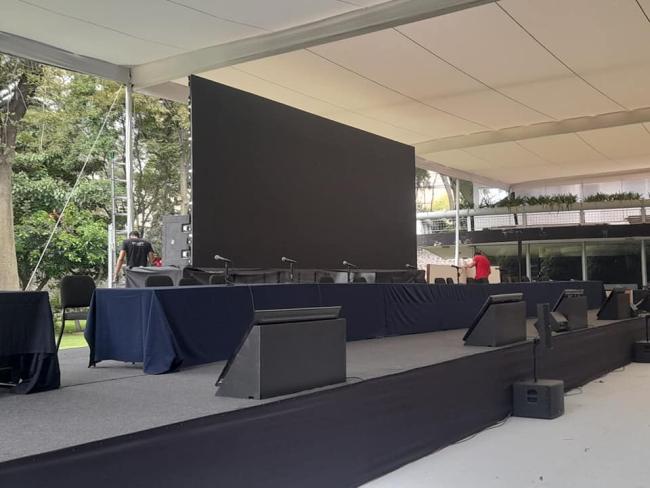

Our case
Use place
FAQ
Q1. Are you a factory or trading company?
A:Manufacturer. Cheng wen has been a professional LED screen manufacturer for more than 14 years, since 2004 year
Q2. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3.What is your payment terms?
Payment terms:30% T/T deposit, 70% T/T before shipment.
Q4. What is the delivery time?
Usually 8-10 working days after payment of deposit. ( stock or small order will be sooner)
Q5. How is package and transport?
Anti-shaking wooden case
Flight case
The transportation can be support by sea(10-30 days ) by air ( 5-10 days) or express( 3-6 days)
Large quantity can send by sea.
Q6:Can your factory accept OEM or ODM?
A:Yes,We can accept OEM and ODM,.and can print logo
Q7. How long is the warranty?
The standard warranty is 2 years. It could be longer upon request.
Q8: What service can provide?
Our Services
1. Guidance service: We can guide on line if customers have questions about the installation and usage.
2. For large project, we provide your engineer a week free training, or if neccersary our engineer can go to customer's country for on-site guidance customer could bear the relevant cost.
