High Brightness Full Color Led Video Wall P10 960X960MM Outdoor LED Display Screen Fixed Pole Installation
Features:
2. True and natural color performance, uniformity vivid color display.
3. High brightness, high resolution and high refresh rate.
4. Seamless installation with excellent flatness.
5. High contrast ratio which ensures vivid images.
6. Low power consumption, environment friendly.
7. Long distance viewing without distortion.
8. Wide viewing angle, 160 degree in both horizontal and vertical.
9. Customization for various size and adjustable.
10. Long life time and stable performance.
11. Low cost and low maintenance fee.
12. UV against, waterproof, IP65.
| LED Module | ||
|
|
pixel pitch | 10mm |
| module size | 320*160mm | |
| module resolution | 32*16 | |
| LED | SMD3535 | |
| Scan | 1/4scan,1/2 scan | |
| Application | Outdoor | |
| Weight | 0.5KG | |
| LED Cabinet conponent | ||
|
|
Cabinet Size |
640*640*70mm/960*960*130mm/ 1024*1024*130mm/1280*960*130mm |
| Cabinet resolution | The resolution according to the cabinet size | |
| module quantity | The module quantity according to the cabinet size | |
| LED driver | G-Energy/Meanwell 5v,40a/5v 60A | |
| Material | Sealed Iron Cabinet/Steel | |
| LED Screen | ||||
|
|
Pixel | 10000dots/Sqm | Continuous Working Hours | >72 hours |
| Ave power consumption | 230W/Sqm | Using Life | 100,000 hours | |
| Max power consumption | 580W/Sqm | MTBF | >10,000H | |
| Optimum Viewing Distance(m) | 6-100m | Scatter OOC Point | <0.01% | |
| Brightness | >6500cd | Continuous OOC Point | None | |
| Refresh Rate | 300---2440 frame/s | IP Grade | IP65/IP54 | |
| LED Drive mode | Constant Current | Working Temperature | -35C----+60C | |
| Display color | 17M——69G | Working Humidity | 10---90% | |
| Voltage | 100-240V | |||

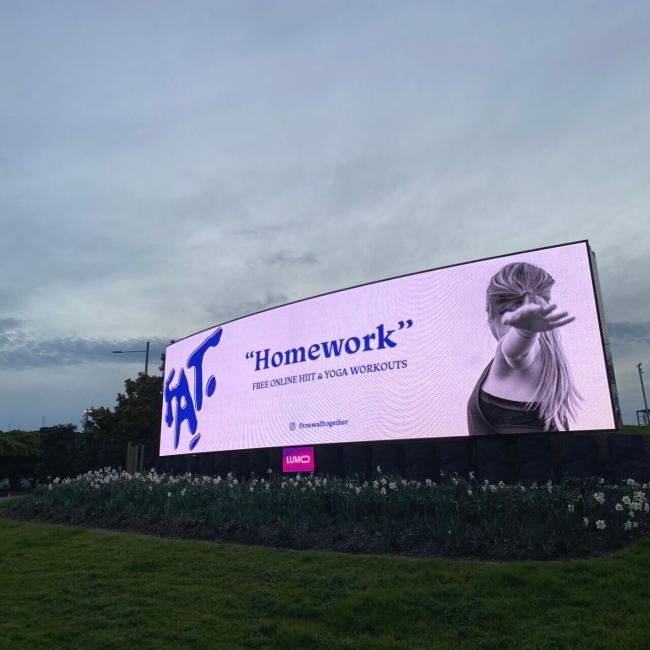

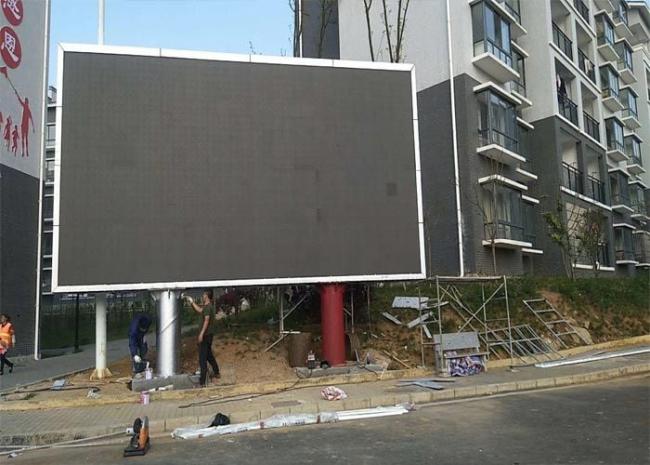

Our Case
Our service
Service goal: Fast, In time, Customer first
1, Free inquiry before and after sell.
2, Warranty: 2 years.
3, Maintain and repair. Respond in time (within 4 hours). Repair within 24 hours for common failure, 72 hours for sever failure.
Maintain regularly.
4, Provide spare parts and technical tolls for long-term.
5, Technology support for important action and programs.
6, Free system upgrade.
7, Free training.
FAQ
Q1. Can I have a sample order for led screen?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 1-7 days, mass production time needs 1-2 weeks for order quantity more than 15pcs.
Q3. Do you have any MOQ limit for led screen order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT, or send by air or sea . It usually takes 3-5 days to arrive. Airline and sea
shipping also optional.
Q5. How to proceed an order for led screen?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit(30% of total ) for formal order.
Fourthly We arrange the production.
Fifthly , customers send balance before shipingment .
Lastly , we send goods .
Q6. Is it OK to print my logo on led screeen product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.1%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
