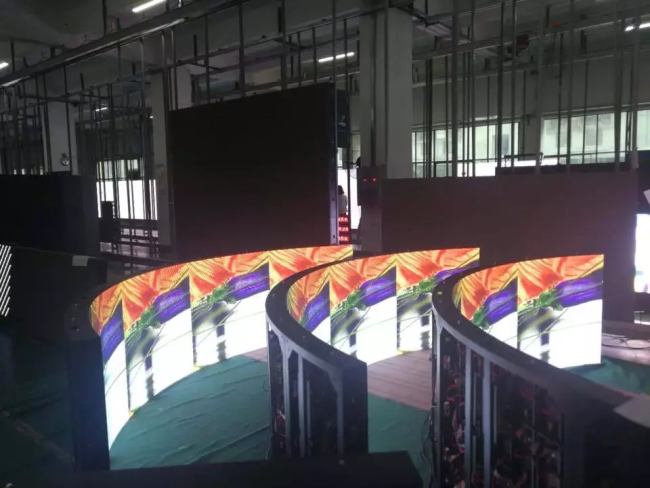

Indoor/Outdoor Advertising Curved LED Display Screen IP34 3.91mm Pixel Pitch curved led display
Price:
USD 1000-10000
MOQ:
1 SQM
Delivery Time:
7 working days after receive your payment
Brand:
SCX
Product Description
Indoor And Outdoor Advertising Curved Led Display Screen Wall Outdoor Led Large Screen Display
Features
>>Energy saving >>Easy installation >>Environmental protection >>High brightness, high refresh rate 3840Hz >>Adopt high refresh rate IC for better viewing effect >>Pass the highest/lowest temperature test >>Wide viewing angle: horizontal angle 160 degrees, vertical angle 140 degrees
Specification
| Unit Module Specifications | ||||||
| Item | P3.91 | P4.81 | P5 | P6 | P8 | P10 |
| Pixel Pitch | 3.91 mm | 4.81 mm | 5 mm | 6 mm | 8 mm | 10 mm |
| Pixel Configuration | 3in1 (1R1PG1B) | |||||
| Module Size(MM) | 250*250 | 250*250 | 320*160 | 192*192 | 256*128 | 320*160 |
| Module Resolution(Dots) | 64*64 | 64*64 | 64*32 | 32*32 | 32*16 | 32*16 |
| Module Weight(Kg) | 0.45 | 0.45 | 0.5 | 0.35 | 0.32 | 0.5 |
| Package LED Mode | SMD1921 | SMD1921 | SMD2727 | SMD3535 | SMD3535 | SMD3535 |
| Max Power(Watt) | 42 | 40 | 38 | 25 | 12 | 12 |
| Pixel Density(Dots/SQM) | 65410 | 43222 | 40'000 | 27'777 | 15'635 | 10'000 |
| Driving Method | Constant Current Driving | |||||
| Scan Method(Scan) | 1/16 | 1/16 | 1/8 | 1/8 | 1/4 | 1/2 |
| Interface Way | HUB 75 | |||||
| Brightness(CD/SQM) | ≥ 1100 | ≥ 5500 | ≥ 7000 | ≥ 7000 | ≥ 7500 | ≥ 8500 |
| Safety Standard | CCC,FCC,ROHS,TUV,CE,ETL,UL,BIS..... | |||||
| Unit Cabinet Specifications | ||||||
| Cabinet Size(MM) | 500*500 | 500*500 | 640*640 | 576*576 | 768*768 | 960*960 |
| Cabinet Composing(PCS) | 4 | 4 | 8 | 9 | 18 | 18 |
| Power Supply Mode(Per Cabinet) | 5V60A | 5V40A | 5V40A | 5V40A | 5V60A | 5V60A |
| Cabinet Resolution(Dots) | 128*128 | 104*104 | 128*128 | 96*96 | 96*96 | 96*96 |
| Optimal Viewing Distance(M) | 3-300 | 4-400 | 5-500 | 6-600 | 8-800 | 10-1000 |
| Optimal Viewing Angle | Horizontal angle: 160 degree; Vertical angle: 140 degree | |||||
| Environment Temperature | Storage: -40 degree ~ +85 degree; Work: -20 degree ~ +60 degree | |||||
| Relative Humidity | 10% ~ 95% | |||||
| Power Supply Specifications | ||||||
| Operating Voltage | AC:100V~120V AC:220~240V | |||||
| Average Power(W/SQM) | 150-350 | 150-320 | 150-320 | 150-320 | 120-280 | 150-300 |
| Max Power Consumption(W/SQM) | ≤ 850 | ≤ 750 | ≤ 780 | ≤ 720 | ≤ 720 | ≤ 650 |
| Current | ≤ 20mA (single LED) | |||||
| Control System Specifications | ||||||
| Computer | Pentium4 or above P4 or above | |||||
| Operate System | Win7-11/2000/NT/XP | |||||
| Control Mode | Synchronization with PC | |||||
| Main Technical Parameter Specifications | ||||||
| Driving Device | Constant Current Driving | |||||
| Refresh Rate | ≥ 1900-3840Hz | |||||
| Gray/Color | RGB each 256 grade, can display 16.7color | |||||
| Lifespan | ≥ 100000hours | |||||
| Power Switch | RGX Automatic Switch | |||||
| Display Mode | 2048*10241024*7681280*960mm | |||||
| For more information please contact our sales. | ||||||

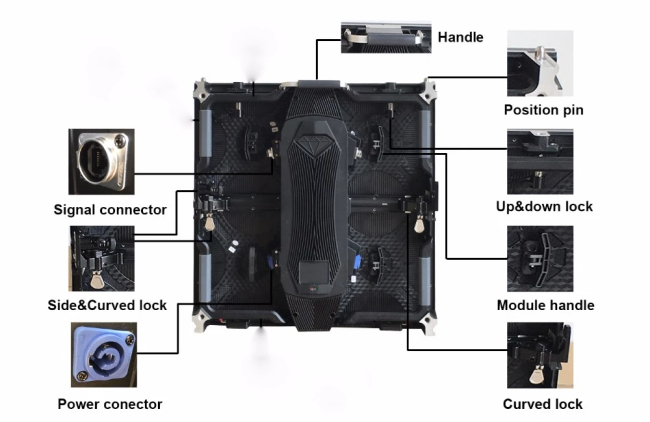

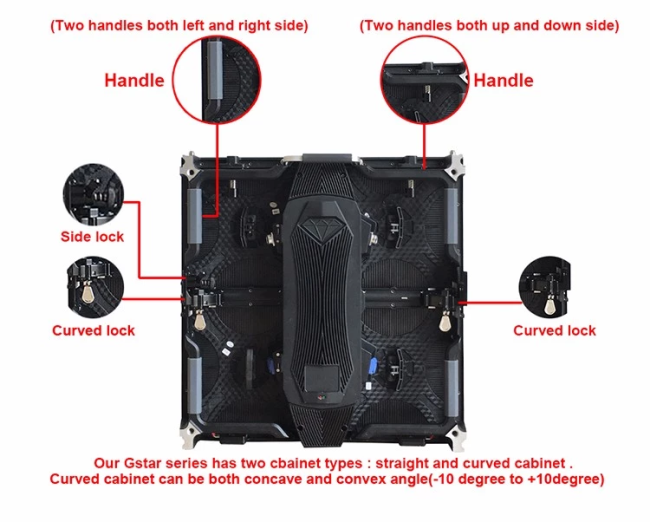

Product Details

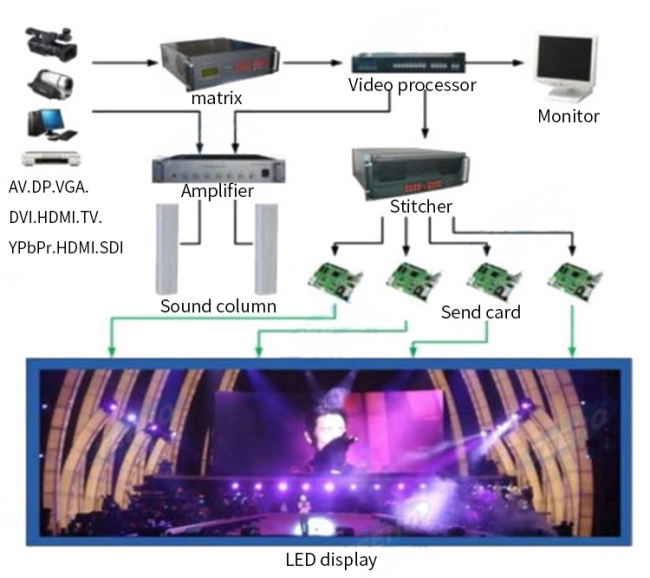

LED Control System
Our Service
1. We can provide customers a comprehensive solution delivery of series-related products
2. We can provide customers high quality products which allow they to scream
3. We can provide custom-made service.
4. We can provide customers one year free warranty, and support renewals extended
5. We can provide customers the free installation guidance and technical support
6. We willing to provide any countries and regions in the world with products and technical
support. at present, our product has covered more than 100 countries and regions.
FAQ
1. Can we make any size of indoor led screen?
Nope , according the led module size and cabient size, such as p3.9 mm indoor led screen,
the smallest unit size is: 500x500mm.
2,What's best size of indoor led screen?
The best aspect ratio of LED display are W16:H9 or W4:H3, recommand order 4x3=12pcs
for the demo ph3.9 mm indoor led screen,
3,How to install indoor led screen?
We will provide drawing of steel structure or hanging truss,then you can install indoor led screen,
very easy.
4,How to order indoor led screen?
Please tell me indoor or outdoor do you need,size of led display,where will be application
of indoor led screen
5,How to shipment?
Normally, ph3.9 mm indoor led screen will be shipped by air or by sea , because the value is
high than other product too much.
6,How to payment?
You can transfer payment by TT,West union, recommand Trade Assurance.
