Factory 3d effect full color smd outdoor p5 960x960mm iron Waterproof video wall led display screen
Price:
negotiation
MOQ:
12sqm
Delivery Time:
7-15 working days
Brand:
SCXK
Product Description
Why choose Outdoor p5 Display Screen?
1. Strong visual impactThe large-sized, dynamic, and audio-visual integrated LED advertising can motivate the audience's senses in an all-round way,effectively convey information and guide consumption.
2. Wide coverage
Outdoor LED displays are generally installed in areas where people are concentrated, such as shopping malls. Through high-frequency communication with user groups, it stimulates consumers' strong desire to buy and improves brand awareness.
3. Long release period Outdoor P6 LED advertising display can be played around the clock. It is easier for the audience to see,it can better guide the potential customer crowd, and enable the merchant to achieve better publicity with less cost.
4. Posting information is simple and convenient
Connect to a computer through a data cable connection or wireless communication, and set up in the computer to publish advertising content, conveniently and quickly.
Connect to a computer through a data cable connection or wireless communication, and set up in the computer to publish advertising content, conveniently and quickly.
Product specification
| SMD P5 | ||||||||||||||
| Lamp size | 2727 | |||||||||||||
| Resolution/mm | 5 | |||||||||||||
| Pixel configuration | RGB 3 in 1 | |||||||||||||
| Pixel density/pixels/m² | 40000/m² | |||||||||||||
| Module resolution | 64x32 | |||||||||||||
| Module size/mm | 320x160 | |||||||||||||
| View distance | ≥2m | |||||||||||||
| Single point brightness adjust | Can be added | |||||||||||||
| Single point color adjust | Can be added | |||||||||||||
| White balance brightness | >8000cd/㎡ | |||||||||||||
| Color temperature | 6500K-9500K | |||||||||||||
| Horizontal view angle | 120(degrees) | |||||||||||||
| Vertical view angle | 60(degrees) | |||||||||||||
| Signal Process bit | 10 or 14 bit | |||||||||||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km | |||||||||||||
| Driving mode | Constant driving current | |||||||||||||
| Scanning mode | 1/8 | |||||||||||||
| Frame rate | 60Hz | |||||||||||||
| Refresh frequency | >4200Hz | |||||||||||||
| Control mode | Computer synchronous | |||||||||||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
| Out of control point | <1/10000 | |||||||||||||
| Working hours | ≥72hours | |||||||||||||
| Mean Time Between Failure | >5000hours | |||||||||||||
| Life time | 100000hours | |||||||||||||
| Life-all-white(brightness halving) | 50000hours | |||||||||||||
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ | |||||||||||||
| Maximum power:/㎡ | <1000W | |||||||||||||
| Average power:/㎡ | <280W | |||||||||||||
| Self-check technology | LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
| Remote monitoring | Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
| Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
| Luminous point width between centres | Deviation<3% | |||||||||||||
| Brightness uniformity | <10% | |||||||||||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
| Contrast | (1000:1) | |||||||||||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
| Humidity(working) | working:10-95% | |||||||||||||
| Humidity(storing) | storing:10-95% | |||||||||||||

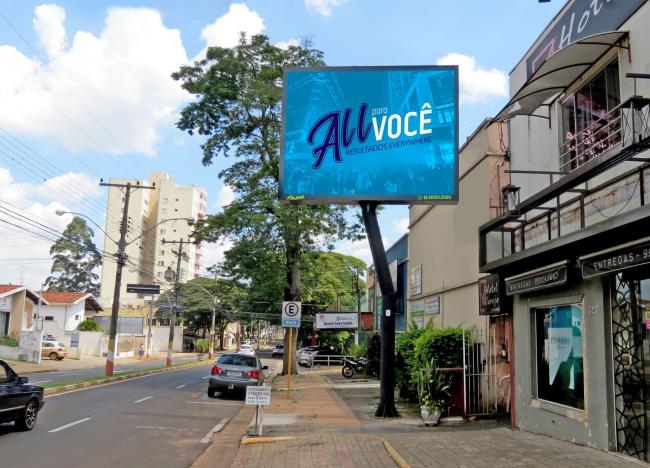

Our case
Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
Features
1. Seamless --- precision cabinet, light weight and more durable.
2. Quality LEDs --- with wide viewing angle to ensure vivid and sharp images and video.
3. High refresh rate and high gray scale --- to ensure color consistency and better images
Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
FAQ
Q1: Are you trading company or manufacturer ? A: Signic is a Professional and Integrated Manufacturer of R&D Different Kinds of LED Display Products .
Q2: What is the control system? How is it? A: We use Nova control system. Support cluster play and management. Support APP/ Phone/ WIFI/ Ipad/ Laptop/ PC/ Cloud control. It’s very easy and convenient to control the screen.
Q3. What kind of display do we provide? A:We have indoor/outdoor LED /rental LED display /LED stage/ Advertising LED display etc .for you choose.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test for 72hrs before delivery.
Q5:How about your Warranty Term?
A: 2-year warranty. Structure design, installation problem, program the screen, how to use the screen…don’t worry, we have professional after-sale team to solve your any questions after you placed an order.
Q6:How To Play The TVs On LED Display Panel?
A:LED Display has the Features of High Definition, High Brightness and Long Viewing Distance. It can play the videos clearly with a widely viewing scope. Sometimes, many customers want to show the TVs for live sports and news on the LED Display Screen. This article will show you how to play the TVs by LED Display Panel. 1.We need to prepare a TV Box or TV Card. if you have the TV Card, you can install it in the controlling computer, and play it by the led control system. 2.For the TV Box, we need a led video processor, the video controller can transfer the TV Signal to the DVI signal, and DVI signal to led sending card. 3.After we have DVI signal,we can play the TVs on the led display screen.it seems that is easy to control, right? So let us get start to show your TVs on the led display to enjoy the high definition videos.
