Portable Indoor Full Color LED Panel P3.91 Cabinet With Meanwell Power Supply led panel display
Price:
USD 1000-10000
MOQ:
1 SQM
Delivery Time:
7 working days after receive your payment
Brand:
SCX
Product Description
Small Pixel Pitch Video Screen P3.91 P4.81 P5.95 Cabinet Portable Indoor Video Led Panel Display With Meanwell Power
Features
1. Use Taiwan Jingyuan first-level LED chips
2. Pure gold wire is used inside the LED
3. The module frame and mask are made of large A-row material
4-layer PCB, copper plating thickness>18mil
5. Stainless steel screws are used for assembly
6. Quick and convenient disassembly and assembly
7. 3-5 years warranty
8. Energy saving 60%: low-frequency current drive, heat dissipation roller fan with automatic temperature control device.
9. Service life>11 years;
Specifications
| Unit Module | Item | Parameter |
| Model Number | HX-P4.81-13S | |
| Module size | 250mm*250mm | |
| Pixel pitch | 4.81mm | |
| Pixels Density | 43264dot/sqm | |
| Pixel configuration | 1R1G1B | |
| LED Package mode | SMD2121 | |
| Pixel resolution | 52dots(W)*52 dots (H) | |
| Max Power | 35W | |
| Weight | 0.65kg | |
| Drive type | Constant drive | |
| Scan mode | 1/13scan | |
| Port type | HUB75-A | |
| Brightness of white balance | ≥1500cd/m |
|
LED Cabinet |
Dimension | 500mm*500mm |
| Monomer Module Number | 4 | |
| Power supply | 5V/40A*1pcs | |
| Thermal discharge | fan 1pcs | |
| Pixel per cabinet | 104*104 | |
| Best viewing distance | 5M~40M | |
| Best viewing angle | 160°(W) 120°(H) | |
| Temperature |
storage:-35℃~+85℃ working:-20℃~+50℃ |
|
| Relative humidity | 10%-95% | |
| Thickness | 65mm |
| Power | Working voltage | AC110~220V±10% |
| Average Power consumption | 230W/sqm | |
| Max.Power consumption | ≤560W/sqm | |
| Current | ≤20mA(single LED) | |
| Control system | CPU | Pentium4 or above P4 |
| Operation system | WIN98/2000/NT/XP/WIN7 | |
| Control method | Synchronization | |
|
Main technical parameter |
Driving device | Constant drive IC |
| Refresh frequency | ≥1920HZ | |
| Grey scale/colors | 4096gray level/16.7M colors | |
| MTBF | ≥9000hours | |
| Power switch | Automatic switch | |
| Display Mode | ≥800*600/1024*768 |

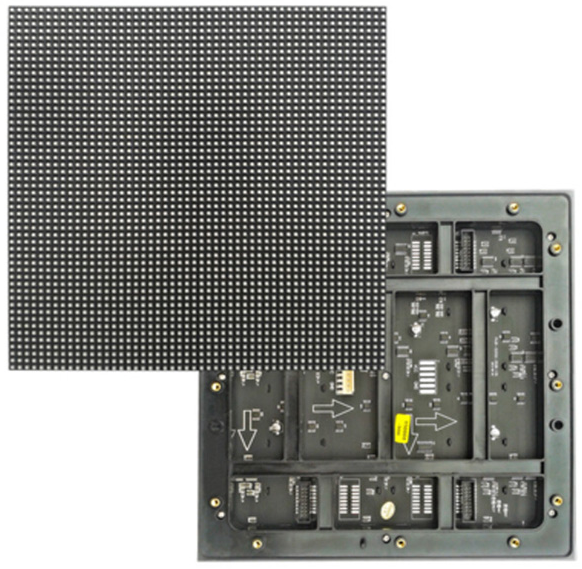

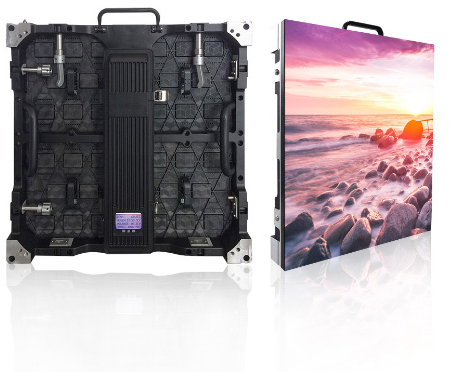

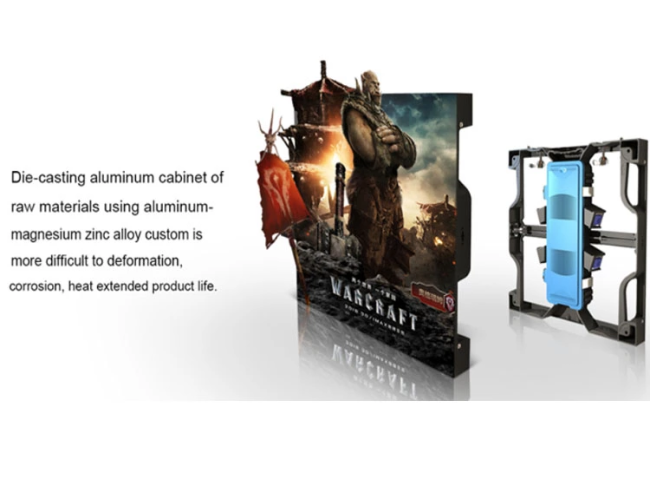

Detailed Picture

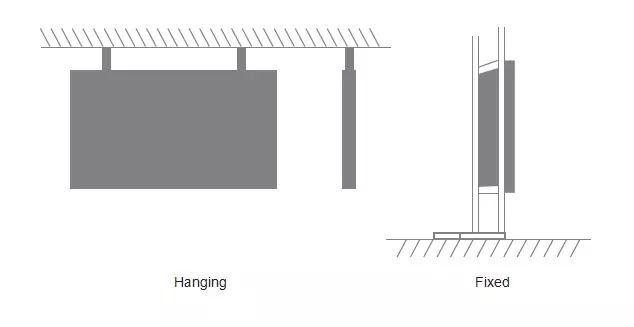

Installation

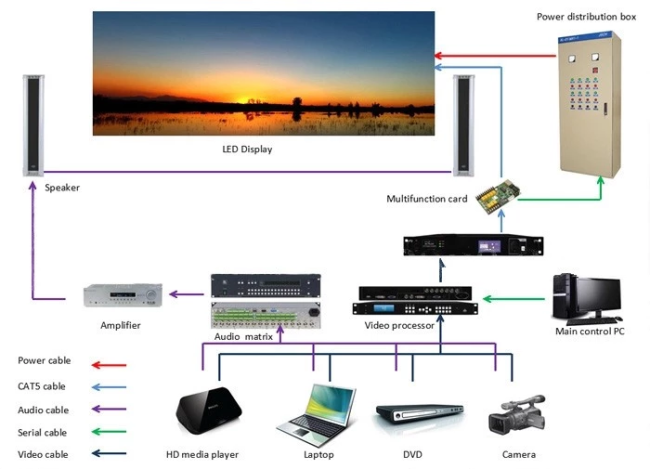

Connection
Our Service
1. Warranty
1) We provide warranty of all components for 3 full years. During this time, we will replace or repair our goods for free if there is something wrong with them.
2) We will provide maintenance for a lifetime and charge for the raw materials only.
2. Technology Training
1) We provide the technology training for free, which contains the operation training and maintenance
2) training in the factory.
3) We will send our engineers to your country by negotiation.
3. Maintenance and Consultation
1) We provide full maintenance for a lifetime and charge for the raw materials only.
2) We also provide lifetime consultation by E-mail, Skype, WhatsApp or other ways for free.
4. Documents and Certification
1) We provide the operation manual, software, test report and so on.
2) We can also provide all kinds of certification such as CE, LVD, RoHS and so on.
5. CAD Drawing and Fixing
1) We provide CAD drawing on how to fix up the display for free and some other expert suggestion.
2) We will send our engineers to your place if we are expected after our negotiation.
6. Additional Service
1) We provide you the forwarding information, and some other information such as flight box, structure
