Pixel Pitch 2mm LED Video Wall HD P2 Indoor LED Screen 640x640mm Die-casting Aluminum Panel LED Display Screen
Pixel Pitch 2mm LED Video Wall HD P2 Indoor LED Screen 512x512mm Die-casting Aluminum Panel LED Display Screen
lightweight 512x512mm cabinet ICN2153 high refresh 3840Hz front service indoor full color SMD led screen p2
1) High refresh rate , high brightness and high contrast which make the screen without any delay and smear phenomenon
under directly sunlight.
2)Energy saving:low electric current,high-bright lamps,equipped with PFC switching power supply that save 30% electricty.
3)The brightness can be adjustable to meet the need of changing environment
4)Wide viewing angle: The horizontal and vertical viewing angles are so wide that it is suitable for wide horizontal
5)Environment protection, antistatic, dust-proof, good heat dissipation, cost-effective .
6)Error detection and monitoring:it can monitorthe inner temperature,voltage,cooling fans etc and error detection automatically.
7) High reliability: using distributed scanning technology and module design technology that make higher reliability and stability.
8) Steady and reliable system:with strong antinterference ability and long service life that can continually work for over 24 hours, and it's easy to operate the system.
9) Favorable effect: using dot to dot calibration technology makes the image clearer and the layering stronger
10) Convenient installation and maintenance of display modules
♦ Product specification
| indoor SMD P2 | ||||||||||||||
| Lamp size | 2121 | |||||||||||||
| Resolution/mm | 2 | |||||||||||||
| Pixel configuration | RGB 3 in 1 | |||||||||||||
| Pixel density/pixels/m² | 250000/m² | |||||||||||||
| Module resolution | 64x32 | |||||||||||||
| Module size/mm | 256*128 | |||||||||||||
| View distance | ≥2m | |||||||||||||
| Single point brightness adjust | Can be added | |||||||||||||
| Single point color adjust | Can be added | |||||||||||||
| White balance brightness | >2000cd/㎡ | |||||||||||||
| Color temperature | 6500K-9500K | |||||||||||||
| Horizontal view angle | 120(degrees) | |||||||||||||
| Vertical view angle | 60(degrees) | |||||||||||||
| Signal Process bit | 10 or 14 bit | |||||||||||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km | |||||||||||||
| Driving mode | Constant driving current | |||||||||||||
| Scanning mode | 1/16 | |||||||||||||
| Frame rate | 60Hz | |||||||||||||
| Refresh frequency | >1200Hz | |||||||||||||
| Control mode | Computer synchronous | |||||||||||||
| Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
| Out of control point | <1/10000 | |||||||||||||
| Working hours | ≥72hours | |||||||||||||
| Mean Time Between Failure | >5000hours | |||||||||||||
| Life time | 100000hours | |||||||||||||
| Life-all-white(brightness halving) | 50000hours | |||||||||||||
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ | |||||||||||||
| Maximum power:/㎡ | <1100W | |||||||||||||
| Average power:/㎡ | <280W | |||||||||||||
| Self-check technology |
LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
| Remote monitoring |
Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
| Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
| Luminous point width between centres | Deviation<3% | |||||||||||||
| Brightness uniformity | <10% | |||||||||||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
| Contrast | (1000:1) | |||||||||||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
| Humidity(working) | working:10-95% | |||||||||||||
| Humidity(storing) | storing:10-95% | |||||||||||||

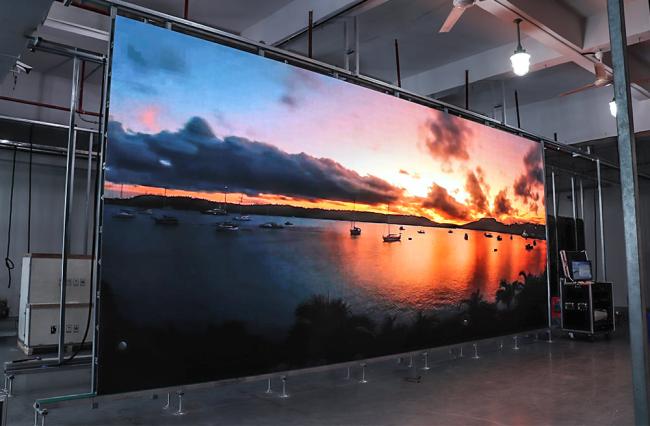

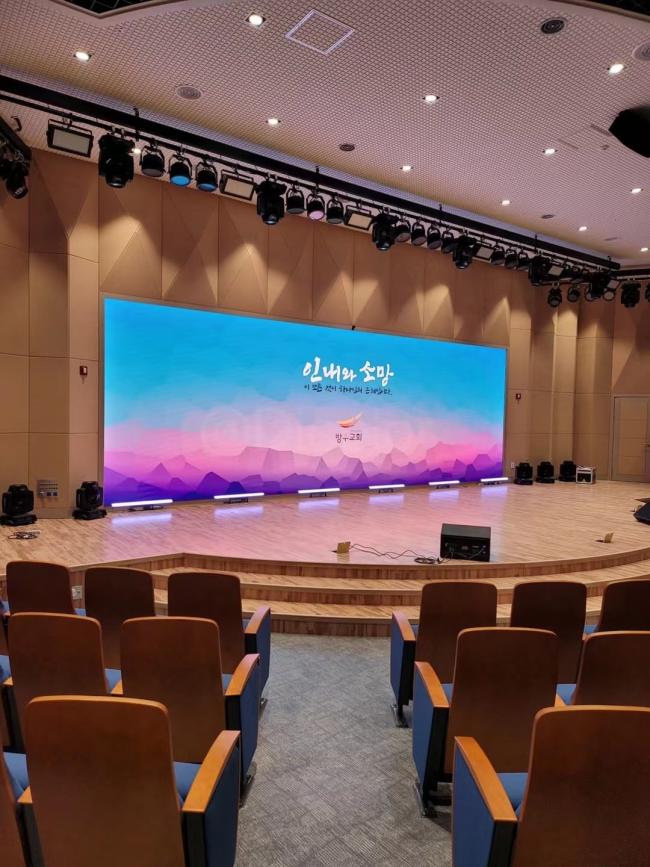

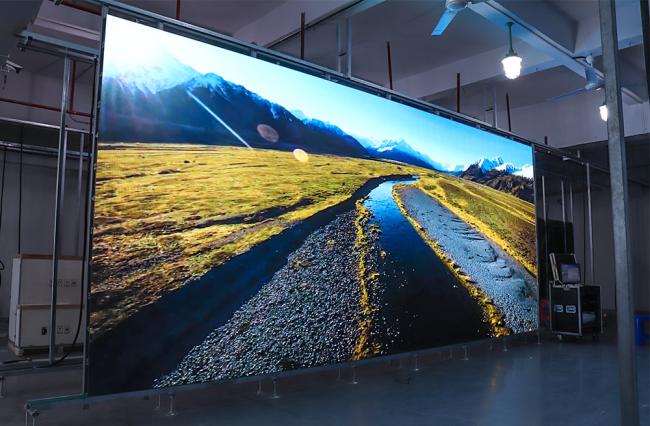

Our case
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
Description
1. The LED screen with multi-use & various creative shapes
Magic Stage series LED display can be easily used as sky backdrop curtain, dance floor, stadium screen, a screen that is avaliable both indoor and outdoor, a screen with various creative shapes, etc. It shows infinite possibility, it can bring you the maximum value of LED.
1.Multi Scene Application
Magic Stage series led screen can be used as the indoor and outdoor stage LED display, dance floor, stadium LED display, sky backdrop curtain, fixing advertising LED display, showcase LED display, etc. And it would be more convenient and fast, with using "Magic Stage Multi-function Mounting Frame".
2.The LED Display with Multiple Creative Shapes
With unique multi holes design, together with easy operating connectors, can make multiple creative shapes such as ±15°Curving, up and down, left to right and front and back dislocated installation. Apply with right-angle screen, triangle screen and sector screen to achieve a wide range of creative designs. Not only can make flat screen, dislocation and arch shape, but also the flat and curve polygon, sector, etc. Break through the limitation of a traditional idea of stage design, which is the implementor of innovation designs.
3.HD Visual Feast, Adjustable height, Convenient maintenance
4.Simple and fast installation
| Payment terms: |
35% deposit before production, 65% balance before shipping -T/T: -Paypal -Western Union -Escrow |
| Packing: |
-Standard Export Carton with fully Polyfoam or Pearl Wool -Flight case; -Anti-shaking wooden case |
| Shipping: |
LED module: 3 to 5 working days upon receiving deposit payment LED display: 5 to 8 working days upon receiving deposit payment |
| After-Sales-Service: |
-Lifetime with professional engineer support for free. has quality problem |
FAQ
Q1. Can I have a sample order for led Screen?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led screen?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led screen product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
