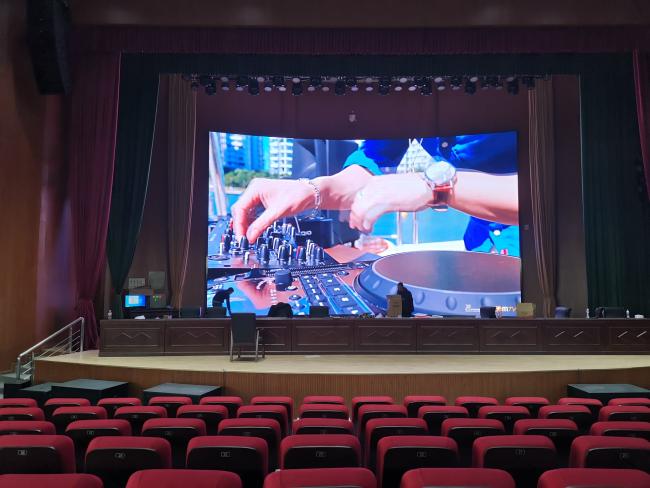

SMD 512mmx512mm Cabinet LED display Indoor high resolution P4 full color led screen display for stage rental
SCX LED High Refresh Rate Good Quality P4 SMD Die-casting Aluminum LED Panel Screen/Stage Rental P4 LED Screen Indoor and outdoor
Product Advantage
Famous Brands Raw Material Selection
1)LED: well-known international brand,with wide viewing angle ,little attenuation ,good heat dissipation, and vivid colors.
2) Driving IC: famous brands such as, Taiwan MBI, Japanese Toshiba, avoidable the defective
phenomena, such as dark bright, virtual light and so on.
3) Power supply: industrial-strength brand.The power maximum power resere of 20% the space , the range of voltage fluctuation is less 5%, high stability.
4) Connector: Aerial grade brands ensure the stable transmission of power and signal.
5) PCB Board: adopt 4-layer design.
6) Easy installation:100 pieces of cabinets' installation can be finished in one hour by one person.
The replacement of any cabinet can be done within 50 seconds
| Technical parameters | Unit | Parameters values |
| Pixel pitch | MM | 4 |
| Panel size | MM | L256*H128*T12 |
| Physical density | dots/M2 | 62500 |
| Pixel configuration | R/G/B | 1,1,1 |
| Driving method | 1/16scan | |
| LED Encapsulation | SMD | 2121 |
| Module weight | KG | 0.2 |
| Cabinet size | mm | Customized |
| Viewing angle | Deg. | 140° |
| Option distance | M | Apr-50 |
| Maximum power | W/ M2 | 1000 |
| Refresh frequency | HZ/S | ≥1920 |
| Equilibrium brightness | CD/ M2 | ≥1800 |
| Working temperature | 0C | -25~50 |
| Working humidity | RH | 10%~95% |
| Working voltage | VAC | AC100~240V |
| Control system | Nova Star or LINSN control system | |
| Life | HOURS | 100000 |
| IP rating | The back IP40,The front IP31 |
| Payment terms: |
35% deposit before production, 65% balance before shipping -T/T: -Paypal -Western Union -Escrow |
| Packing: |
-Standard Export Carton with fully Polyfoam or Pearl Wool -Flight case; -Anti-shaking wooden case |
| Shipping: |
LED module: 3 to 5 working days upon receiving deposit payment LED display: 5 to 8 working days upon receiving deposit payment |
| After-Sales-Service: |
-Lifetime with professional engineer support for free. has quality problem |
Our Service
We have an excellent customer service system with a well-trained, strong and skilled service team to provide customers with a comprehensive pre-sales service, product services and after-sales service.
Our customer service department has more than a dozen highly skilled and experienced technical support engineers, who are all in charge of the technical support of all LED display products we provide all over the world.
We are continuously improving upon our level of service and quality to quickly and effectively meet customer needs and guarantee their benefits and interests.
Service Concept
We believe in taking the initiative, maintaining honesty and trustworthiness, which means we will respond quickly to customer questions and do everything possible to meet customer demands.
Service Content
1. 24-hour hotline service, including counseling and technical guidance.
2. On-line service.
3. Failure maintenance of LED panels.
4. Free professional technical training
5. Paid software upgrade.
6. Warranty service.
7. Engineering technical service.
Warranty Period
Each of our LED display products comes with at least three years warranty and a lifetime maintanance services.
