3840Hz high refresh Kinglight black SMD1515 full color led panel 480x480mm P2.5 indoor led screen
LED Display Screen P2.5 Indoor HD Full Color SMD2121 480x480mm 192x192Pixel 1/32 Scan Die Casting Aluminum Cabinet
3840Hz high refresh Kinglight black SMD1515 full color led panel 480x480mm 500x500mm P2.5 indoor led screen
Features:
2. User-friendly design, more convenient installation, more efficient and secure; High strength, high toughness, and deformation; More reliable cabinet patchwork and cable connection,
3. Cabinets adopt rapid assembling sets, Which can be beautiful but also a real rapid disassembling.
4. Good thermal design. Taking structural heat emitting to keep the cabinet a excellent heat dissipation even no fan installation.
5. The entire cabinet with die casting aluminum alloy material is more lightweight and practical.
6. Compact base design, so that the whole screen space can be smaller a lot.
7. Higher IP rating; New system, High refresh rate, High brightness, True color output; Breathtaking gray level
8. Low. Has excellent heat dissipation design and performance. It is low noise and doesn't need external fan or air-condition. With the features of lightweight and low power consumption, it can reduce the labor cost of installation and operating cost.
9. The same size cabinet can be compatible with different specification displays of different DOT pixels. (P3.9, P4.81, P5.2, P6.25)
Module Parameter:
| Pixel pitch | 2.5mm |
| Pixel configuration | 1R1G1B |
| LED type | 3-in-1 SMD2121 |
| Module size | 160*160mm |
| Module resolution | 64*64dots |
Cabinet Parameter:
| Cabinet size | 480*480*90mm |
| Cabinet material | die-casting aluminum cabinet |
| Cabinet weight | 9.73kg+/-0.05kg |
| Cabinet resolution | 192*192dots |
| Ingress protection | Front/Rear IP65/IP54 |
Whole Screen Parameter:
| Pixel density | 160000dots/m² |
| Brightness | ≥2000cd/m² |
| Viewing angle | H≥120° V≥120° |
| Min.viewing distance | 3m |
| Max.power consumption | 900W/m² |
| Avg.power consumption | 400 W/m² |
| Working voltage | 110~220VAC±15% |
| Interface | HUB75 |
| Colors | 16.7millon colors |
| Gray level | 14-16bits |
| Frame frequency | ≥60frames/s |
| Refresh rate | ≥60Hz |
| MTBF | ≥10000 hours |
| Lifespan | ≥100000 hours |
| Protective function |
Over-heat/Over-load /Power-down /Power-leakage /Lightning-protection etc. |
| Operating temperature | -10℃ ~ +40℃ |
| Operating humidity | 10-80% no condensation |
| Storage temperature | -20℃ ~ +60℃ |
| Storage humidity | 10-85% no condensation |
Control System Parameter:
| Video signal (with video processor) | AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP |
| Color temperature | Adjustable by software |
| Brightness level | 256 levels, automatic adjustment by software |
| Control way |
Computer, video-synchronous, real-time, off-line, wireless, internet etc. |

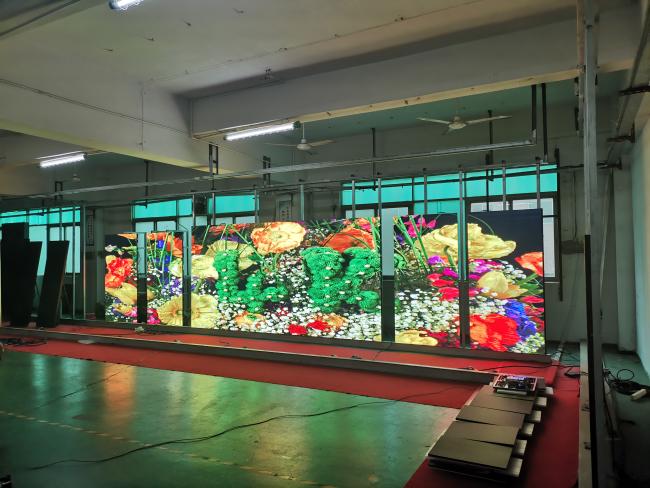

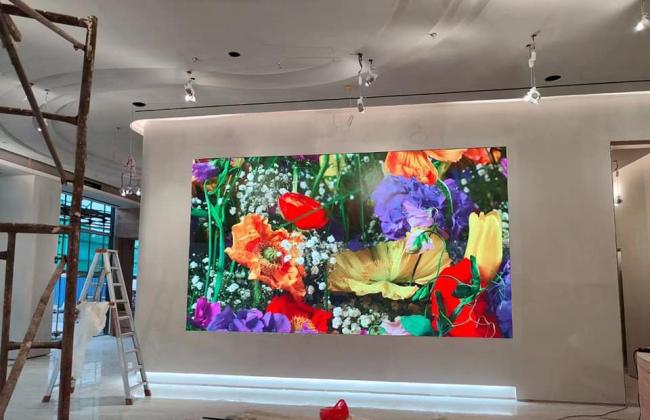

Our case
Plywood Case Package:
In usually,4pcs cabinet pack into one case,this is for indoor fixed installation led display
3pcs cabinet pack into one case,this is for outdoor fixed installation led display
Both for shipping by Air or by Sea
Flight Case Package:
9pcs cabinet pack into one case,this is for rental led display use,with convenient wheels and can move anytime ,for long time use.
Eachinled has a perfect service system, including pre-sale service, in-sale service and after-sale service. To provide high quality service for our customers, we train every salesman with necessary product maintenance knowledge and organized a Technology Supporting Department with a group of excellent and professional engineers. Any problem you can contact us at any time you like.
Pre-sale service:
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
FAQ
Q1. How can I place the order?
Firstly, please provide the details of your requirements as clear as possible, so we can send you the offer at the first time.
Q2. What if I don't know how to install the screen?
a. We will provide your details drawing for installation led screen,But you need provide us on-site picture for installation place.
b. Training 2 people in the factory.
c. We can send our engineers to your country to guide how to install the screen.
Q3. What if I don't know how to maintain the screen?
We will provide you the operation manual, software when you place the order and also we can remote to help you to adjust the software by teamviwer.
Q4. How to deliver the my goods?
It denpens on your budget and time you need the led screen. Regularly, if the quantity is less, we guggest to deliver by air,otherwise by sea to save the costs..
