MBI 5124 SMD1010 1300cd/M2 P3.91 Curved Stage Led Display full color led display
Indoor Rental Curve Stage Led Screens Display Full Color P3.91 Led for Live Events Concerts Conference
Stage Led Screens Features
1. High quality SMD1010 black body lamps provide 160°/160° (horizontal / vertical) viewing angel make sure you can watch it in any directions.
2. Cabinet is made by high precision die-cast aluminum alloy also first-class CNC machines to guarantee the screen is seamless and flatness like a mirror.
3. Magnetic module design for easy replace and maintenance from t he front.
4. High quality connector integrate power and signal all in one. Simple, fast, and more stable than traditional modules, client can use it without worries.
5. Equipped the high quality multi-functions connector, could hanging more than 20 cabinets in vertical.
Could hanging with hanging beam, also standing install with support frame. Installation and dismantle with in few second each cabinet, saveyourtime and labor.
Stage Led Screens Description
| Pixel Pitch | 3.91mm |
| Pixel Density | 65410 dots/sqm |
| Color Configuration | 1R1G1B |
| LED Package | SMD2121 |

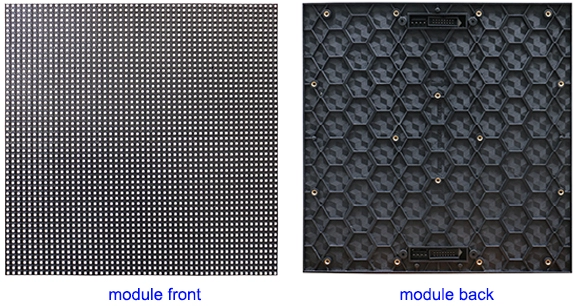

| Module Size | 250mm x 250mm |
| Module Resolution | 64dots x 64dots |
| Drive Mode | 1/16 Scan |
| Cabinet Material | Die casting Aluminum |
| Led Color | Black |
| Standard Cabinet Size | 500mm x 500mm |
| Cabinet Weight | 7KG |
| Brightness | ≥1300 cd/sqm, adjustable by software |
| Viewing Distance | 4m-40m |
| Viewing Angle | H: 120°; V:120° |
| Refresh Rate | 3840HZ, adjustable by software |
| Frame Rate | 120frame/s |
| Grey Scale | 16.7M colors(Synchronized) |
| Color Temperature | R.G.B brightness 256 level adjustable |
| Power Input | AC110V/ 220V ±10%, 50HZ |
| Max Power Consumption | 800W/sqm |
| Ave. Power Consumption | 300W/sqm |
| Storage Temperature | -30℃~+70℃ |
| Working Temperature | -20℃~+50℃ |
| Blind Spot Rate | <1/10000 |
| MTBF | >10,000 Hours |
| Life Span | >100,000 Hours |
| Waterproof Level | IP43 |
| Operating Humidity | 10%~90% RH |
| Control Method | Synchronous, Asynchronous, 3G,WIFI,USB |
| PC Display Resolution | 1280x1024 |
| Control PC | With DVI Graphic card |
| Operating System | Win 98, Win2000, XP, Win7, Win8, Win10 |
| Video Signal Mode | RF, S-Video, RGB, RGBHV, YUV, YC etc |
| Certificate |
CE, RoHS |

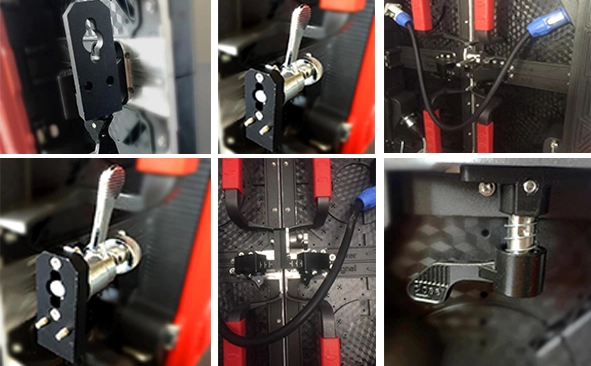

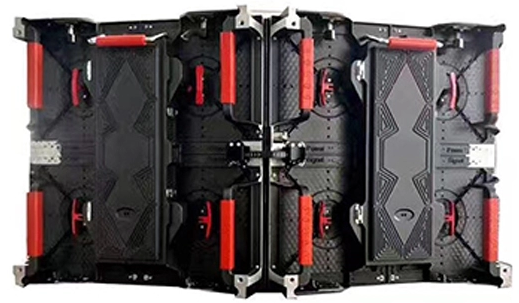

Stage Led Screen Pictures
Package And Shipping
Packaging:
1:Flight Case(6 or 8 cabinets in one case)
Gross Weight:100KG
Size:768mm*560mm*768mm
2:Wooden case(6 cabinets in one case)
Gross Weight:180KG
Size:1120mm*585mm*930mm
Company Information
Shenzhen SCXK Electronics Co.,Ltd has the standard new factory,and about 100 employees.
We have outstanding R&D department and after-sell service workers,and separately design ability.
Our product mainly included led single dual color display,led indoor full color display;led outdoor full color display,led wireless car used screen etc.It can be used on the shopping more,bank,bus station,train station,Center of downtown,airport,school,factory,bus,taxi and son on.
We adapt many methods and very good after-sell service to sell our product all over the world.
Whenever and wherever we are,we always take the principle that is:professional makes good quality,good price product market to provide perfect product and service for our customers.
FAQ
1.Q:Are you a factory or trading company?
A:We are factory,located in Dalang,Longhua District .
2.Q:What kind of payment terms you accept?
A:We accept T/T,Western Union,MoneyGram etc.
3.Q:What's packaging?
A:1.Flight case packaging
2.Wooden case packaging
3. 36pcs in one case packaging
4.Customized packaging
4.Q:Do you have CE/ROHS/FCC certificates?
A:Yes, we offer the CE & ROHS/FCC certificates ,If you need any other certificate like SASO,BIS, SAA etc, we also could provide ,usually need charge part of cost .
5.Q:What's the shipping method,shipping time?
A:Our products could be shipped by Sea, by Air, and by Express.
by sea:15-30 days; by air:3-5 days ;by express:3-5 days
