Indoor p2.5 Full Color LED Display with 640x480mm cabinet 3840hz refresh rate
SCX LED Custom Indoor p1.8 P2 P2.5 P3 P4 flexible led panel display screen soft led module
Module Parameter:
| Pixel pitch | 2.5mm |
| Pixel configuration | 1R1G1B |
| LED type | 3-in-1 SMD 2121 |
| Module size | 160x160mm |
| Module weight | 0.35kg |
| Module resolution | 64*64dots |
| Module quantity per cabinet | 9pcs |
Cabinet Parameter:
| Cabinet size | 480x480mm |
| Cabinet material | die casting aluminum |
| Cabinet weight | 6.6kg |
| Cabinet resolution | 192x192dots |
| Ingress protection | Front/Rear IP65/IP54 |
Whole Screen Parameter
| Pixel density | 160000 dots/m² |
| Brightness | ≥1500 cd/m² |
| Viewing angle | H≥120° V≥120° |
| Min.viewing distance | 2.5m |
| Max.power consumption | 900W/m² |
| Avg.power consumption | 30 W/m² |
| Working voltage | 110~220VAC±15% |
| Interface | HUB75 |
| Colors | 16.7millon colors |
| Gray level | 14-16bits |
| Frame frequency | >1000frames |
| Refresh rate | >900Hz |
| MTBF | ≥100,000 hours |
| Lifespan | ≥100,000 hours |
| Protective function |
Over-heat/Over-load /Power-down /Power-leakage /Lightning-protection etc. |
| Operating temperature | -10℃ ~ +40℃ |
| Operating humidity | 10-80% no condensation |
| Storage temperature | -20℃ ~ +60℃ |
| Storage humidity | 10-85% no condensation |
Control System Parameter:
| Video signal (with video processor) | AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP |
| Color temperature | Adjustable by software |
| Brightness level | 256 levels, automatic adjustment by software |
| Control way | Computer, video-synchronous, real-time, off-line, wireless, internet etc. |
Main Features
1) The flexible LED display can be mounted on any surface, suitable for artistic modeling like cylinder - curved - wave shapes.
2) Good for Surfaces display of stage background, exhibition hall, indoor conference room, etc.
3) Adopts strong magnetic installation with direct adsorb power, which is convenient for installation and maintenance. High safety and stability.
4) The PCB board is flexible and soft, the mask and bottom case are made of rubber.
5) The connection between the modules uses a high-end HDMI connector.
6) Much reliable and stable with current distributed scanning and modular design.

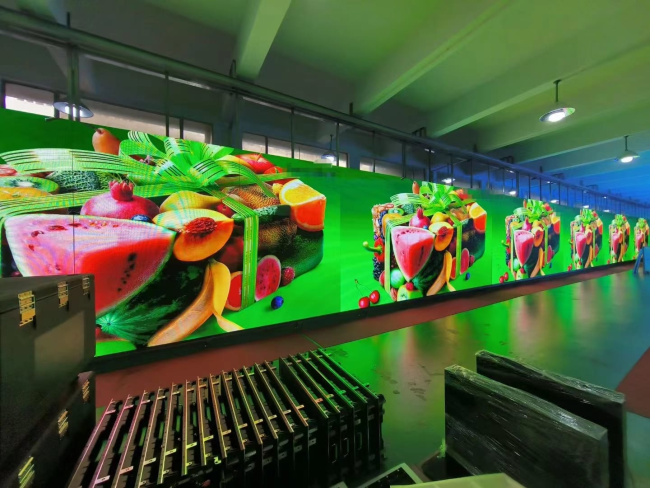

Our case
Certificate
Packaging and shipping
Packing selections: Wooden case / Flight case / Carton box
Shipping methods:
a. small quantity, via courier, such as FedEX, EMS, UPS, SF, TNT and DHL.
b. large quanatity,
1) by air (urgent order)
2) by sea (not urgent order)
FAQ
Q: Can I get some samples?
Q: Payment terms?
Q:How about the average production time?
Q: What is the warranty period?
Q: Do you have products in stock?
A: Yes, welcome to buy our ready goods.
Q: Freight cost?
A: Different cost for different shipping method, buy we will choose the cheapest and safest one for you.
Q: How do you make the quality control?
A: Quality is the priority. Every product will be fully assembled and carefully tested before packing and shipping.
Q: How can I get the technical support?
A: We can provide you with team viewer assistance by video or send our professional engineer to your site to offer you on-site guidance.
Q: Is it available to print customer's logo on the led display?
A: Surely, just send us the logo and confirmed the relevant things.
Our service
Eachinled has a perfect service system, including pre-sale service, in-sale service and after-sale service. To provide high quality service for our customers, we train every salesman with necessary product maintenance knowledge and organized a Technology Supporting Department with a group of excellent and professional engineers. Any problem you can contact us at any time you like.
Warranty:
We guarantee all our displays, modules, parts for two full years. During this time, we will replace or amend all our goods for free if there is something wrong with them. We provide lifetime maintenance and charge only for the raw materials. We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory. We also provide the operation manual, software, test report and so on. Any associated CAD drawing on how to fix up the display and some other expert suggestion will be provided.
Technology Training
1. We provide the technology training for free, which contains the operation training and maintenance training in the factory.
2. We will send our engineers to your country by negotiation.
Documents and Certification:
1. We provide the operation manual, software, test report and so on.
2. We can also provide all kinds of certification such as CE, UL and so on.
CAD Drawing and Fixing
1. We provide CAD drawing on how to fix up the display for free and some other expert suggestion.
2. We will send our engineers to your place if we are expected after our negotiation.
Additional service:
We provide you the forwarding information, and some other information ,such as flight box, structure information for your reference for free.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
