P4 IECEE SABER Indoor Led Video Screens SMD2121 IP31 For Stage full color led display screen
Full color indoor P4 large led video screens Highdefinition led display for stage live events
Indoor Full Color Led Display Product Features
1) High contrast rate up to 5000:1 by using black LED
2) The new structure design enables diversified installation to meet the hanging-up and stacking requirements.
3) Due to the light weight and low power consumption, it can reduces the labor cost,operating cost and
transportation cost
4). Good thermal design, excellent heat dissipation even no fan installation,
5) The same cabinet size can be compatible with different pixel pitches If you want to
update the product, you only need to change the module.
6).It is low noise, can be installed in office and meeting room.
Indoor Full Color Led Display Specifications
| Item | Specification |
| Pixel Pitch | 4mm |
| Pixel Configuration | 1R1G1B |
| LED Type | SMD2020 or SMD2121 |
| Module Size | 256mm x 128mm |
| Module Resolution | 64dots x 32dots |
| Module Weight | 0.4 KG |
| Grey Scale | 16 bit |
| Refresh Rate | >1920Hz |
| Scan Type | 1/16 Scan |
| Brightness | 1400cd/m2 or 1400 nits |
| Viewing Angle(Horizontal/Vertical) | 140/140 degree |
| AC Input Voltage | 110-240V |
| AC Input Frequency | 50/60 Hz |
| Power Consumption(Max./Ave.) | 1000/300W/m2 |
| Storage Temperature | -40 ~ +60 degree |
| Operation Temperature | -40 ~ + 40 degree |
| IP Rating | IP31 |
| Lifetime at 50% brightness | 100,000 hours |
| Control Distance | CAT5 cable:<100 m; Single mode fiber:<10 km |
| Signal Input Format | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI |
| Operating system | Windows (2000/XP/Vista/7) |
| Control System | Nova/Linsn/XIXUN/LUMEN |

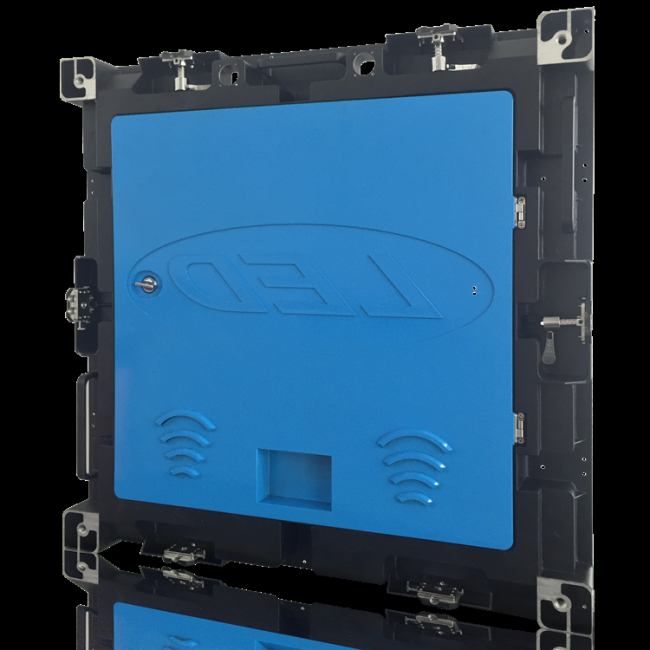

Indoor Full Color Led Display Details

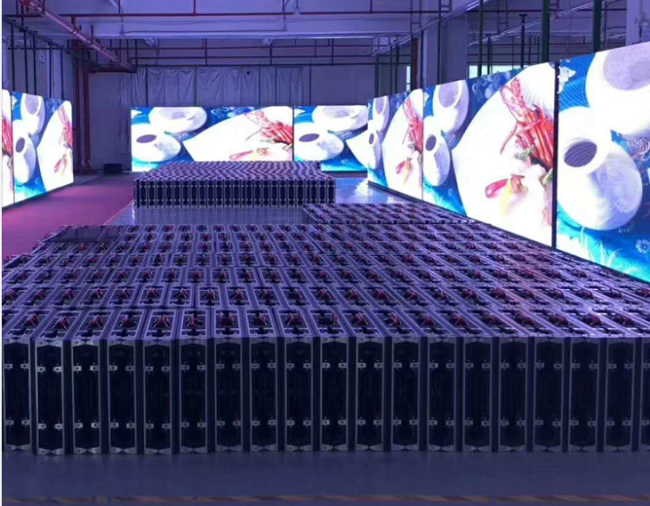

Indoor Full Color Led Display Projects
Our Service
FAQ
Q1. Can I have a sample order for led display?
A: Yes, we welcome sample order to test and check quality. Mixed samples are aceptable.
Q2. What about the delivery lead time?
A: About 22 days after receiving payment.
Q3. Do you have any MOQ limit for the order?
A: Low MOQ, 1pc led panel for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 4-8 days to arrive. Airline and sea shipping also optional. And you can also designate shipping companies.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the solution and places deposits for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7. Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
Q8. How to deal with the faulty?
First, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Second, we offer complete set of accessories for fixing up cabinets and 1 % extra spare parts of the total quantity for maintenance overhaul
Third, during the warranty time, we will take responsibility to change or repair defective parts. The buyer pay the shipping of returning of defectives, and we pay the shipping of sending back.
Q9. Do you offer installation services?
We provide on the spot installation instruction service for the buyer, including:
A, To check whether the bracket and frame are in conformity with the technical requirements of the structure scheme the seller providedB, To instruct the buyer's technicians to install the LED module cases and connection among those cases
C, To experiment and adjust the whole panel, examine and repair the defective devices, guarantee panel in secure operation.
D, To train the buyer's technicians.
For spot installation, the service is 100 usd/day, and the buyer must pay our technician's living and traffic fee during the installation period.
