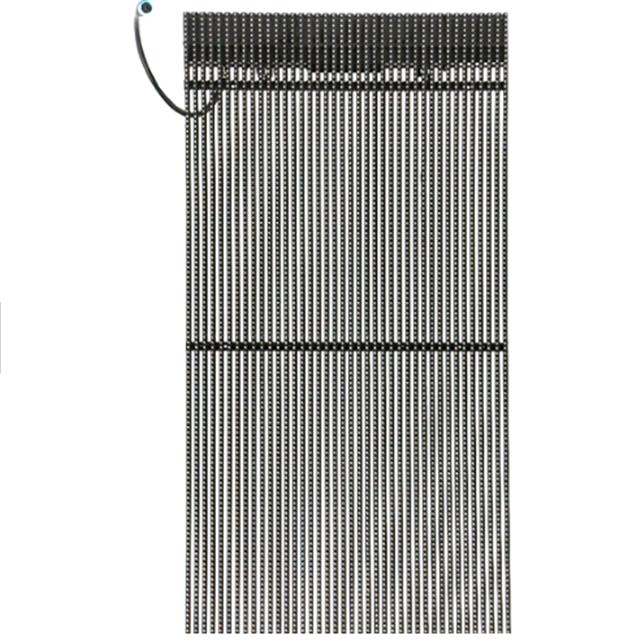

P15.625 P31.25 6000cd/m2 Transparent LED Screen 340w/sqm CCC LED Curtain Display
Building Advertising Screen Transparent P15.625 P31.25 Outdoor Mesh LED Screen LED Curtain Display
Shenzhen Shichuangxinke Electronic Co., Ltd is specialized in the manufacture of indoor & outdoor LED Display. The group undergoes its own research, development, manufacturing, selling & after sales service & sales team.
The group has followed the global focus on "Energy-Saving & Environmental-Protection" since its establishment, bringing together a vast amount of scientific research engineers & management specialists. The whole group is motivated by "Innovation & Technology with a Pioneering Spirit".
Following years experience of focusing on energy-saving, environmentally-friendly, economical and simplicity of installation, our products win a good reputation from our clients.
| Outdoor Advertising Curtain Led Display CP15.625 | ||||||||
| LED Module | Pixel Pitch | 15.625mm | ||||||
| LED Cabinet | Cabinet Size | 500mm*1000mm | ||||||
| Cabinet Resolution | 32x64 pixels | |||||||
| Cabinets Material | Die casting Aluminum Cabinet | |||||||
| LED Display | Pixel Density | 4096pixels/sqm | ||||||
| Drive IC | MBI5024 | |||||||
| Power Supply | Series connection | |||||||
| Brightness | >5000cd/sqm | |||||||
| Display Color | 16.7million | |||||||
| Viewing Angle | 110°(Horizontal),50°(Vertical) | |||||||
| Best Viewing Distance | 10m~500m | |||||||
| Max Power Consumption | 850w/sqm | |||||||
| Average Power Consumption | 340w/sqm | |||||||
| Refresh Rate | 16bit ≥2880; 14bit ≥4800; 10bit ≥9600 | |||||||
| Input Voltage | AC220V/50H or AC110V/60H | |||||||
| Output Voltage | DC5V 60A/80A | |||||||
| Grey Scale Levels | 16bit | |||||||
| Installation Way | Hanging / Stacking / Permanent Installation | |||||||
| Drive IC | Taiwan MBI/Domestic High refresh rate IC(Optional) | |||||||
| Life-span | 100,000 hours | |||||||
| Protection Level | IP30 | |||||||
| Failure percentage of leds | less than 0.0003 | |||||||
| Working Temperature | -10～40°C | |||||||
| Drive Mode | 1/8 scan constant current | |||||||
| Working Humidity | 10%~90% | |||||||
| LED Encapsulation | Self-development Side view LED lamp | |||||||
| Eliminate Ghost Line | Yes | |||||||
| Working Voltage | DC5V | |||||||
| weight | 6.5kg | |||||||
| Control method | Synchronization & Asynchronization | |||||||
| Control System | Control System | Mooncell/ Nova/ Linsn(Optional) | ||||||
| Software | LED Studio | |||||||
| Input Signal | DVI/HDMI/DP | |||||||
| PC Operating system | Microsoft Windows 7, 98, 2000, XP and Vist | |||||||
Its brightness can arrivel 6000cd/sqm at least.

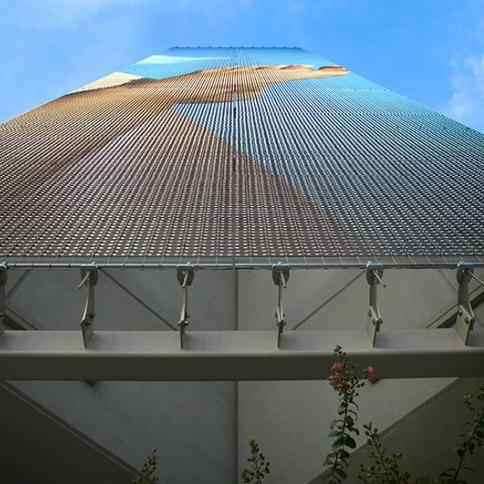

Actual Project
Methods for Quality Assurance
a. Aging testing :100% fully test Condition: 72 hours with 256 gray level
b. Vibration Testing:Condition: 3-5 min up and down in 5mm range
Advantage
1. OEM service,No MOQ
2. Easy installation,regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5. Wooden case or flight case,you are the boss.
6. Your reply will be replied within 24 hours.
7. Fast delivery: Usually 6-8 working days
8. Excellent R&D team,factory Price and assure you quality goods.
2) 100% Western Union in advance.
♦ Why choose us:
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.
♦ FAQ
What kind of payment terms you can accept ?
We can accept T/T and Western Union.
What about your Led Display quality ?
Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of
our products continuity.
What is your delivery time ?
Within 7-35 days according to your area and quantity.
Is your LED display competitive ?
Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure
our led display’s competitiveness.
