High Resolution P2.5 Magnet Video Indoor LED Screen 640x480mm Cabinets ，3840hz refresh rate，front service
1: Are you the manufacturer or trading company? and where is your factory?
A: we are professional manufacturer devote in producing Led outdoor, Led indoor display, rental display, stadium screen,advertising screen and stage screen etc. You are warmly welcome to visit our factory to learn the technical and maintenance skillsand everything you need in our factory.
Q2:May be we will need some samples, what is the lead time of samples and lead time of order?
A2:We will arrange your sample of the charges within 1-2 days and arrange your order within 5-12 days after receiving your salary.
Module Parameter:
| Pixel pitch | 2.5mm |
| Pixel configuration | 1R1G1B |
| LED type | 3-in-1 SMD2121 |
| Module size | 160*160mm |
| Module resolution | 64*64dots |
Cabinet Parameter:
| Cabinet size | 480*480mm |
| Cabinet material | die-casting aluminum cabinet |
| Cabinet weight | 9.73kg+/-0.05kg |
| Cabinet resolution | 192*192dots |
| Ingress protection | Front/Rear IP65/IP54 |
Whole Screen Parameter:
| Pixel density | 160000dots/m² |
| Brightness | ≥1200cd/m² |
| Viewing angle | H≥120° V≥120° |
| Min.viewing distance | 3m |
| Max.power consumption | 900W/m² |
| Avg.power consumption | 400 W/m² |
| Working voltage | 110~220VAC±15% |
| Interface | HUB75 |
| Colors | 16.7millon colors |
| Gray level | 14-16bits |
| Frame frequency | ≥60frames/s |
| Refresh rate | ≥60Hz |
| MTBF | ≥10000 hours |
| Lifespan | ≥100000 hours |
| Protective function |
Over-heat/Over-load /Power-down /Power-leakage /Lightning-protection etc. |
| Operating temperature | -10℃ ~ +40℃ |
| Operating humidity | 10-80% no condensation |
| Storage temperature | -20℃ ~ +60℃ |
| Storage humidity | 10-85% no condensation |
Control System Parameter:
| Video signal (with video processor) | AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP |
| Color temperature | Adjustable by software |
| Brightness level | 256 levels, automatic adjustment by software |
| Control way |
Computer, video-synchronous, real-time, off-line, wireless, internet etc. |

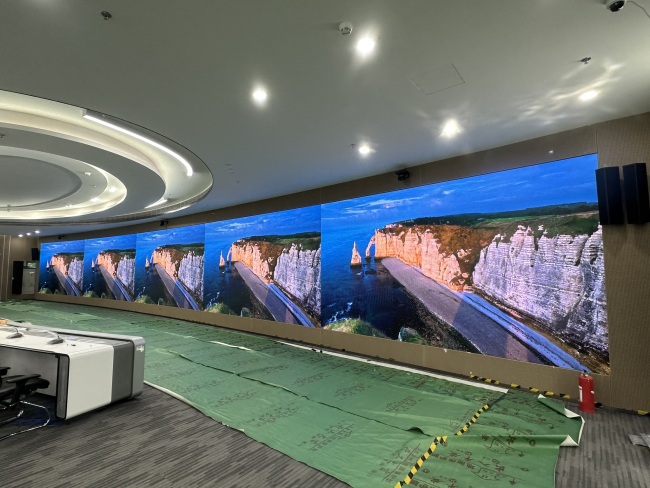

Our case
Features
1. 640x480 Die-casting Aluminum LED Panels, 80mm thickness, 7.2kg/pcs panel.
2. high gray scale, 5000:1 contrast ratio,16 bit gray level, 3840Hz refresh rate
3. seamless tiled display, <0.01mm.
Our Services:
1)Reply your inquiry in 24 working hours.
2)Experienced staffs answer all your query in fluent English,Spanish,French,German etc
3)Customized design is available,OEM & ODM are welcomed.
4)Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
5)Special discount and protection of sales area provided to our distributor.
6)Warmly welcome your visit in our company if available.
7)Warranty: 24 months, a little investment for longer warranty time.
