4K HD Fixed Outdoor P10 LED Screen 960X960MM Cabinet 8000nit High brightness
Outdoor LED displays are widely used in commercial advertising,sports events,transportation industry, education systems,stations,airports,shopping malls,hospitals,hotels,real estate markets,corporate management and other public service places,with powerful media display,information release,Creative display and other functions.
| LED Module | ||
|
|
pixel pitch | 10mm |
| module size | 320*160mm | |
| module resolution | 32*16 | |
| LED | SMD3535 | |
| Scan | 1/4scan,1/2 scan | |
| Application | Outdoor | |
| Weight | 0.5KG | |
| LED Cabinet conponent | ||
|
|
Cabinet Size |
640*640*70mm/960*960*130mm/ 1024*1024*130mm/1280*960*130mm |
| Cabinet resolution | The resolution according to the cabinet size | |
| module quantity | The module quantity according to the cabinet size | |
| LED driver | G-Energy/Meanwell 5v,40a/5v 60A | |
| Material | Sealed Iron Cabinet/Steel | |
| LED Screen | ||||
|
|
Pixel | 10000dots/Sqm | Continuous Working Hours | >72 hours |
| Ave power consumption | 230W/Sqm | Using Life | 100,000 hours | |
| Max power consumption | 580W/Sqm | MTBF | >10,000H | |
| Optimum Viewing Distance(m) | 6-100m | Scatter OOC Point | <0.01% | |
| Brightness | >6500cd | Continuous OOC Point | None | |
| Refresh Rate | 300---2440 frame/s | IP Grade | IP65/IP54 | |
| LED Drive mode | Constant Current | Working Temperature | -35C----+60C | |
| Display color | 17M——69G | Working Humidity | 10---90% | |
| Voltage | 100-240V | |||

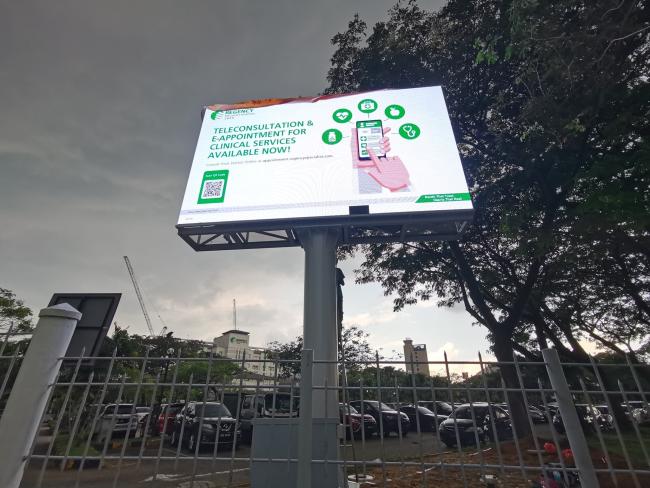

Our Case
Our service
1. We are the real manufacturer of LED display screen, we provide ODM & OEM service. We provide MOQ of 1 square meter.
2. We only use high quality production material, and every material will be tested strictly before production.
3. We are in service for you before order, during order and after order.
4. Our production line works 24 hours a day, we get goods ready as soon as possible for customers.
5. 72 hours non-stop aging test before shipment to make sure goods shipped out in the best condition.
6. We provide at least 2 years warranty for 4K HD led screen Outdoor fixed led wall front maintenance p10 module led tv display.
