960X960mm Outdoor LED Advertising Display Screen Board P6 High Brightness 6500nit
Product advantages 1. The box body adopts aerial plug connection, which is convenient and simple and saves time. 2. IP65 waterproof level on the front and back of the cabinet. 3. The flatness of the front and back of the box is high. 4, using good raw materials, KINGLING lamp module, lamp module, Mingwei power supply. 5, 3 years warranty, special design for special products. 6, 24 hours online after-sales protection
♦ Product specification
| outdoor SMD P6 | ||||||||||||||
| Lamp size | 3535 | |||||||||||||
| Resolution/mm | 6 | |||||||||||||
| Pixel configuration | RGB 3 in 1 | |||||||||||||
| Pixel density/pixels/m² | 27778/m² | |||||||||||||
| Module resolution | 32x32 | |||||||||||||
| Module size/mm | 192x192 | |||||||||||||
| View distance | ≥5m | |||||||||||||
| Single point brightness adjust | Can be added | |||||||||||||
| Single point color adjust | Can be added | |||||||||||||
| White balance brightness | >1800cd/㎡ | |||||||||||||
| Color temperature | 6500K-9500K | |||||||||||||
| Horizontal view angle | 120(degrees) | |||||||||||||
| Vertical view angle | 120(degrees) | |||||||||||||
| Signal Process bit | 10 or 14 bit | |||||||||||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km | |||||||||||||
| Driving mode | Constant driving current | |||||||||||||
| Scanning mode | 1/16 | |||||||||||||
| Frame rate | 60Hz | |||||||||||||
| Refresh frequency | >1200Hz | |||||||||||||
| Control mode | Computer synchronous | |||||||||||||
| Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
| Out of control point | <1/10000 | |||||||||||||
| Working hours | ≥72hours | |||||||||||||
| Mean Time Between Failure | >5000hours | |||||||||||||
| Life time | 100000hours | |||||||||||||
| Life-all-white(brightness halving) | 50000hours | |||||||||||||
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ | |||||||||||||
| Maximum power:/㎡ | <1100W | |||||||||||||
| Average power:/㎡ | <280W | |||||||||||||
| Self-check technology |
LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
| Remote monitoring |
Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
| Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
| Luminous point width between centres | Deviation<3% | |||||||||||||
| Brightness uniformity | <10% | |||||||||||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
| Contrast | (1000:1) | |||||||||||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
| Humidity(working) | working:10-95% | |||||||||||||
| Humidity(storing) | storing:10-95% | |||||||||||||

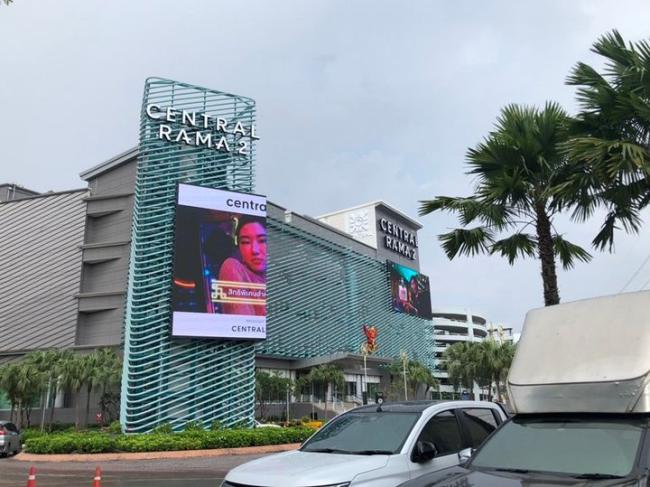

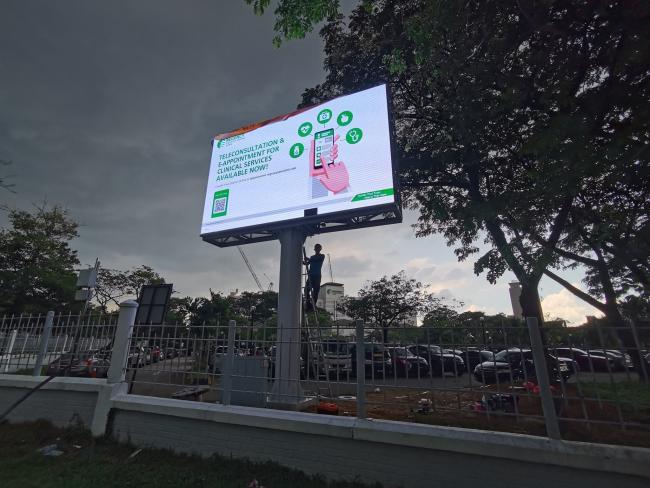

Our case
♦ Our advantages
Professional Manufacturer of led display
1. OEM service,No MOQ
2. Easy installation,regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
Outdoor P6 front service led display
1.High brightness and stable performance lead long lifespan and low power consumption.
2.Accurate color uniformity and smoother, flicker-free video displaying.
Outdoor module Life is long, Stable, Save, High brightness
1.High protective dust waterproof and leakage.
2.Protection grade IP65 cabinets guidance before and after the glue tank panel cover circuit module to ensure worry-free.
3.Lamp bead reverse polarity, higher brightness, face to face with fierce can clear display screen.
MOQ and Sample
1.We welcome sample order to test and check quality .Mixed samples are acceptable.
2.Low MOQ,1 piece for sample checking is available.
3.Please inform us formally before our production and confirm the design firstly based on our sample.
FAQ
Q1. Are you a factory or trading company?
A:We are a factory.
Q2. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3. What about the lead time?
A:Our products could be shipped by Sea, by Air or by Express. Which method to be used is based on the weight and size of the package and with consideration of customer's requirements.
By sea: 10-30 days;By air: 5-10 days ; By express: 3-6days.
Q4. What's the shipping way, shipping time?
A:Our products could be shipped by Sea, by Air or by Express. Which method to be used is based on the weight and size of the package and with consideration of customer's requirements.
By sea: 10-30 days;By air: 5-10 days ; By express: 3-6days.
