Hight Brightness P6 Outdoor LED Display Advertising Board 960x960mm Iron Cabinet
Outdoor advertising led display screen is designed and built to withstand adverse weather conditions and provide a truly breathtaking outdoor LED display option you can depend on.
- IP65 Waterproof Weather Rating
A fully rated outdoor product is key to guaranteeing the longevity of your outdoor advertising led display screen.
- High Brightness Display
The key to a quality outdoor advertising LED screen is variable brightness for any condition day or night. Meiyad Traditional advertising outdoor LED screen has brightness offerings between 6500-7500 Nit.
- Custom Sizing
Meiyad traditional outdoor advertising LED screen can be manufactured in multiple different cabinet sizes to best fit your unique outdoor LED display installation.
- Stable, Reliable Connections
Meiyad outdoor advertising LED display board utilizes data and power connections that are 100% water
tight allowing for stable and reliable connections between each outdoor LED display cabinet.
♦ Product specification
| outdoor SMD P6 | ||||||||||||||
| Resolution/mm | 6 | |||||||||||||
| Pixel configuration | 1R1G1B | |||||||||||||
| Pixel density/pixels/m² | 27778/m² | |||||||||||||
| Module resolution | 32*32 | |||||||||||||
| Cabinet size/mm | 576x576 | |||||||||||||
| View distance | 5-400m | |||||||||||||
| Single point brightness adjust | Can be added | |||||||||||||
| Single point color adjust | Can be added | |||||||||||||
| White balance brightness | >8000cd/㎡ | |||||||||||||
| Color temperature | 6500K-9500K | |||||||||||||
| Horizontal view angle | 120(degrees) | |||||||||||||
| Vertical view angle | 60(degrees) | |||||||||||||
| Signal Process bit | 10 or 16bit | |||||||||||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | |||||||||||||
| Driving mode | Constant driving current | |||||||||||||
| Scanning mode | (1/4) | |||||||||||||
| Frame rate | 60Hz | |||||||||||||
| Refresh frequency | >4200Hz | |||||||||||||
| Control mode | Computer synchronous | |||||||||||||
| Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
| Out of control point | <1/10000 | |||||||||||||
| Working hours | ≥72hours | |||||||||||||
| Mean Time Between Failure | >5000hours | |||||||||||||
| Life time | 100000hours | |||||||||||||
| Life-all-white(brightness halving) | 50000hours | |||||||||||||
| Environment temperature range | Operating temperature range: -20-45℃ | |||||||||||||
| Maximum power:/㎡ | <900W | |||||||||||||
| Average power:/㎡ | <350W | |||||||||||||
| Self-check technology |
LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
| Remote monitoring |
Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
| Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
| Luminous point width between centres | Deviation<3% | |||||||||||||
| Brightness uniformity | <10% | |||||||||||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
| Contrast | (1000:1) | |||||||||||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
| Humidity(working) | working:10-95% | |||||||||||||
| Humidity(storing) | storing:10-95% | |||||||||||||

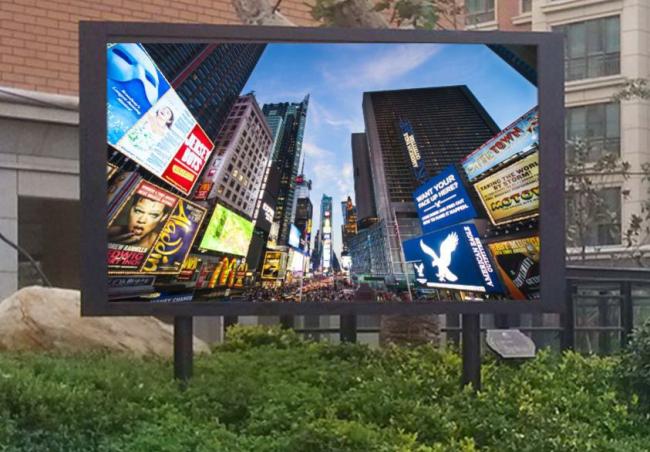

Our case
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
P6 outdoor led advertising screen product parameter
♦ Why choose us:
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
FAQ
Question 1: Can I get a sample order?
A:Yes, we welcome you give sample order to test and check quality.Mixed samples are acceptable.
Question 2: How do you ship the goods and how long does it take arrive??
A: We accord you order quantity ,usually we will ship by UPS, DHL, FEDEX or TNT ,EMS,. It usually takes 3-5 days,it will be arrived on time.
Question 3: How to proceed the order if I have logo to print??
A: We will give you the corresponding drawings to confirm, we will not mass production until you confirm the corresponding drawings.
Question 4: Do you offer guarantee for the products?
A: Yes, we offer two-five years guarantee for the products,I think it's a long warrant time.
