P3.91 LED Video Wall 500x500mm High Refresh 3840Hz Indoor Rental LED Screen
Price:
negotiation
MOQ:
16 sqm
Delivery Time:
3-16 working days
Brand:
SCXK
Product Description
Advantages:
1.Standard dimension,module size 250mm * 250mm, cabinet size 500mm * 500mm, compatible indoor P2.604/2.97/3.91 and outdoor P3.91/4.81.
2.High-precision die-cast aluminum cabinet, seamless unit box.
3.New design of hanging bar lock, one hand to fix two cabinets,anti-fool design to avoid loose cabinet caused by unintentional touch.
4.Total hard connection ,easy to take off the power supply and receiving card.
5.Module with touchable back screw , uncessary to prepare tool, easy to fix and take off modules by hand.
6.Corners with small protectors, protect pixel while moving.
Specifications
| Parameter | Value |
| Pixel Configuration | SMD2020 |
| Pixel pitch (mm) | 3.91 |
| Pixel matrix per panel | 64*64 |
| Pixel density (pixelsm) | 65410 |
| Cabinet Dimensions(L*W) mm | 500*500mm |
| Module Dimensions(L*W) mm | 250*250 |
| Panel material | Aluminum profile&iron&die-casting aluminum |
| Cabinet weight (kg/panel) | 7 |
| Colour grayscale (bit) | 12-16bit |
| Gray scale per colour (level) | 16384 |
| Refresh rate (hz) | 1920 |
| Driving type | 1/16 |
| Signal transmission distance (m) | cats cable:<100m single mode fiber:<10km |
| Brightness (nit) | 1200 |
| Optimal horizontal viewing angle (degree) | 160 |
| Optimal vertical viewing angle (degree | 160 |
| Ac input voltage (v) | Ac100-240v |
| Ac input frequency (hz) | 50/60 |
| Ac input power maximum value (wm) | 625 |
| Ac input power typical value (wm) | 150 |
| Storage temperature (℃) | -40-60 |
| Work temperature (℃) | 0-45 |
| IP rating (front/rear) | IP40/IP21 |
| Storage humidity (rh) | 10%-90% non -condensing |

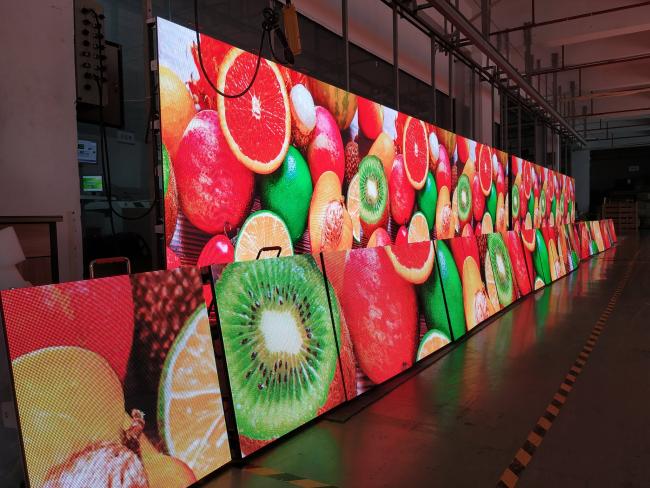

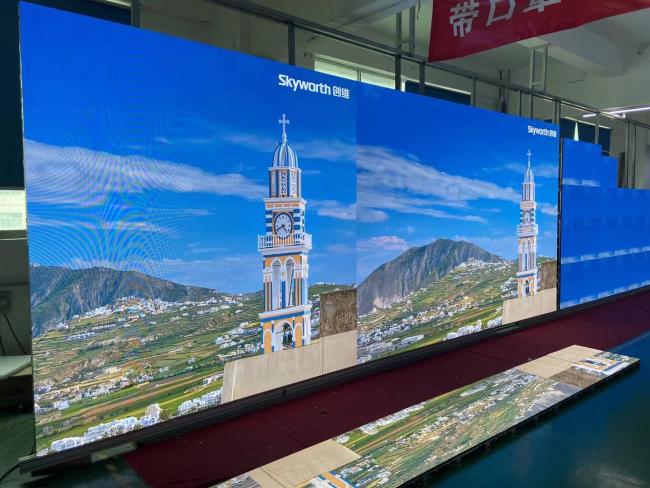

Our case
Features:
1. High refresh rate, >=3840HZ, which let the picture is vivider
2. All led panels have high strength corner protectors. Protect leds from damage during transportation and installation.
3. Convenient maintainance --- module front & rear service
4. Independent power supply box without wire
5. Support curve connection --- ±2.5°&5° concave & converse connection
1. High refresh rate, >=3840HZ, which let the picture is vivider
2. All led panels have high strength corner protectors. Protect leds from damage during transportation and installation.
3. Convenient maintainance --- module front & rear service
4. Independent power supply box without wire
5. Support curve connection --- ±2.5°&5° concave & converse connection
FAQ
Q1:Are you a factory or trading company? A;We are a direct factory,It is also a company integrating industry and trade.
Q2.what can you buy from us? A:LED Display,LED Module,LED Screen,LED Wall,LED Display Rental
Q3:What about the quality and the payment? A: We are also Alibaba Trade Assurance Gold Supplier.That means your payment, quality and lead time will be not a problem.We guarantee that the security of the transaction and our products are of best quality and reasonable price. Q4: What's the product warranty? A:All products here we offer 2 years' warranty.
Q5: What kind of packaging do you provide? A: We provide flight case, wooden case and carton.
