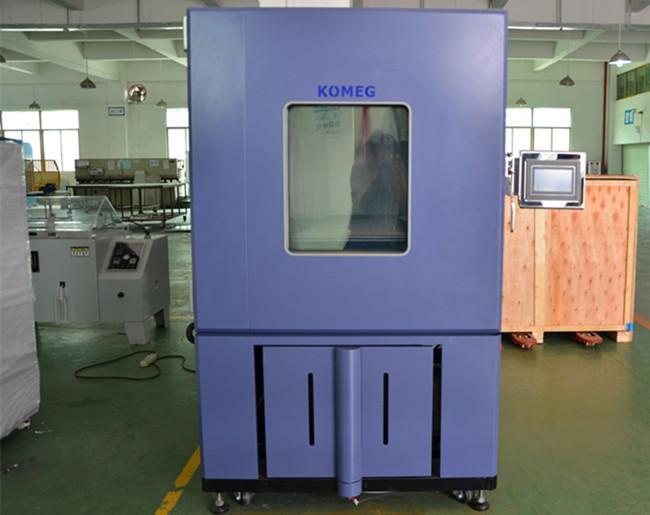

Environmental SUS304 Steel Simulate High And Low Temperature Test Chamber
SUS304 Steel 33% Energy-saving Quick Delivery High and Low Temperature Test Chamber
1. Explore Temperature Chambers by Type:
KMT-R Series, KMT-L Series, KMT-S Series
Simulate high and low temperature environments in Associated Environmental Systems bench top or floor model temperature chambers.
1) Working volume from 64 to 1000 cubic L.
2) Conform to commercial and military standards for high and low temperature tests.
3) Self-contained single-stage refrigeration systems support low temperatures to -158°F / -70°C.
4) Two-stage cascade refrigeration systems support low temperatures to -140°F/-60°C. The two separate closed refrigerant circuits each use a different refrigerant with its own compressor.
2. Material and Refrigeration system:
Interior material: Stainless Steel Plate SUS304#
Exterior material: Baked Painting Steel Plate or Stainless Steel SUS304#
Insulation material: Rigid polyurethane Foam and Glass Fiber Wool
Air Cooled (Water cooled Type is option)
Hermetic compressor, stag refrigeration system
Imported Tecumseh or Danfoss Compressor
3. Parameter Specifications:
| Model | KMH-408L | ||||
| 408L chamber volume | |||||
| Temp. range | -40°C ～150°C | ||||
| Display resolution | 0.1°C | ||||
| Temperature stability | High±0.5°C ,low ±1.0°C | ||||
| Temperature uniformity | ±2.0°C | ||||
| Heat up time | -40°C ～+100°C,within 45 min | ||||
| Pull down time | +20°C ～-40°C,within 60 min | ||||
| Interior Dimension(mm) | 700W*750H*800D | ||||
| Exterior Dimension(mm) | 980W*1940H*1740D | ||||
| Interior material | Stainless Steel Plate(SUS 304) | ||||
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | ||||
| Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | ||||
| Total power | 7KW(heater 3KW included) | ||||
| Max current | 17A | ||||
| Water Consumption | 1L/hr | ||||
| Ambient Temp. | +5°C ～+35°C | ||||
| Power Supply | AC 380V±10％ 50Hz ,3 phase 4 wires +Ground Wires | ||||
| Weight | 420KG | ||||
| Sight window size | 460*560mm | ||||
| Sample holder | 2 pcs | ||||
| Fittings | cable port(portΦ50mm)*1, chamber lamp*1, power cable *2m | ||||
| Safety device (standard) |
No fuse breaker,over pressure,over heat&over current protect,over temp. protect, over load protect for blower, dry heat protect |
||||
| Control System | Balanced Temperature & Humidity Control (BTHC)System | ||||
| Refrigeration system | Air Cooled (Water Cooled is option) | ||||
| Hermetic compressor | |||||
|
Single stage refrigeration system, CFC-Free refrigerant(HFC-507/HFC-23) |
|||||
| CFC-Free refrigerant(HFC-507/HFC-23) | |||||
| Controller | 7-inch LCD Touch Screen panel | ||||
| Operation model :Program or fix point running | |||||
| Memory capacity :120programs,1200steps, | |||||
| All repeat 999 cycles, part repeat 99 cycles | |||||
|
Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available |
|||||
4. Why KOMEG IS Your Right Choice?
Specialized in climatic test chamber since 1990
Main parts are imported famouse brand like Tecumseh, Danfoss, Bizter, ESK,Ranco,Castel,etc.
Passed ,CE,TUV,etc. third party certification
Recognized by Global 500 Enterprises like EMERSON, SIEMENS, Minolta, Epson, HUAWEI, TCL,etc
Environmental friendly, low energy consumption and easy maintenance
High cost-effective and steady delivery time
Experienced and trained staffs assure good service
