Rubber Ozone Aging Test Chamber Temperature And Humidity Test Chamber
Standard and Custom Burn-in Test Rooms the Temperature or Humidity Testing Performance as You Need
1. General description:
Ozone aging test chamber is mainly applied in rubber products testing such as vulcanized rubber, thermoplastic rubber, cable insulation sheathing products, intermittent static tensile dynamic tensile deformation, or deformation under dynamic stretching and static stretching alternating, confined to light with constant ozone concentration in the air and constant temperature chamber exposed to detection, scheduled on the specimen occurred from the specimen surface cracking or other properties of the degree of change, resistance to ozone in order to assess the rubber aging properties.
2. Application
Suitable for all kinds of electronic products,expecially for products with heating characteristics
Product and loading area should be separated
Large-scale production
3. Integral type of burn-in room
Features
●Combined insulation, PID &closed temperature control
●Temp. range: 40-70℃±3/±5℃,
●Temp. constancy: ±0.5℃
●Uniformity: ±3℃
●Insulation: with PU foam ( doors with double glazing ) insulation, so that the internal temperature is not subject to external factors, to achieve power saving effect
●Running test trolley, selection of layer height and size are in accordance with the requirements, convenient access, and easy product handling, easy to maintain.
●Computer monitoring system is optional.
●Noise level:≤75dB
Application
Suitable for all kinds of electronic products
Different size is flexible and selectable.
4. Detailed Description:
Application case 1: Burn-in room Cases in library group state
Application case 2:DC Fan aging box and monitoring system
Accessory:Sequence timer for burn in system
5. Features and Specification:
●Can set 8 group of timer value
●Man-machine interface control, easy to operate.
●Auto reset function
●With 10A loading capacity and can bear lager load by using solenoid switch load
●Buzzer alarm or warning lamp available.
●Data can be saved and will not disappeared when turn off the machine.
|
Specifications |
|
|
Interior dimensions(W*H*D) mm |
1500*1280*550 |
|
Exterior dimensions(W*H*D) mm |
1720*1980*750 |
|
Temp. range |
Room Temp. +20～+100℃ |
|
Temp. constancy |
±0.5℃ |
|
Temp. uniformity |
±3℃ |
|
Test. capacity |
88PCS/CYCLE(Custom made available) |
|
Dimension |
100W*100HJ*50D(MM) |
|
Test range |
FAN(full machines number) |
|
Voltage range |
3～50V |
|
Current range |
±5% |
|
Speed |
0-15000RPM,±8% |
|
The detection speed |
7-12sec/cycle |
|
Note: 1.the specifications can be customized according to customer requirements |
|

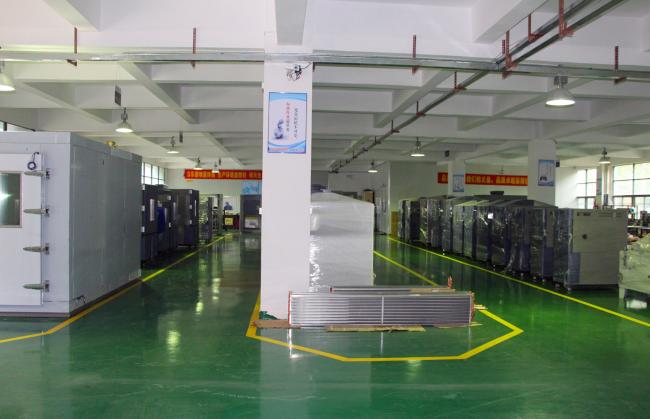

6. KOMEG Factory Tour:
