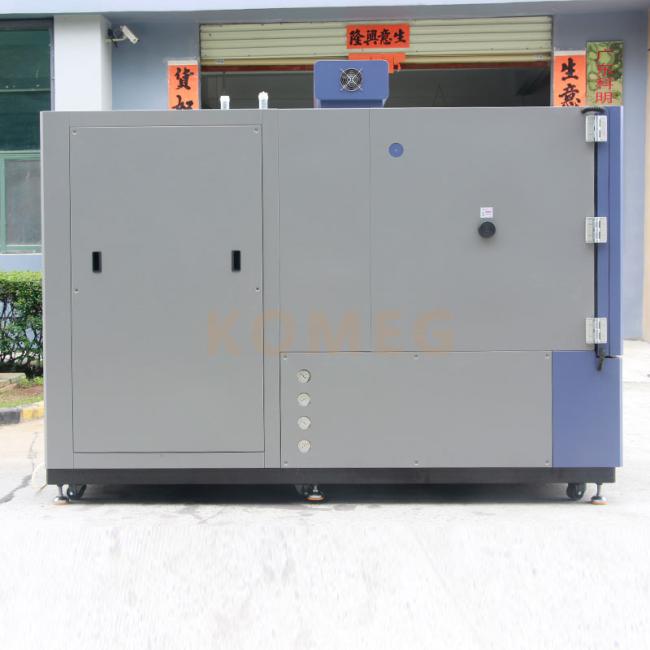

High Precision ESS Rapid Rate Environmental Test Chamber for Extreme Temperature Cycling

1. Advantages of Temperature Cycling:

Many independent studies have been conducted analyzing the effectiveness of various types of ESS processes. Conclusive data has been compiled by many manufacturers of electronic assemblies supporting today's thinking that temperature cycling is the most effective type of screening process.


While it has been demonstrated that both temperature cycling and random vibration together is the most effective screen in terms of identifying latent defects, if a single screen is to be used, temperature cycling is considered to be the single most effective screen in identifying latent defects. According to the ESSEH guidelines, temperature cycling regularly detected an average of two-thirds more latent product defects than with random vibration alone, which is ranked second most effective in identifying defects.


Stress uniformity is without question the most important aspect of the screening process. Temperature cycling provides the additional advantage of a uniform stress environment when air flow across the product is tightly controlled. All areas of the product must be subjected to an equal amount of stress throughout the screen profile. Some other methods of screening do not offer this uniformity across the product


2. Standards Implemented and Met

● GB-2423.1-2008(IEC68-2-1) test A: low-temperature test

● GB-2423.2-2008(IEC68-2-2) test B: high-temperature test

● GJB360.8-2009(MIL-STD.202F) Life of high temperature test

● GJBl50.3-2009(MIL-STD-810D) high-temperature test

● GJBl50.4-2009(MIL-STD-810D) low-temperature test

● GB2423.3-2008(IEC68-2-3) test Ca: constant damp heat test

● GB2423.4-2008(IEC68-2—30) test Db: Alternating hot and humid test method.

● GJBl50.9-2009(MIL-STD-810D) Damp heat test method.

4. Applications:

4.1 A. Who want his products more reliable in different environmental conditions
      B. Who plan to make the world a better place with his high quality and reliability products

4.2  Location: Lab, testing center,


4.3  Note:

Temperature adaptability test under the condition of rapid change, or gradient for electrical, electronic, instruments and other products or spare parts, particularly applies to environmental stress screening test(ESS)

5. Material:

Interior material: Stainless Steel Plate SUS304#

Exterior material: Baked Painting Steel Plate or Stainless Steel SUS304#

Insulation material: Rigid polyurethane Foam and Glass Fiber Wool
