Temperature Rapid Change Test Machine Water Cooled 225L 5 ºC /Min
Thermal Cycling Chamber Temperature Rapid Change Test Machine
This equipment is widely applied for electronic and electric products, components and materials by constant high low temperature, temperature change , rapid rate temperature change ,damp heat etc environmental simulation reliability test .
ESS Chamber Standard Compliance
1. ESS Chamber Manufacturing standard :
GB/T10586-2006 Specifications for damp heat chambers
GB/T10592-1989 Specification for low/high temperature test chambers
2. ESS Chamber Inspection Standard :
GB/T5170.2-1996 Inspection methods for basic parameters of environmental testing equipments for electric and electronic products. Temperature testing equipments;
GB/T5170.5-1996 Inspection on methods for basic parameters of environmental testing equipments for electric and electronic products--Damp heat testing equipments
3. ESS Chamber Testing Standard Compliance :
GB/T5170.2-2008 Inspection methods for environmental testing equipments for electric and electronic products-Temperature testing equipments
GB/T2423.1-2008(IEC60068-2-1:2007)Environmental testing - Part 2: Test methods - Tests A: Cold
GB/T2423.2-2008(IEC60068-2-2:2007)Environmental testing for electric and electronic products Test methods - Tests B:Dry Heat
GB/T2423.22 Environmental testing for electric and electronic products-Part 2:Test methods-Test N:Change of temperature
IEC 60068-2-14 2009 Environmental testing -- Part 2-14: Tests -- Test N: Change of temperature
GB/T5170.2-2008 Inspection methods for environmental testing equipments for electric and electronic products-Temperature testing equipments
Main Features:
Other Features:
Rational Construction and fast cooling rate
Frequency conversion control of wind speed.
Adopts international brand of imported parts for cooling system to improve operation reliability
Touch screen controller, friendly Man-Machine interface and safety device to ensure simple operation and easy maintenance.
| Model | ESS-SL |
| 225SL5 | |
| Working Chamber Volume(L) | 225L |
| Temp Rate of Change( ºC /Min) | 5 ºC /Min |
| Temperature Range | -70 ºC～+100 ºC( Rapid Temp Change -55 ºC～+85 ºC Full Linear Control) |
| Humidity Constancy | ±0.5 ºC |
| Temp Constancy | ±3.0 ºC |
| Exterior Material | Cold-rolled steel sheet (Rust proof & Plastic Spray treated )/ Stainless Steel |
| Interior Material | Stainless Steel Plate(SUS 304) |
| Insulation Material | Rigid Polyurethane Foam |
| Safety Devices | over pressure,over heat and over current protection for compressor, over temp. protection, |

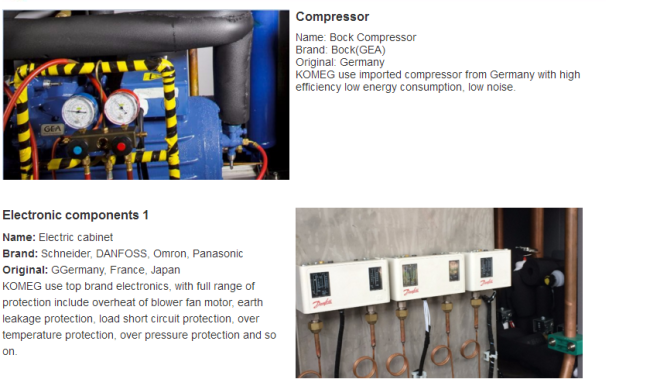

| Compressor | Semi-Hermetic Compressor |
| Cooling Mode | Water Cooled |
| Control system | Balanced Temperature & Humidity Control System(BTC type) |
| Heater | Iron-chrome wire heater |
| Blower | Centrifugal Blower |
| Observation Window | Glass incorporating heat generator |
| Temp Sensor | Pt-100 |

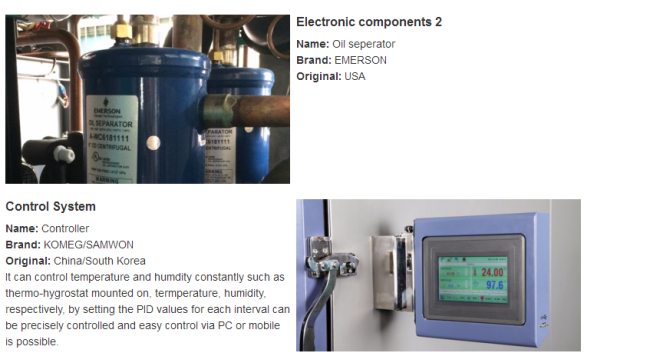

| Controller | Touch screen programmable controller |
| Ambient Temp. | +5ºC~+35ºC |
| Power | AC 380V/50Hz 3phase 5 wires+ Ground wire |
| Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available | |
