High Stability Accuracy Customized Environmental Climatic Test Chambers for PCBA
High Stability Accuracy Customized Environmental Climatic Test Chambers for PCBA
Application:
An environmental chamber, also called climatic chamber or climate chamber, is an enclosure used to test the effects of specified environmental conditions on biological items, industrial products, materials, and electronic devices and components.
Such a chamber can be used:
as a stand-alone test for environmental effects on test specimens;
as preparation of test specimens for further physical tests or chemical tests;
as environmental conditions for conducting testing of specimens;
Features:
a. High-quality appearance, the body adopted an arc shape, surface automobile coating technology processing, and mechanical explosion-proof handle, easy to operate, safe and reliable.
b. Rectangular multi-layer glass View window, the use of guinea pigs observed in the test window with anti-sweat heaters device prevents water gas condensate, knot, water droplets, LED lamps to keep the inside lighting.
c. Door frame with airtight packing, can be effectively isolated from the internal temperature of the leak
d. With external water supply system, convenient to supplement the cylinder water supply, and automatic recovery using.

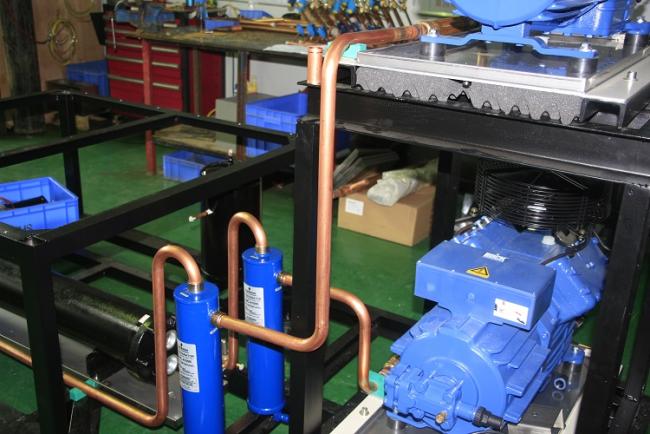

e. Compressor cycling system used France “Tecumseh” brand which can effectively remove condenser pipe and between capillary Lubricating oil and whole series adopt environmental protection refrigerant (R23, R404, R507)
f. Controller uses the imported LCD display screen, can display measured values (PV) and setting values (SV) time
g. Controller with multi-segment program editor and temperature and humidity can be fast (QUICK) or slope (SLOP) controlled.
h. Built-in mobile wheels allow easy movement and placed, with a strong positioning screw position.
Specifications for Climatic Test Chambers:
| Model | KMH-408R | KMH-408L | KMH-408S |
| 408L chamber volume | |||
| Temp. range | -20°C ～150°C | -40°C ～150°C | -70°C ～150°C |
| Display resolution | 0.1°C | ||
| Temperature stability | High±0.5°C ,low ±1.0°C | ||
| Temperature uniformity | ±2.0°C | ||
| Heat up time | -20°C ～+100°C, within 35 min | ' -40°C ～+100°C, within 45 min | ' -70°C ～+100°C, within 60 min |
| Pull down time | -20°C ～-20°C, within 45 min | ' +20°C ～-40°C, within 60 min | ' +20°C ～-70°C, within 80 min |
| Humidity range | 20～98％R.H,(standard), '10～98％R.H,(with humidifier) | ||
| Humidity constancy | ±2.5％R.H | ||
| Humidity uniformity | ±3.0％R.H | ||
| Interior Dimension(mm) | 700W*750H*800D | ||
| Exterior Dimension(mm) | 980W*1940H*1740D | ||
| Interior material | Stainless Steel Plate(SUS 304) | ||
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | ||
| Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | ||
| Total power | 6KW(heater 3KW included) | '7KW(heater 3KW included) | '9KW(heater 3KW included) |
| Max current | 17A | 17A | 19A |
| Water Consumption | 1L/hr | 1L/hr | 1L/hr |
| Ambient Temp. | +5°C ～+35°C | ||
| Power Supply | AC 380V±10％ 50Hz ,3 phase 4 wires +Ground Wires | ||
| Weight | 400KG | 420KG | 450KG |
| Sight window size | 460*560mm | ||
| Sample holder | 2 pcs | ||
| Fittings | cable port(portΦ50mm)*1, chamber lamp*1, power cable *2m | ||
| Safety device (standard) | No fuse breaker(NFB), over pressure, over heat & over current protect, over temp. protect, over load protect for blower, dry heat protect | ||
| Control System | Balanced Temperature & Humidity Control (BTHC)System | ||
| Refrigeration system | Air Cooled (Water Cooled is option) | ||
| Hermetic compressor | |||
| Hermetic compressor Single stage refrigeration system, CFC-Free refrigerant(HFC-507/HFC-23) | |||
| CFC-Free refrigerant(HFC-507/HFC-23) | |||
| Controller | 7-inch LCD Touch Screen panel | ||
| Operation model :Program or fix point running | |||
| Memory capacity :120programs,1200steps, | |||
| All repeat 999 cycles, part repeat 99 cycles | |||
| Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available | |||
Standard Met and Implemented:
GB/Bb T2423.2-89 high temperature test method
GB2423.1-89 test A: low temperature test method 6
GJB150.4-1986 test at low temperature
IEC60068-2-1 low temperature test method
IEC60068-2-38 temperature cycle
IEC60068-2-78 constant humidity temperature
MIL - STD - 202G - 103B humidity test
IEC60068-2-30 humidity temperature cycle
GB/T2423.3 constant humidity heat test method
Advantages:
Shorten Product Development Period
Increase Customers' Confidence and Loyalty
Ensure Product Quality & Reliability
Forecast Life Expectancy
Reduce Costs of Development
Increase Profitability and Brand Value for both users and their clients.
Reduce Frequency and Labor Cost of After Sales Service
Packaging:
Programmable Climatic Test Chambers are covered with air bubble film before put them into the strong plywood case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, crash-proof, etc.
