Programmable laboratory temperature humidity chamber used in aerospace

Price Negotiable
Price: 6000-15000USD / SET
MOQ: 1 SET
Delivery Time: 20 working days
Brand: KOMEG
Product Description

Certifiedprogrammable Laboratory environmental chamber used in Aerospace


1. Application:

An environmental chamber, also called climatic chamber or climate chamber, is an enclosure used to test the effects of specified environmental conditions on biological items, industrial products, materials, and electronic devices and components.
Such a chamber can be used:
as a stand-alone test for environmental effects on test specimens;
as preparation of test specimens for further physical tests or chemical tests;
as environmental conditions for conducting testing of specimens;



2. Products CE Certificate and Features:

1) CE approved with 1 year warranty
2) 33% energy saving than 2rd generation of KOMEG products.
3) Working hours up to 4,320 hours testing without downtime.
4) The ideal simulation test chamber for all heat and cold testing between -70 ºC and 150 ºC
5) Well-suited for reliability testing based on current test standards in the temperature range of -70 °C to 150 °C and 20% to 98% RH.
6) Meet all requirements for extreme testing and low temperature alternating




3. KMH-L Series:


1) The ideal simulation test chamber for all heat and cold testing between -40 ºC and 180 ºC temperature range
2)Well-suited for reliability testing based on current test standards in the temperature range of -40 °C to 180 °C and 10% to 98% RH.
3) Meet all requirements for extreme testing and low temperature alternating climate profiles from -70 °C - 180 °C with humidity





4. Main Technical Specifications Quick Know:

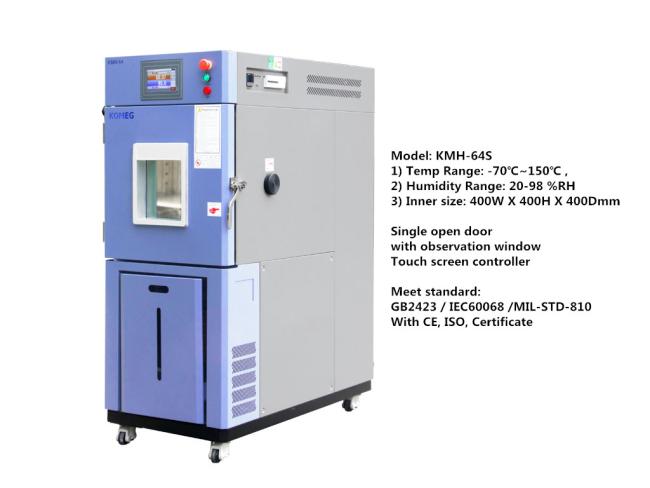

ModelKMH-64S
64L chamber volume
Temp. range-70°C ~150°C
Display resolution0.1°C
Temperature stabilityHigh±0.5°C ,low ±1.0°C
Temperature uniformity±2.0°C
Heat up time-70°C ~+100°C,within 60 min
Pull down time+20°C ~-70°C,within 80 min
Humidity range20~98%R.H,(standard), '10~98%R.H,(with humidifier)
Humidity constancy±2.5%R.H
Humidity uniformity±3.0%R.H
Interior Dimension(mm)400W X 400H X 400D
Exterior Dimension(mm)600W X 1526H X 1200D
Interior materialStainless Steel Plate(SUS 304)
Exterior materialBaked Painting Steel Or Stainless steel(SUS304)
Insulation materialRigid polyurethane Foam and Glass Fiber Wool
Total power5.2KW(heater 2KW included)
Max current12.5A
Water Consumption0.35L/hr
Ambient Temp.+5°C ~+35°C
Power SupplyAC 380V±10% 50Hz ,3 phase 4 wires +Ground Wires
Weight200KG
Sight window size215*230mm
Sample holder2 pcs
Fittingscable port(portΦ50mm)*1, chamber lamp*1, power cable *2m
Safety device (standard)No fuse breaker,over pressure,over heat&over current protect,over temp. protect, over load protect for blower, dry heat protect
Control SystemBalanced Temperature & Humidity Control (BTHC)System
Refrigeration systemAir Cooled (Water Cooled is option)
Hermetic compressor
Hermetic compressor
Single stage refrigeration system,
CFC-Free refrigerant(HFC-507/HFC-23)
CFC-Free refrigerant(HFC-507/HFC-23)
Controller7-inch LCD Touch Screen panel
Operation model :Program or fix point running
Memory capacity :120programs,1200steps,
All repeat 999 cycles, part repeat 99 cycles
Note: 1. We reserve the right to change specifications without prior notice
2. Customized sizes and configurations available

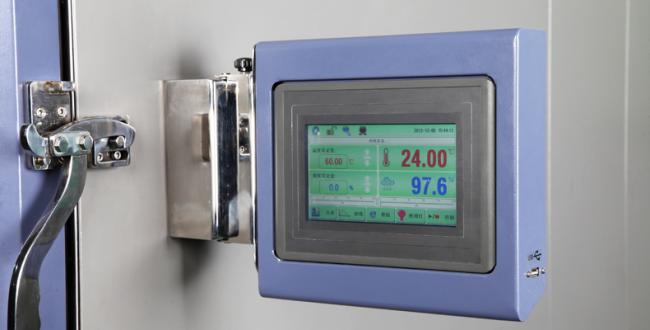

5.  LCD controller:


6. Why Choose KOMEG?

Over 26 Years' Experience

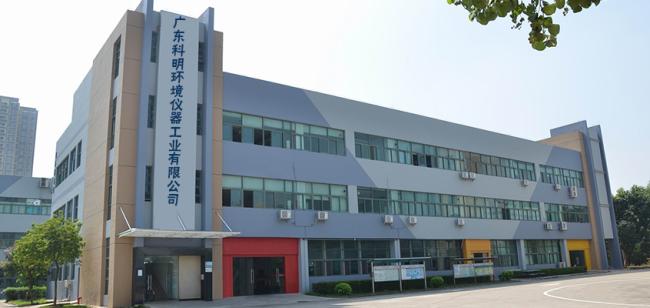

Komeg has been the brand of Komeg Technology Industrial since 1990. We manufacture environmental simulation test equipment for quality-conscious customers. Our factory is located in Dongguan, covering an area of 5,000 square meters, with over 52 employees including 26 R&D engineers.
