Professional high quality burn-in chamber designed for led light testing
Professional high quality burn-in chamber designed for led light testing

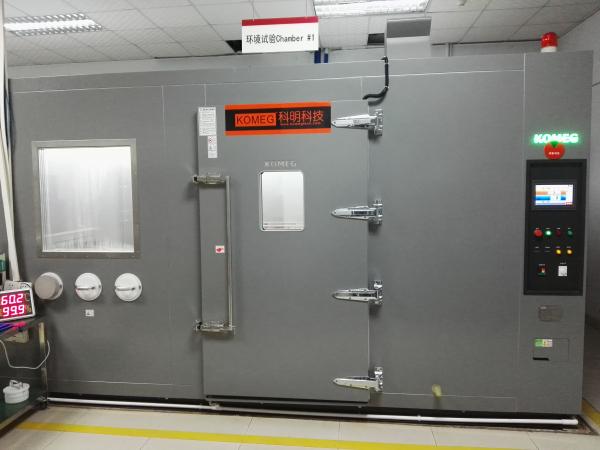

Aging testing chamber/equipments (burn-in room/ chamber)
Suitable for semi-finished & finished products test and cull failure parts. Promote the quality and reliability of products.
The machine can promote the increase of sulfur rubber deterioration, to calculate the change rate of tensile and elongation before and after heat. It’s generally thought that test for one day at 70°C, in theory as exposed to the atmosphere for 6 months.
Anti-yellowing: this machine stimulates the atmosphere environment, driven by the sun ultraviolet radiation. It’s generally thought that the appearance change at 50°C for 9 hours, in theory as exposed to atmosphere for 6 months.
Specifications:
| Specifications | |
| Interior dimensions(W*H*D) mm | 1500*1280*550 |
| Exterior dimensions(W*H*D) mm | 1720*1980*750 |
| Temp. range | Room Temp. +20～+100℃ |
| Temp. constancy | ±0.5℃ |
| Temp. uniformity | ±3℃ |
| Test. capacity | 88PCS/CYCLE(Custom made available) |
| Dimension | 100W*100HJ*50D(MM) |
| Test range | FAN(full machines number) |
| Voltage range | 3～50V |
| Current range | ±5% |
| Speed | 0-15000RPM,±8% |
| The detection speed | 7-12sec/cycle |
| Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available |
|
Features
●Separate the product and loading area, easy to control temperature and maintain.
●Temp. range: 40-70℃±3/±5℃,
●Temp. constancy: ±0.5℃
●Uniformity: ±3℃
●Test frame materials: painted stainless steel or a combination of forming aluminum
●Insulation: with PU foam ( doors with double glazing ) insulation, so that the internal temperature is not subject to external factors, to achieve power saving effect
●Product hierarchy placement, Selection of layer height in accordance with the requirements, convenient access
●Computer monitoring system is optional.
●Noise level:≤65dB
Packaging:
Climatic thermal shock test chamber are covered with air bubble film before put them into the strong plywoodcase, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, crash-proof, etc.
Why Choose KOMEG?
KOMEG is a well-established Environmental testing equipment company, with over 26 years’ experience in developing, and building a range of specialized Instruments. These include climatic test chambers, thermal shock test chambers, walk-in chambers, burn-in rooms,aging test chambers, drying ovens, salt spray testers and medical laboratory equipment etc.
Now our products are widely used in some well-known companies, such as , UL NZ, STC in Hong Kong, and in many universities in China, such as BUAA, PKU, etc.
We aim at realizing and keeping better design, better function and high quality. We choose imported one for important parts, for example, the compressor we use France's
Tecumseh and German's Bock, the oil seperator we use Alco and ESK, the evaporator, condense and expansion valve we use Denmark's Danfoss, the relayset we use France's Schneider and Japan's Omron and so on.
