Low Temperature High Altitude Test Chamber for Airpace condition simulating
Low Temperature High Altitude Test Chamber for Airpace condition simulating
Applications:
Simulating altitude/vacuum and temperature for combined environmental testing
KOMEG Altitude Chambers combine temperature and altitude with optional humidity to test basic components or sub-assemblies for a variety of industries. Standard altitude chambers simulate altitude up to 100,000 feet (8.2 Torr) and higher levels optional up to 200,000 feet (.13 Torr). Optional extended ranges are also available to simulate sea level testing when your site is significantly above sea level.
Brief introduction
high and low temperature low pressure chamber for aviation, aerospace, electronics, defense, scientific research, automobile and motorcycle industries such as electrical products, materials, components, equipment, temperature, humidity, low air pressure and other single or complex environment test under simulated conditions, in order to develop the test under environmental conditions of performance, conduct an analysis and evaluation.
Details
high and low temperature low pressure chamber for aviation, aerospace, electronics, defense, scientific research, automobile and motorcycle industries such as electrical products, materials, components, equipment, temperature, humidity, low air pressure and other single or complex environment test under simulated conditions, in order to develop the test under environmental conditions of performance, conduct an analysis and evaluation.
Features:
Disassembled structure; shell is made of high-quality cold-rolled steel sheet after acid-cleaning electrostatic spray, the inner chamber made of SUS304 # high-quality stainless steel; original international brands powerful and efficient industrial chillers (group) and high-quality refrigeration parts, using R404A, R23 refrigerants; imported German Siemens PLC Chinese color LCD touch screen programmable intelligent temperature and humidity control.
Benefits
Simple HMI operation
Easy operation and maintenance
Dual purpose for greater ROI
Heavy-duty construction for harsh testing
Robust Vacuum system for reliability

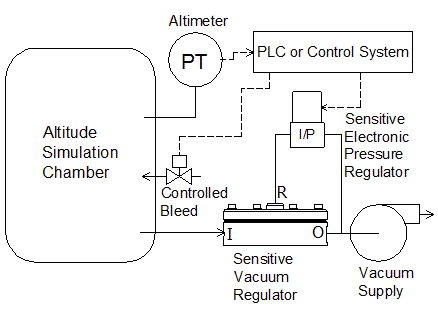

Altitude chamber working principle

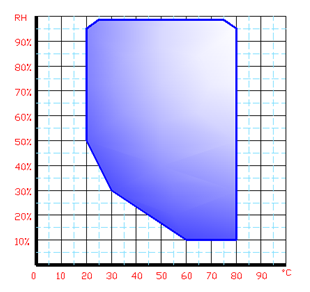

Temperature and humidity range chart

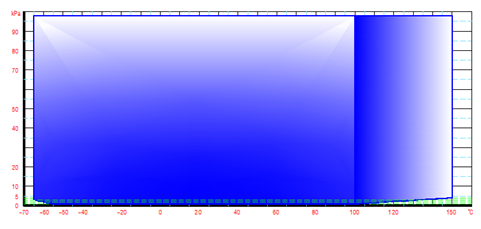

Temperature and pressure range chart
Standards Implement and Met
GB11159-89 GB10590-89 GB15091-89
GB/T2423.25-1992 GB/T2423.26-1992 GJB150.0-86
Specifications
|
Model |
KU-504L |
|
|
Inner Size (D*W*H)mm |
800D*700W*900H |
|
|
Capacity(KW) |
11 |
|
|
Chamber Volume(L) |
504 |
|
|
Performance |
Temp range |
-40ºC~+150ºC,-140ºF~+302ºF |
|
Temp constancy |
±0.5% |
|
|
Temp deviation |
≥100ºC, ±3.0ºC(at constant pressure with empty load) |
|
|
<100ºC, ±2.0ºC(at constant pressure with empty load) |
||
|
Cooling rate |
0.7ºC~1.0ºC/min(Overall average) |
|
|
Pressure range |
Constant pressure ~1kPa |
|
|
Pressure constancy |
When ≥40kPa, ±2kPa, 4kPa~40pKa ±0.5kPa, when≤4kPa, ±0.1kPa |
|
|
Depressurization rate |
Constant pressure~1kPa≤30mins(Normal temp) |
|
|
Pressure recovery rate |
10kPa/Min(adjustable) |
|
|
Material |
Exterior material |
Cold-rolled steel sheet(Rust proof&Plastic Spray treated)/Stainless Steel plate |
|
Interior material |
Stainless steel(SUS304) |
|
|
Pressurized parts |
High quality steel plate(Rust proof & Plastic spray treated) |
|
|
Insulation material |
High quality glass wool |
|
|
Cooling System |
Compressor |
Semi-Hermetic Compressor |
|
Cooling Mode |
Water cooled |
|
|
Temp regulating method |
Balanced Temperature & Humidity Control System(BTHC) |
|
|
Pump |
Rotary vane type vacuum pump |
|
|
Heater |
Iron-chrome wire heater |
|
|
Sight window |
Circular viewing glass incorporating heat generator |
|
|
Temp Sensor |
Pt-100 |
|
|
Controller |
Touch Screen Controller |
|
|
Safety Devices |
Over pressure, over heat and over current protection for compressor, over temp. protection, over load protection for blower,Hydraulic and Water lack Protection, leakage protection, phase-lack protection, Pump failure alarm |
|
|
Standard Accessory |
Sight window, Cable Port( 1 located on the left side), Baffle, Baffle frame*2 |
|
|
Power |
AC380V/50Hz, 3Phase 5 wires+ Ground Wire. |
|
|
Note: 1. We reserve the right to change specifications without prior notice; 2. Customized sizes and configurations available |
||
