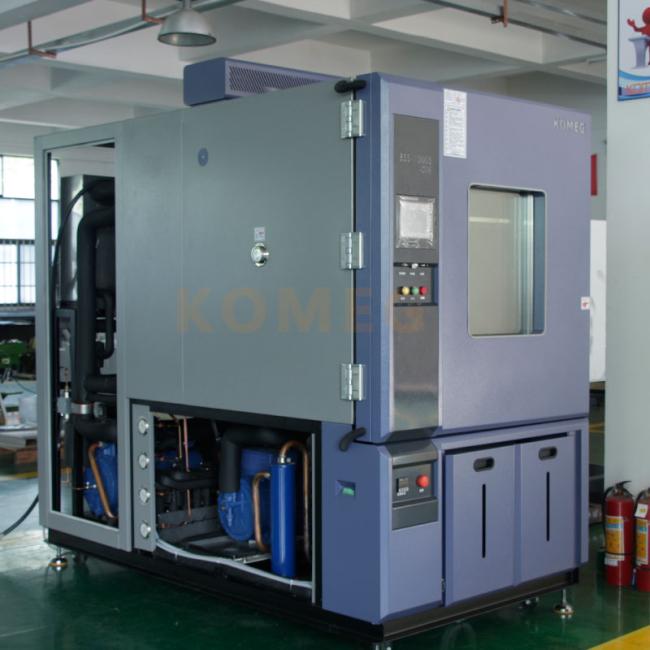

7 Inch Digital Touch Screen Thermal Cycling Chamber for Photovoltaic & Solar Panel


Advantages:

Rational Construction and fast cooling rate
Frequency conversion control of wind speed.
Adopts international brand of imported parts for cooling system to improve operation reliability
Touch screen controller, friendly Man-Machine interface and safety device to ensure simple operation and easy maintenance.


Standards Implemented and Met

GB10592-89 Technical requirements for high and low temperature test chamber
GB2423.1-1989 Low temperature test
GB2423.2-1989 High temperature test mode

Structure:
Overall structure, new test chamber designed very easy to operation and maintenance:
Water and electricity system separation design;
External humidifying design;
Three levels of overheat protection, easy access for refrigeration servicing, etc.


Material:

Interior material: Stainless Steel Plate SUS304#
Exterior material: Baked Painting Steel Plate or Stainless Steel SUS304#
Insulation material: Rigid polyurethane Foam and Glass Fiber Wool


Controller:

7 inch Digital Touch Screen

127 program, running for extremely long time 999 hours per segment, maximum 3200 times circulation
support RS485,LAN (internet access), GPRS (mobile phone) etc. communication mode. Convenient for remote monitoring and data sampling.


Parts and its brands:




Standrad Accessories:
Sight window *1 (Adiabatic glass window)
cable port(diameter 50mm)*2,
Samples shelves *2 sets
Chamber lamp *1
Power cable: 2 meters long


Specifications




Function and Features

a. The ESS Test Chamber is mainly used in testing the adaptability of electronics, electrical appliances, food, automobile, rubber and plastic, metal and other products, parts and materials in the high and low temperature alternating hot and humid environment when storage, transport and using；

b. It is an reliable test equipment for all kinds of electronic, electrical, electronics, plastics raw materials and devices to do testing such as cold, heat, moisture, resistance to dry and the quality control ；

c. The new perfect design, the appearance of high texture level, the system extracts Japan, West Germany, the essence of design and manufacture of advanced technology.

d. Balanced temperature humidity control system (BTHC), to PID mode control SSR, so that heated humidification system was equal to heat loss capacity, it could be used long-term stability;

e. All-capillary, automatic load capacity adjustment system technology, more expansion valve system more stable and reliable, precise temperature and humidity control, heating and cooling rate of rapid, steady, uniform, saving valuable time for users.




Knowledge of ESS:

Environmental stress screening (ESS) refers to the process of exposing a newly manufactured or repaired product or component (typically electronic) to stresses such as thermal cycling and vibration in order to force latent defects to manifest themselves by permanent or catastrophic failure during the screening process. The surviving population, upon completion of screening, can be assumed to have a higher reliability than a similar unscreened population.

Developed to help electronics manufacturers detect product defects and production flaws, ESS is widely used in military and aerospace applications, less so for commercial products. The tests need not be elaborate, for example, switching an electronic or electrical system on and off a few times may be enough to catch some simple defects that would otherwise be encountered by the end user very soon after the product was first used. Tests typically include the following:

• Temperature variations
• Vibration tests
• Pressure
• Flexibility tests

ESS can be performed as part of the manufacturing process or it can be used in new product qualification testing.
An ESS system usually consists of a test chamber, controller, fixturing, interconnect and wiring, and a functional tester. These systems can be purchased from a variety of companies in the environmental test industry.
The stress screening from this process will help find infant mortality in the product. Finding these failures before the product reaches the customer yields better quality and lower warranty expenses. Associated military terminology includes an operational requirements document (ORD) and on-going reliability testing (ORT).

 Our Range of production includes:
Temperature and temperature/RH test chambers
Low energy consumption climatic chambers
Vibration test chambers
ESS (Environmental Stress Screening) chambers
Corrosion test chambers (salt spray)
Thermal shock test chambers
Ovens
Solar/Photovoltaic Module test chambers
Modular walk-in chambers
Walk-in chambers to test big specimen (vehicles, photovoltaic modules, satellites antennas, etc…)
Combined high performance test chambers (temperature, RH, vacuum and vibrations)
